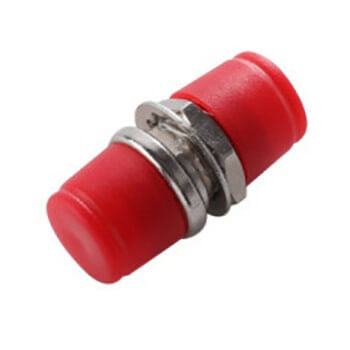

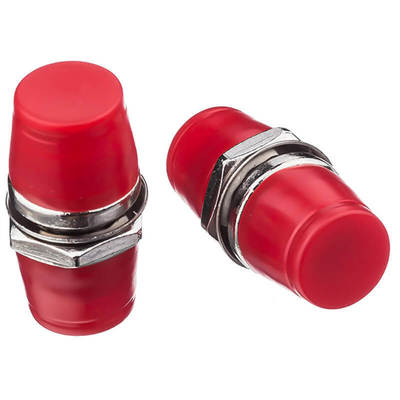

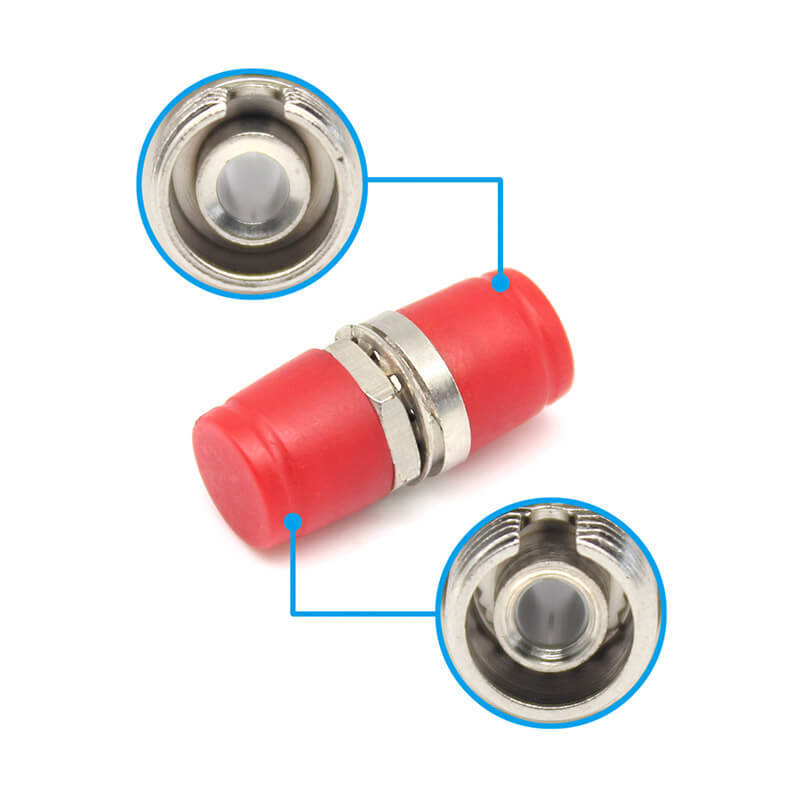

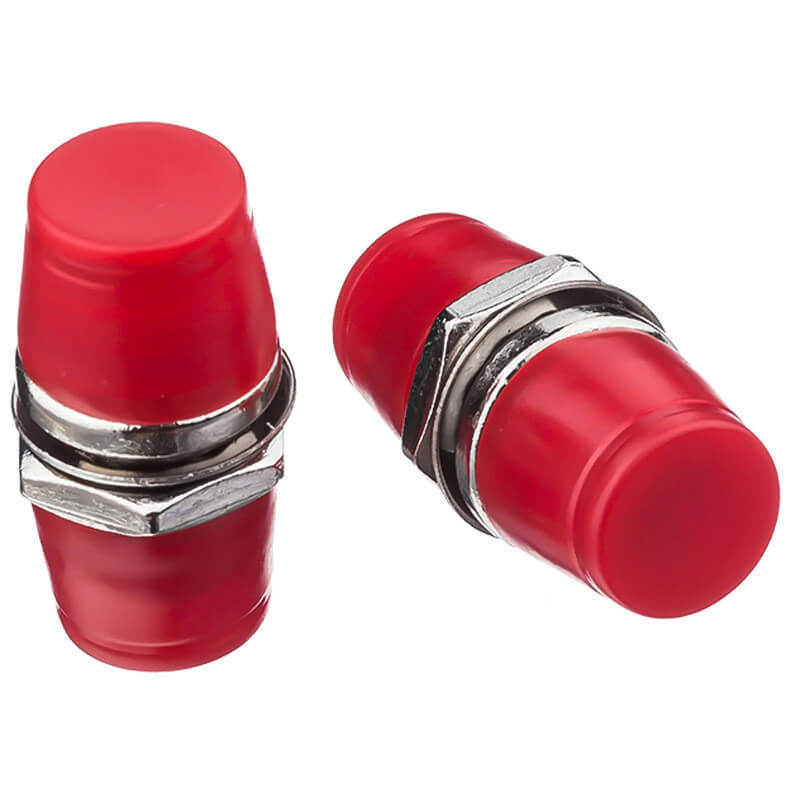

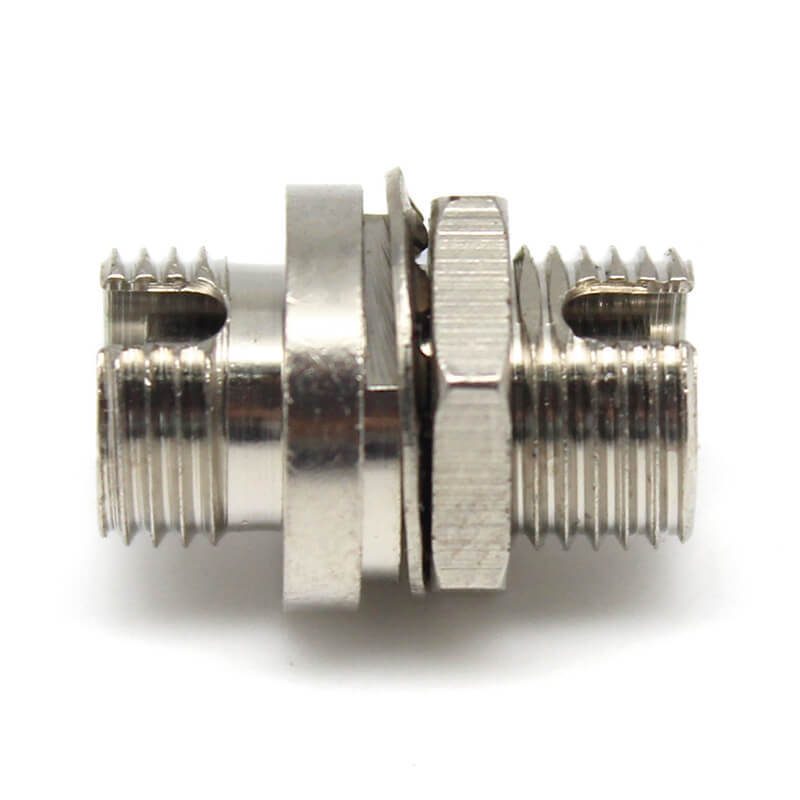

FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles

FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles
FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles

Large Image :  FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles

Product Details:
Place of Origin: China
Brand Name: DOWELL
Model Number: DW-FUS-D
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Delivery Time: 7-15 days
Payment Terms: T/T
Supply Ability: 1000PCS per 7 days
Contact Now

FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles

Description
Insertion Lose: 0.2 DB (Zr. Ceramic) Durability: 0.2 DB (500 Cycle Passed)
Storage Temp.: - 40°C To +85°C Humidity: 95% RH (Non Packaging)
Loading Test: ≥ 70 N Insert And Draw Frequency: ≥ 500 Times
Highlight:

FC UPC fiber optic adapter

,

D type fiber adapter 0.2dB loss

,

fiber optic adapter 500 cycles

FC UPC D Type Fiber Optic Adapter For Multimode Singlemode Cables
Fiber Optic FC UPC D Type Adapter
Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad). Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables.
Specification
Insertion Lose 0.2 dB (Zr. Ceramic) Durability 0.2 dB (500 Cycle Passed)
Storage Temp. -40°C to +85°C Humidity 95% RH (Non Packaging)
Loading Test ≥ 70 N Insert and Draw Frequency ≥ 500 times
Features
  • Double the capacity, perfect space saving solution
  • Small size, large capacity
  • High return loss, Low insertion loss
  • Push-and-pull structure, convenient for operation
  • Split zirconia (ceramic) ferrule is adopted
  • Usually mounted in a distribution panel or wall box
  • The adapters are color coded allowing easy identification of the adapter type
  • Available with single-core & multi-core patch cords and pigtails
Application
  • CATV System
  • Telecommunications
  • Optical Networks
  • Testing / Measurement Instruments
  • Fiber To the Home
FC UPC D Type Fiber Optic Adapter 0.2dB Loss 500 Cycles 0
