Detail Information

Insertion Loss:	≤0. 50dB	Return Loss:	≥55.0dB
Torsion Of Optical Cable:	≥15N	Mechanical Durability:	1000 Cycles
End Face Performance:	Conform To YD T 2341.1-2011	Cable Type:	2×3.0mm, 2×5.0mm Flat; Round 3.0mm, 2.0mm
Highlight:	FTTH fast connector fiber optic , FTTP fast connector fiber optic , Networks fast connector fiber optic

Product Description

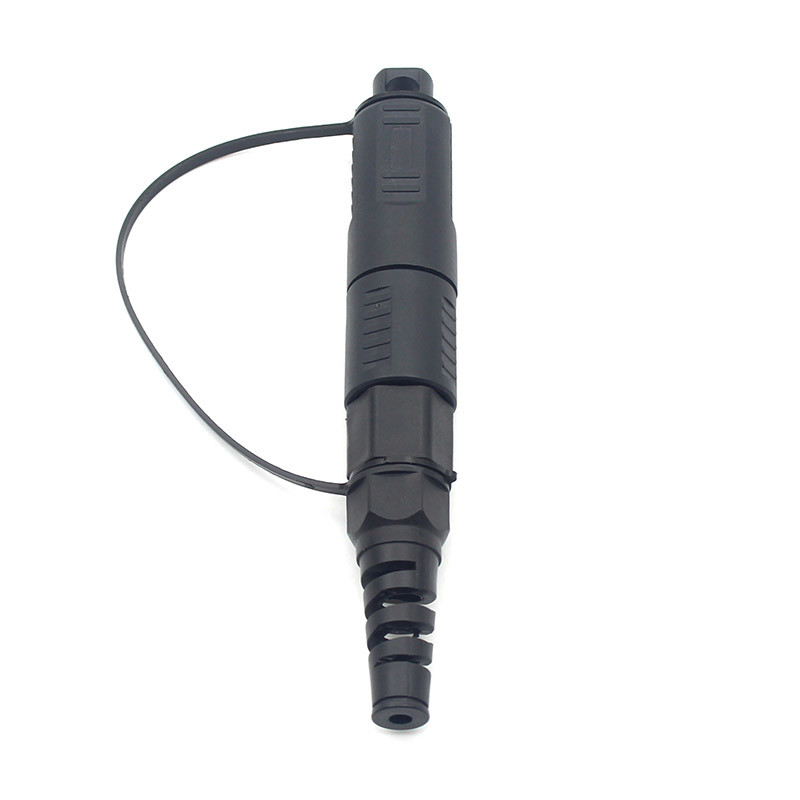

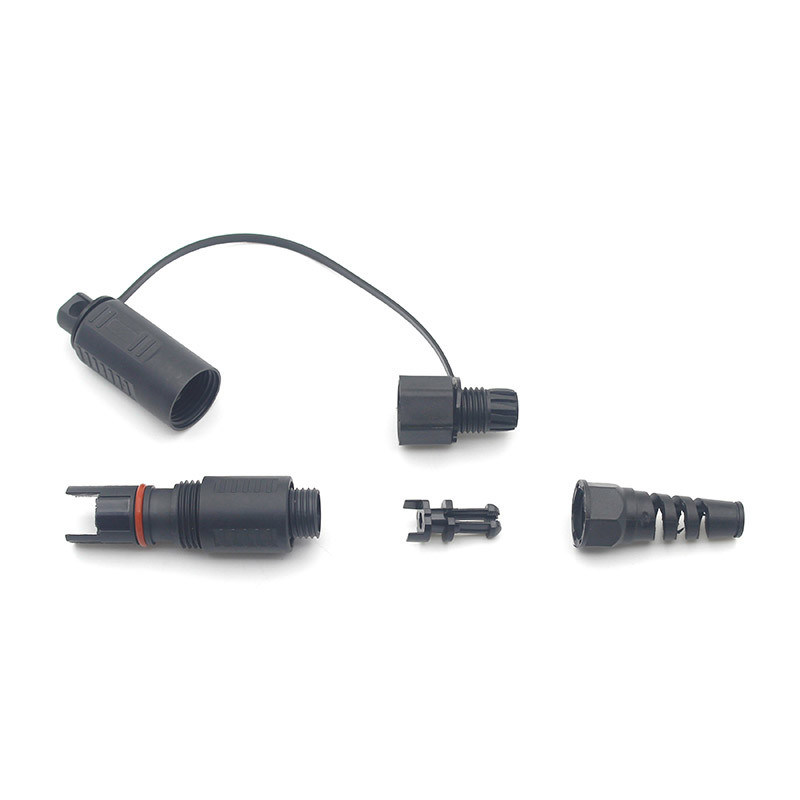

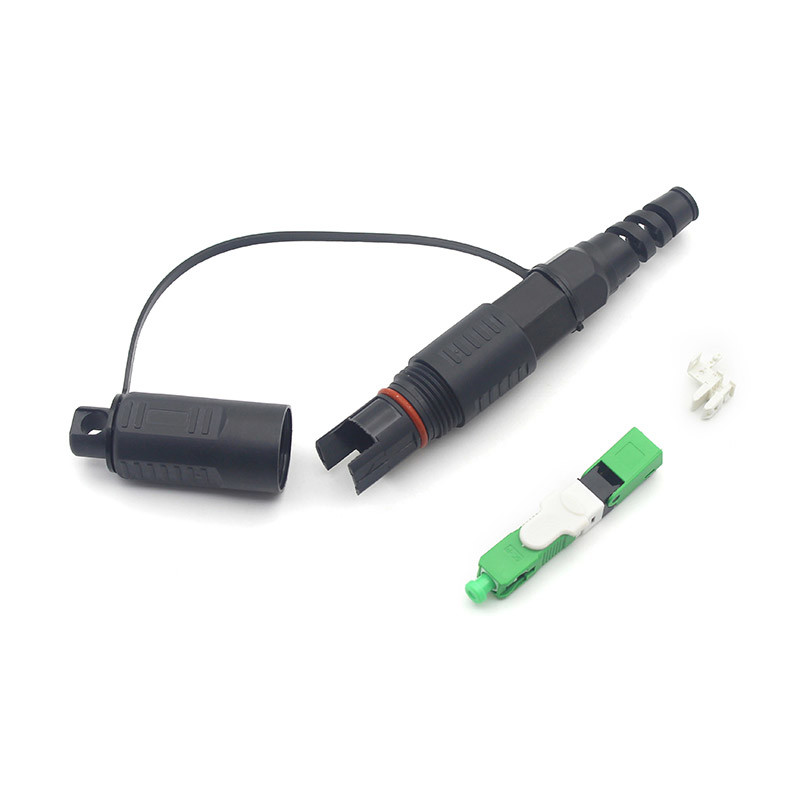

Corning Optitap SC APC Waterproof Fast Connector Pre-terminated Reinforced Fiber optic connector

The OptiTap SC APC Field Installable Reinforced Waterproof Fiber Optic Connector is a versatile solution designed for outdoor fiber optic networks. Supporting a wide range of cable types, including flat and round drop cables, it is fully compatible with MST terminal boxes and Corning OptiTap systems. This waterproof and durable connector offers a robust design for reliable performance in extreme environmental conditions, making it the perfect choice for FTTA, broadband, and telecom applications. Its compact size, blind-mating mechanism, and ease of installation make it ideal for both new installations and quick field repairs.

Specification:

Item	Specification
Cable Type	2×3.0mm, 2×5.0mm flat; round 3.0mm, 2.0mm
End face performance	Conform to YD T 2341.1-2011
Insertion Loss	≤0. 0dB
Return Loss	≥55.0dB
Mechanical Durability	1000 cycles
2.0x3.0mm (Ttap Fast Connector)	≥30N; 2Minute
2.0x3.0mm (Ttap Connector)	≥30N; 2Minute
5.0mm (Ttap Connector)	≥70N; 2Minute
Torsion of optical cable	≥15N
Drop performance	10 drops under 1.5m height
Application Time	~30 seconds (excluding fiber presetting)
working environment	under 90% relative humidity ,70°C

Feature:

1.1 Waterproof and Dustproof: The OptiTap connector includes a robust sealing system that protects the fiber connection from water, dust, and other environmental contaminants, meeting IP68 standards.

1.2 Wide Compatibility: OptiTap connectors work well with Corning's network access points, terminal closures, and other FTTH equipment, making them suitable for a wide range of network designs.Easy connection to hardended adapters on terminals or closures.1.3 Reduce welding, connect directly to achieve interconnection.

1.4 High-Quality Materials: Made from UV-resistant and corrosion-proof plastic, ensuring long-term durability.

1.5 Guide mechanism, can be blinded with one hand, simple and quick, connect and install.

1.6 Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation,

Allows flexibility to use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.

Application:

2.1 FTTA/5G Tower Installations: Ensures reliable connections in extreme outdoor conditions.
2.2 Telecom Networks: Ideal for MST terminal boxes and outdoor SC ports.
2.3 Broadband Networks: Provides fast and waterproof connections for FTTP and FTTX projects.
2.4 Data Transmission Networks: Maintains high-speed connectivity in harsh environments.
2.5 Outdoor Cable Repairs: The best solution for quick field fixes without the need for pre-terminated connectors.

Tag:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW- PTF-SC

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 PCS Per 7 Days
