Huawei Type Mini SC Hardened Adapter For FTTA And Outdoor Network

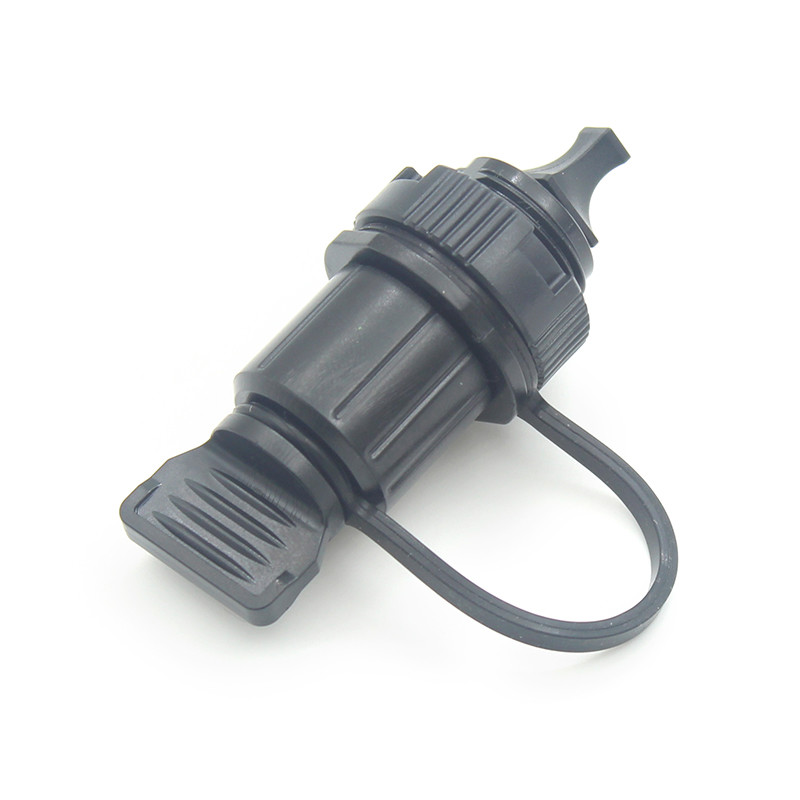

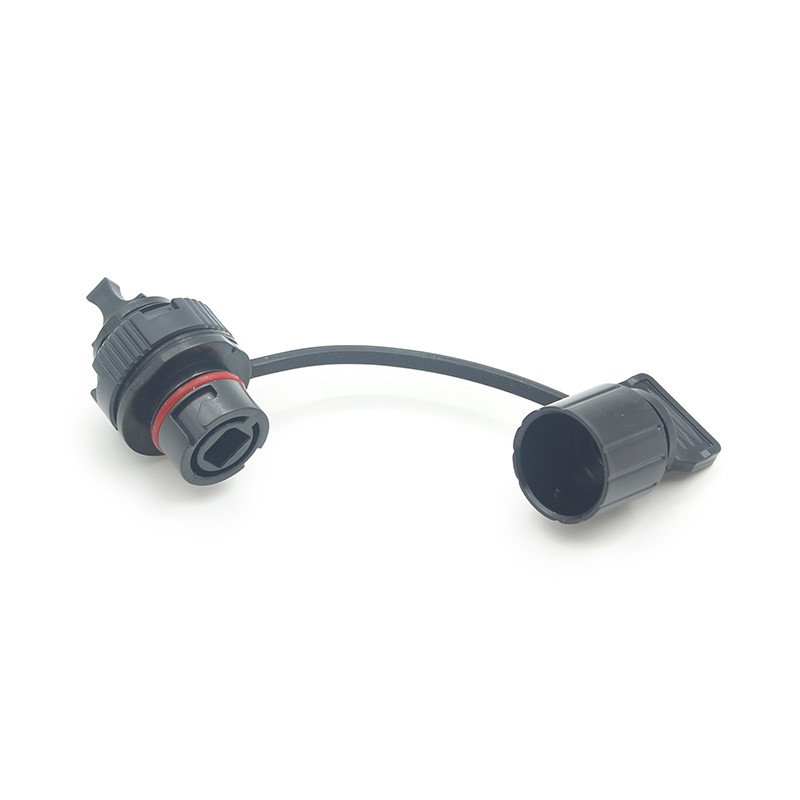

Large Image : Huawei Type Mini SC Hardened Adapter For FTTA And Outdoor Network

Product Details:

Place of Origin:	China
Brand Name:	DOWELL

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contact Now

Huawei Type Mini SC Hardened Adapter For FTTA And Outdoor Network

Description

Insertion Loss:	≤0.2dB	Return Loss:	≥50 DB
UL Rating:	UL 94-V0	Withdrawal Force:	2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp:	-40 +85	Protection Level:	IP67 Or Ip68
Highlight:	FTTA Hardened Adapter , SC Hardened Adapter , Outdoor Network Hardened Adapter

Huawei Type Mini SC Adapter IP67 or Ip68

The Huawei Type Mini SC Adapter is a cutting-edge fiber optic interconnect solution engineered to address the growing demand for space optimization and high-performance connectivity in modern optical networks. Designed with a compact SC form factor, this adapter minimizes physical footprint while maintaining compatibility with standard SC connectors, making it ideal for high-density cabling environments. Its sleek, durable design ensures reliable signal transmission and effortless integration into existing fiber infrastructure, catering to telecommunications, data centers, and enterprise networks. It is environmentally sealed and mechanically protection. The inner cover protects the ferrule end face from scratches when mating with the socket; one-hand bayonet mechanical latch.

Specification:

Parts name	Material	Parts name	Material
Adapter body	PC+ABS	Adapter body screw	PBT&PC+ABS
Sleeve	High precision Ceramic sleeve	Sling	Silica gel
Waterproof Dust Cover	PC	Waterproof gasket	Silica gel
Dust Cover	TPV

Feature:

1.1 Push-pull locking mechanism for easy installation

1.2 SM and MM connector can be used interchangeably

1.3 Low insertion loss, High Return loss

1.4 Provides excellent weather resistance for FTTA and other outdoor applications

1.5 Above 1000 mating cycles ensures long-term reliability.

1.6 Allows flexibility to use with NAP boxes, CTO boxes, enclosure boxes

1.7 Reduce deployment costs by utilizing plug-and-play solutions.

1.8 Complies with IEC 61754-4, Telcordia GR-326, and TIA/EIA-604-4

Application:

2.1 Telecommunications

2.2 5G Networks: Support high-speed, low-latency 5G connectivity.

2.3 FTTH/FTTx: Enables compact fiber distribution in broadband access networks.

2.4 Data Centers

2.5 High-Density Interconnects: Supports high-bandwidth transmission for AI/ML workloads and storage area networks (SANs).

2.6 Enterprise Networks

2.7 LAN/WAN Backbones: Facilitates reliable fiber cabling for campus networks and office buildings.
