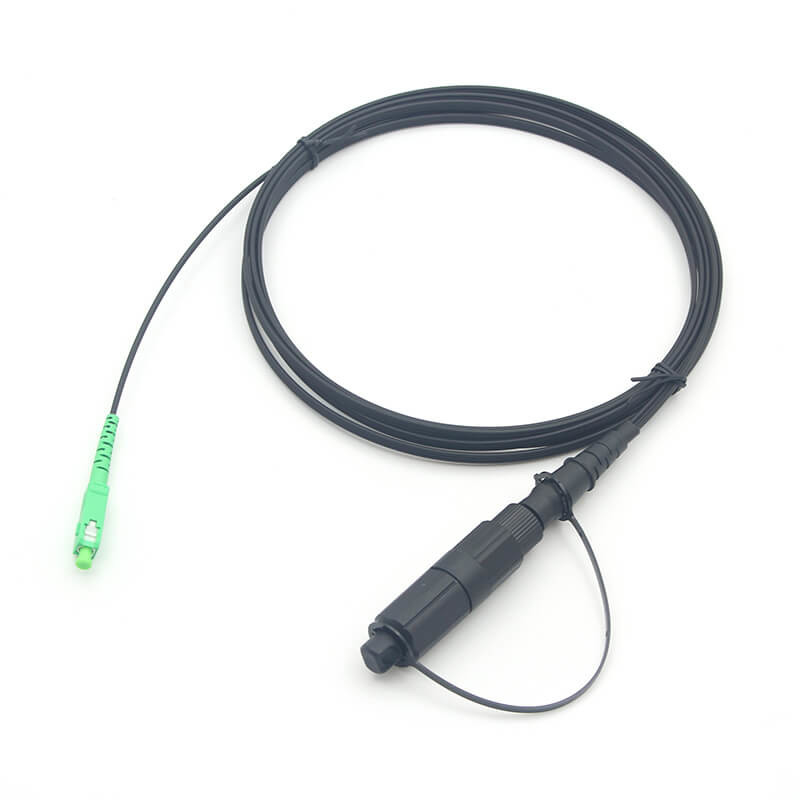

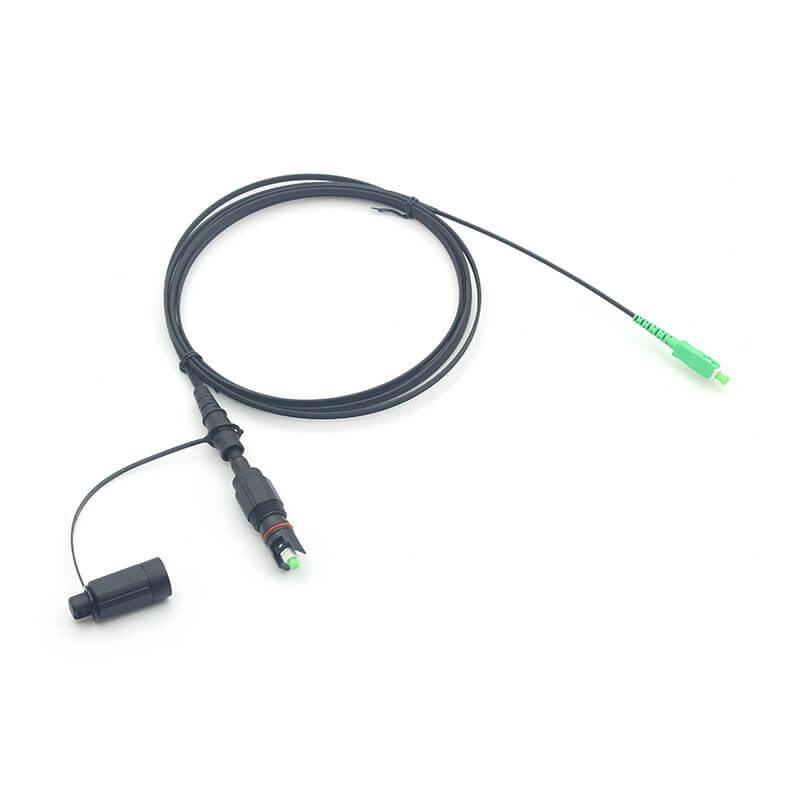

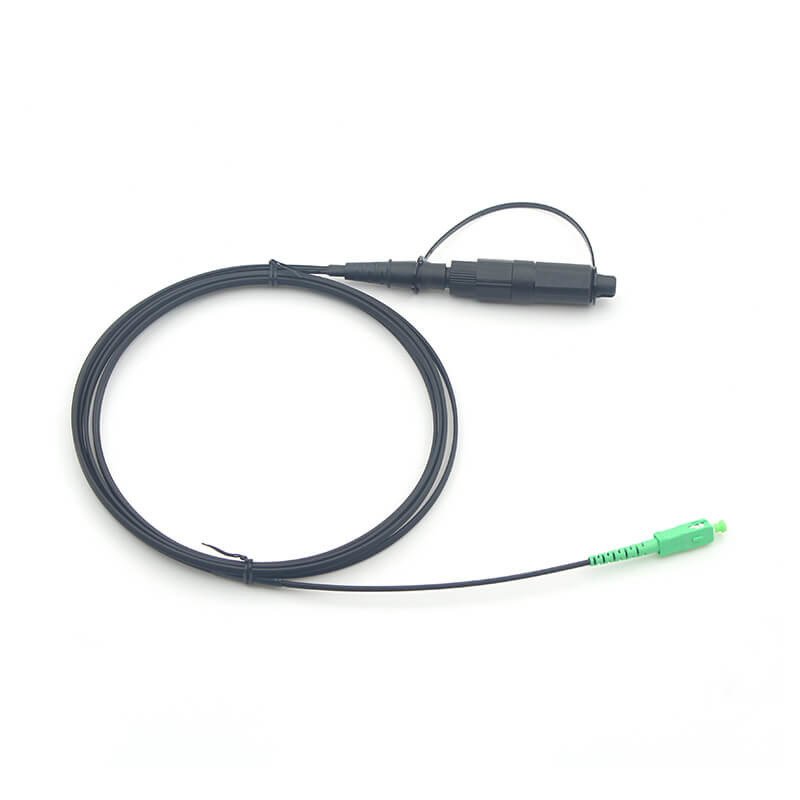

Pre Connected Optitap SC APC Connector FTTH Drop Cable G657A2

Large Image : Pre Connected Optitap SC APC Connector FTTH Drop Cable G657A2

Product Details:

Place of Origin:	china
Brand Name:	DOWELL
Model Number:	DW-CPSC-SC

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Contact Now

Pre Connected Optitap SC APC Connector FTTH Drop Cable G657A2

Description

Connector:	Optitap SC/APC	Polish:	APC-APC
Fiber Mode:	9/125μm, G657A2	Jacket Color:	Black
Cable OD:	2x3;2x5 3 ;5mm	Wavelength:	SM:1310/1550nm

Pre Connected Optitap SC APC Connector FTTH Drop Cable G657A2

Dowell FTTH Drop cable assemblies with Optitap connectors combine the simple installation offered by standard FTTH Drop cable, which are designed for rugged outdoor environments, and the flexibility of compact drop cables, which are designed for challenging indoor environments where bend-tolerance is a concern. The design features a gel-free, fully waterblocked, UV-resistant 2.9 mm riser-rated (OFNR)

drop cable centered inside a traditional Drop dielectric cable.

Designed to meet industry-standard requirements for indoor and outdoor drop cables, the product eliminates the need for termination to transition from the outdoor environment to an indoor ONT.

SC/APC Fast connector can be used with 2*3.0mm, 2*5.0mm flat drop cable, 3.0mm cable or 5.0mm round drop cable.It is an excellent solution and do not need terminated the connector in laboratory, it can be filed assembled very easily when the connector defected.

Optical Specification:

Connector	Optitap SC/APC	Polish	APC-APC
Fiber Mode	9/125μm, G657A2	Jacket Color	Black
Cable OD	2x3;2x5; 3;5mm	Wavelength	SM:1310/1550nm
Cable Structure	Simplex	Jacket Material	LSZH/TPU
Insertion loss	≤0.3dB(IEC Grade C1)	Return loss	SM APC ≥ 60dB(min)

Mechanical and Characteristics:

Items	Unite	Specifications	Reference
Span Length	M	50M(LSZH)/80m(TPU)
Tension(Long Term)	N	150(LSZH)/200(TPU)	IEC 61300-2-4
Tension (Short Term)	N	300(LSZH)/800(TPU)	IEC 61300-2-4
Crush (Long Term)	N/10cm	100	IEC 61300-2-5
Crush(Short Term)	N/10cm	300	IEC 61300-2-5
Min. Bend Radius (Dynamic)	mm	20D
Min. Bend Radius (Static)	mm	10D

End-Face Quality(Single-mode):

Zone	Range(mm)	Scratches	Defects	Reference
A:Core	0 to 25	None		IEC 61300-3-35:2015
B:Cladding	25 to 115
C:Adhesive	115 to 135
D:Contact	135 to 250

Application:

1.1 5G Networks: Waterproof connections for RRUs, AAUs, and outdoor base stations.

1.2 FTTH/FTTA: Distribution cabinets, splice closures, and drop cables in harsh environments.

1.3 Industrial IoT: Ruggedized links for factories, mining, and oil/gas facilities.

1.4 Smart Cities: Traffic control systems, surveillance networks, and streetlight communications.

1.5 Data center system networks.
