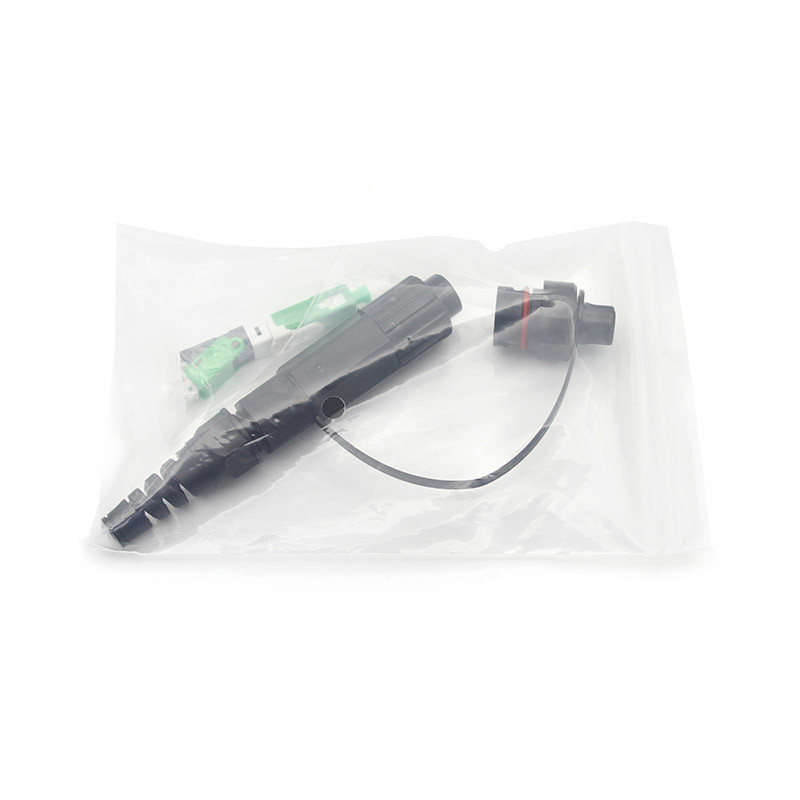

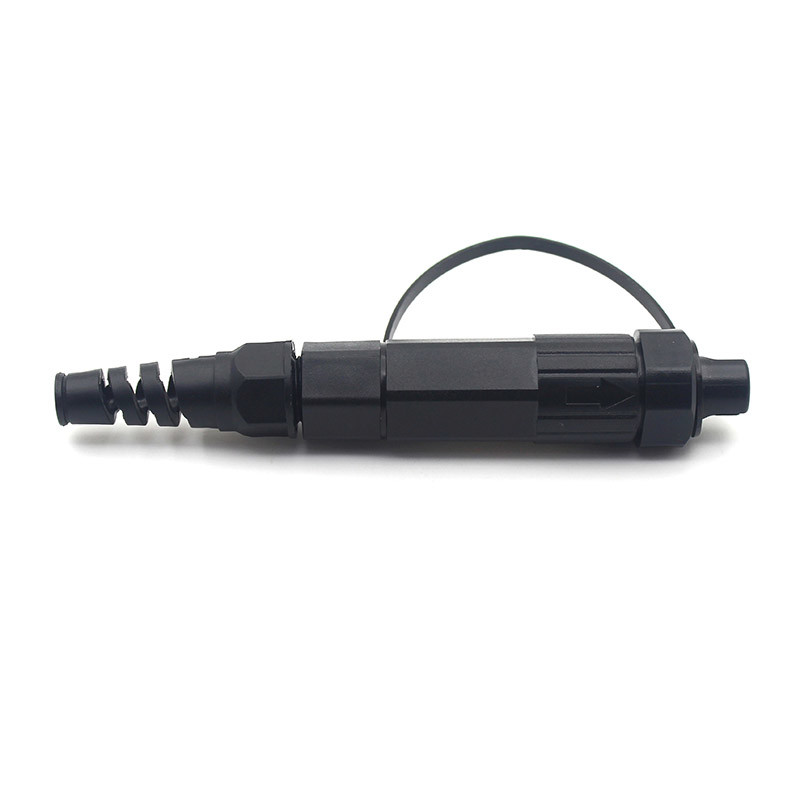

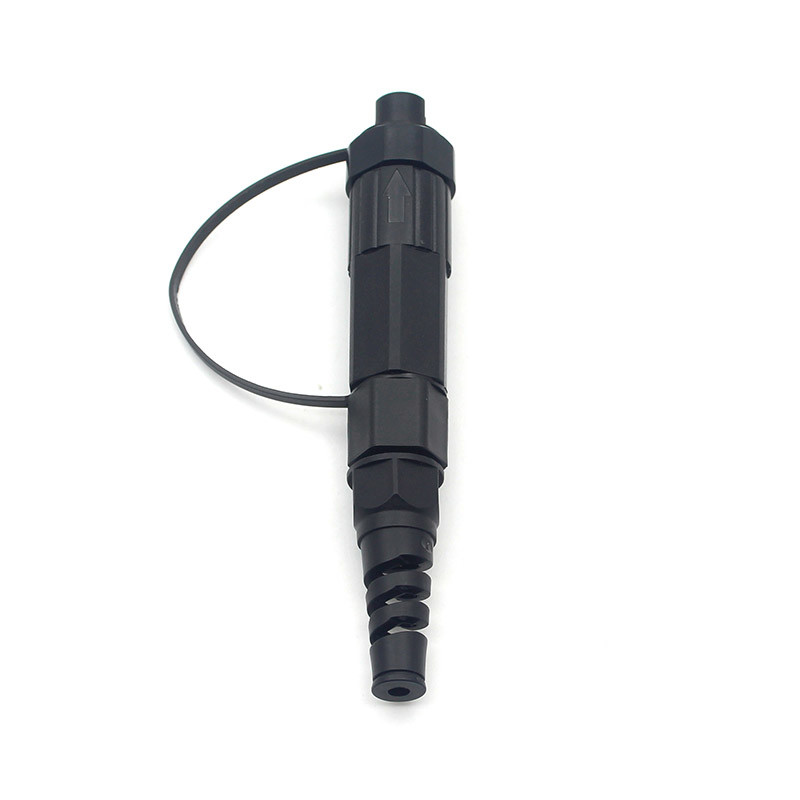

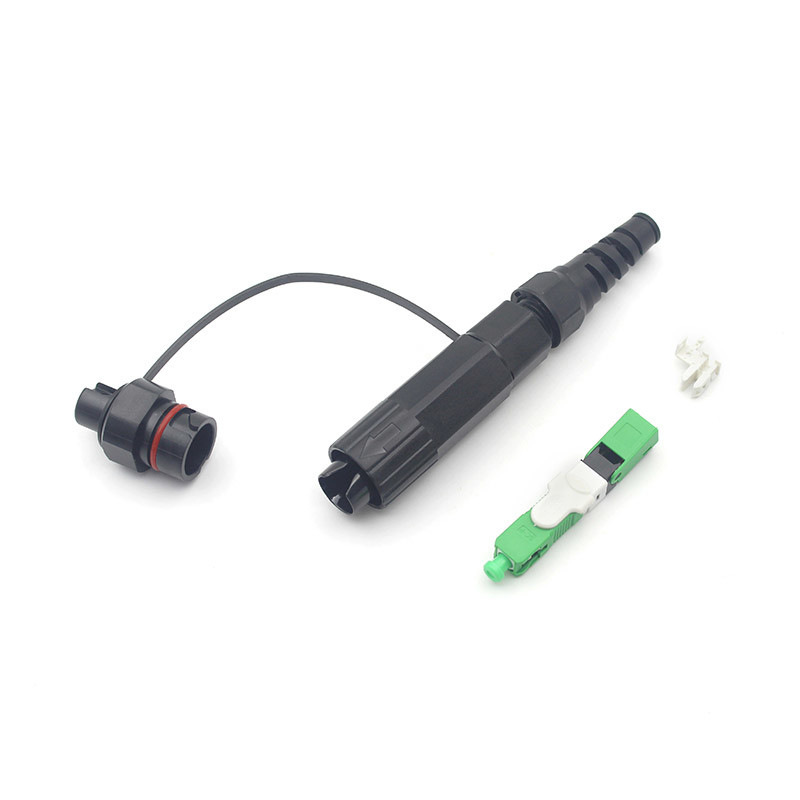

Huawei Compatible Mini SC Waterproof Field Assembly FTTH connector For FTTH Drop Cable And Round Cable

Huawei Compatible Mini SC Waterproof connector SC For FTTH drop cable And Round Cable

Mini Sc connector provides quick installation solutions and has good performance on mating receptacle / Adapter. Field assembly optical reinforced adapter provide an cost effective, easy, environmental seal and mechanical protection for 1 fibers simplex SC style connections. Inside cover can protect ferrule end face far away scratch when mating with receptacle; Special fool-proofing design equal to HUAWEI Mini SC connector has blind-mating function; One hand Bayonet-style mechanical latch. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch.

Specification:

Fearure:

1.1 Cable diameter Range:FTTH Drop cable 2.0*1.6mm/ 2.0*3.0mm/2.0*5.0mm ,Round cable 5.0mm/3.0mm/2.0mm.

1.2 IP68 water, dust proof and corrosion resistant

1.3 Low insertion loss and added loss.

Application:

2.1 FTTA BBU RRU
2.2 Harsh Environment
2.3 Data Video Transmission
2.4 FTTH & Outdoor Fiber Terminal End
2.5 Optical Fiber Access Of Mobile Base Station
2.6 Telecom networks 5G tower;
2.7 CATV, LAN&WAN.
2.8 Broadband;
2.9 CPRI, FTTP, FTTA
