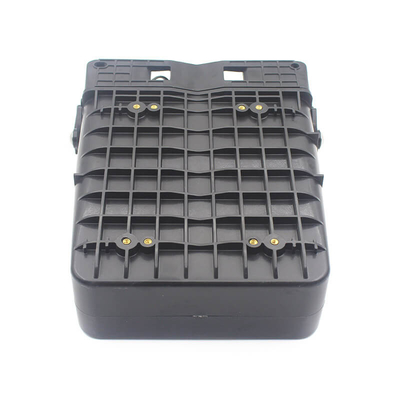

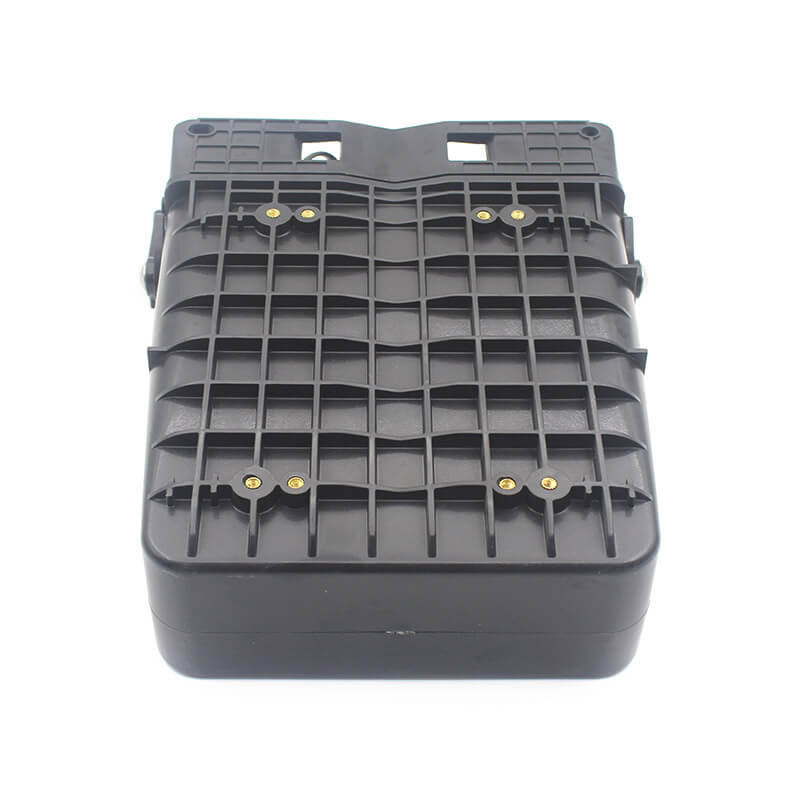

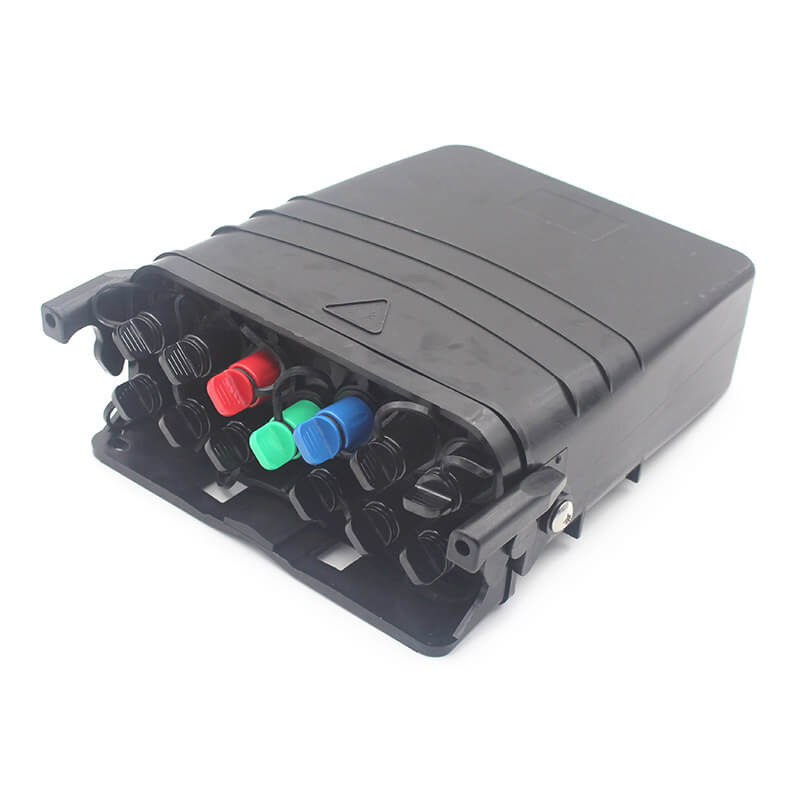

FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68

Large Image : FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68

Product Details:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW-SSC2806

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 PCS Per 7 Days

Contact Now

FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes IP68

Description

Wirng Capcity:	13	Splicng Capcity:	48
PLC Spliter:	PLC1:9	Max. Tray Qty:	4
Storage Tem:	-40ºC To +70ºC	Operating Tem:	-40ºC To +65ºC

FTTX 8/10/12 Ports Pre-connectorized Fiber Terminal NAP Boxes

Dowell Company Fttx Pre-connectorized Terminal Boxes, available in 8 Ports, 10 Ports, and 12 Ports, they are high-performance fiber management solutions designed for Fttx network systems. These versatile termination boxes enable seamless connections between feeder cables and drop

cables, supporting fiber splicing, splitting, and distribution in a compact, weatherproof enclosure. Waterproof closure with IP68-rated protection and IK10 impact resistance, these terminal boxes ensure reliable operation in harsh indoor and outdoor environments, including overground, under

ground, and manhole installations. Each type terminal box with features plug-and-play compatibility, pre-connected adapters, and independent cable pathways to enhance installation efficiency and simplify network maintenance.

Specification:

Wirng Capcity	13 SC/APC Waterproof adapter
Splicng capcity (unit: core)	48
PLC Spliter	PLC1:9 (Cascade output 70%, 8 users output 30%)
Splicng capcity per tay (unit: core)	12 core and 2 pcs PLC (1:4 or 1:8)
Max. tray qty	4
Optical cable entrance and exit	10 SC/APC Waterpof adpter
Installation mode	Pole/wall-mountig, aerial cable-mounting
Atmospheric Pressure	70~ 106kPa
Material	Plastic: Reinforced P Metal: Stainless steel 304
Application Scenario	Overgound, undergound, manhole/hand hole
Resisting Impact	lk10
Flame-retardant rating	UL94-HB
Dimensions (H x W x D; unit: mm)	262 x 209 x 94 No Buckle
Dimensions (H x W x D; unit: mm)	269 x 237 x 94 Have a Buckle
Package size (H x W x D; unit: m)	240 x 105 x 280
Net weight (unit: kg)	1.3
Gros weight (unit: kg)	1.39
Protection rating	IP68
Sealing mode	Mechanical
Adaptor Type	SC/APC Waterproof adapter

Fearures:

1.1 Tool-free design, easily be opened and closed by the lever handle.

1.2 Plug and play, FastConnect drop cable instead of splicing, be installed without opening the closure.

1.3 Fast Plug realizes cable fastening and sealing outside the closure, leads to fast installation.

1.4 Support dispatching fibers from same loose tube into different trays.

1.5 Support pole/wall mounting, aerial cable mounting.

1.6 Support overground, underground, manhole/hand hole installation.

1.7 Small size and elegant appearance.

1.8 IP68 protection.

1.9 Made from plastic (PP+GF) and stainless steel (SUS304) for long-term use.

Application:

2.1 Termination point for feeder and drop cables in FTTx network systems.
2.2 Suitable for fiber splicing, splitting, and distribution to form optical interconnection points.
2.3 Supports connections to single optical plugs in customer homes.

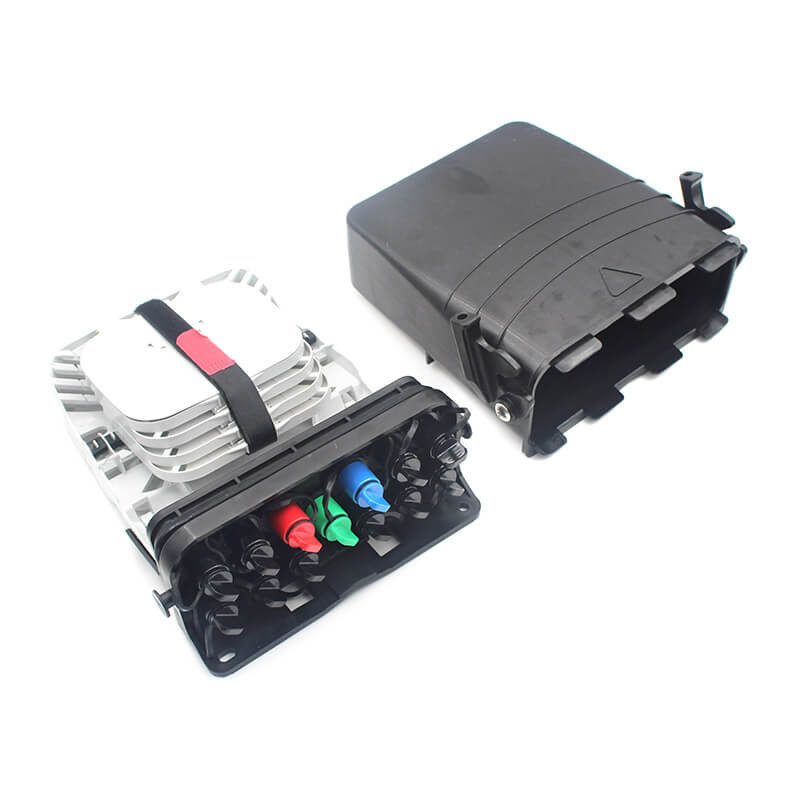

Structure:
