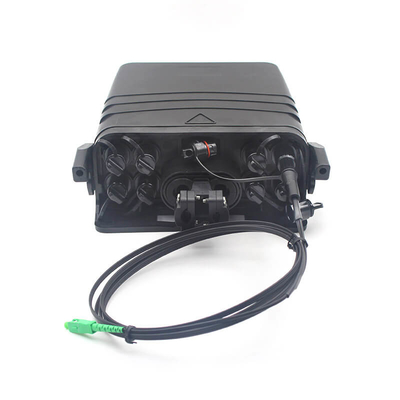

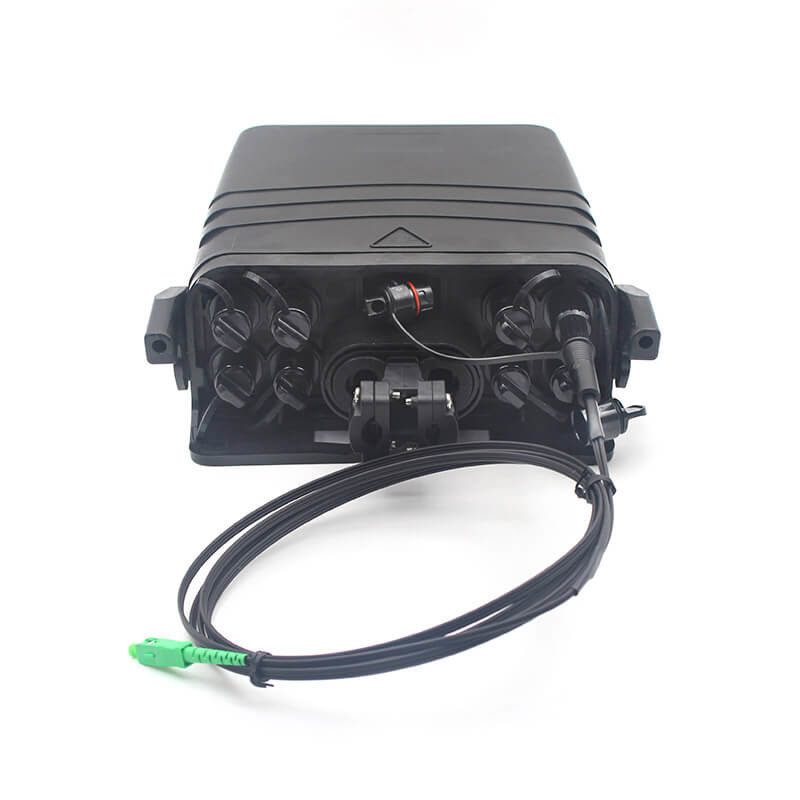

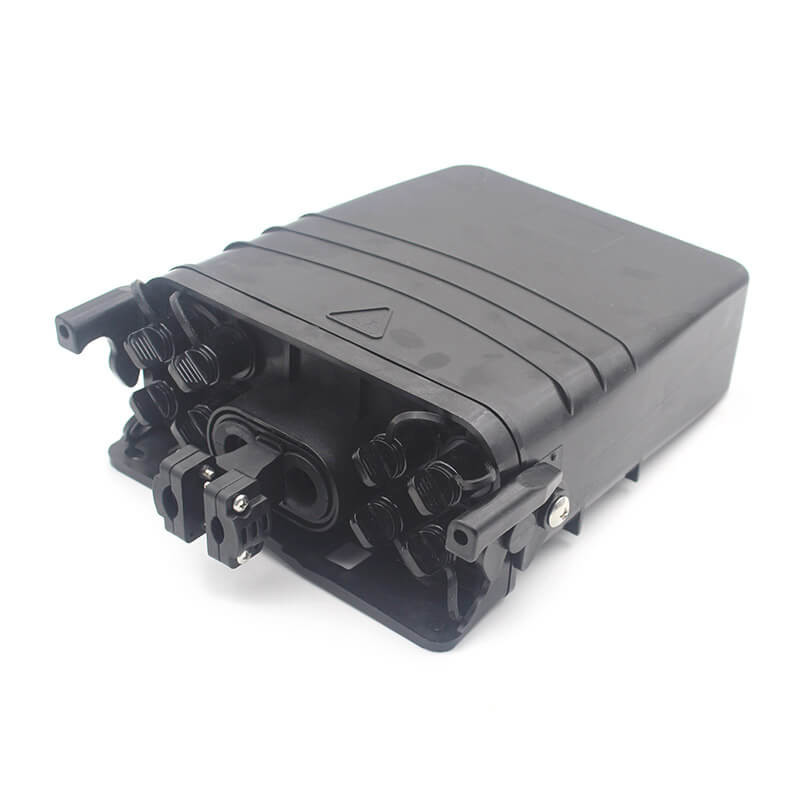

8 Port SC APC Waterproof Pre-connectorized Fiber Terminal NAP Boxes
  Dowell Company Fttx Pre-connectorized Terminal Boxes, available in 8 Ports, 10 Ports, and 12 Ports, they are high-performance fiber management solutions designed for Fttx network systems. These versatile termination boxes enable seamless connections between feeder cables and drop cables, supporting fiber splicing, splitting, and distribution in a compact, weatherproof enclosure.
  Waterproof closure with IP68-rated protection and IK10 impact resistance, these terminal boxes ensure reliable operation in harsh indoor and outdoor environments, including overground, underground, and manhole installations. Each type terminal box with features plug-and-play compatibility, pre-connected adapters, and independent cable pathways to enhance installation efficiency and simplify network maintenance.
  It is mainly applied at the access point of an Fttx-ODN network to connect and distribute optical cables and connect the drop cable to user devices. It supports 8 pcs Fast Connect drop cables.
Specification:

Features:
1.1 Pre-connectorized waterproof SC/APC adapters: Includes 10 adapters for fast and stable connections.
1.2 High splicing capacity: Accommodates up to 48 fibers for versatile applications.
1.3 Durable materials: Made from plastic (PP+GF) and stainless steel (SUS304) for long-term use.
1.4 Compact dimensions: Space-efficient with or without buckle options for flexibility.

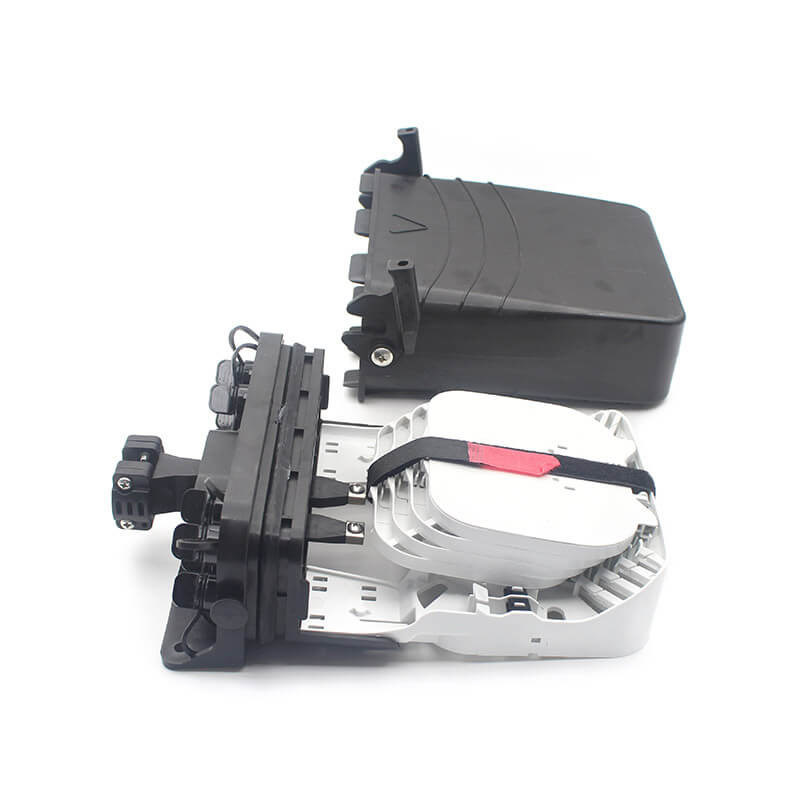

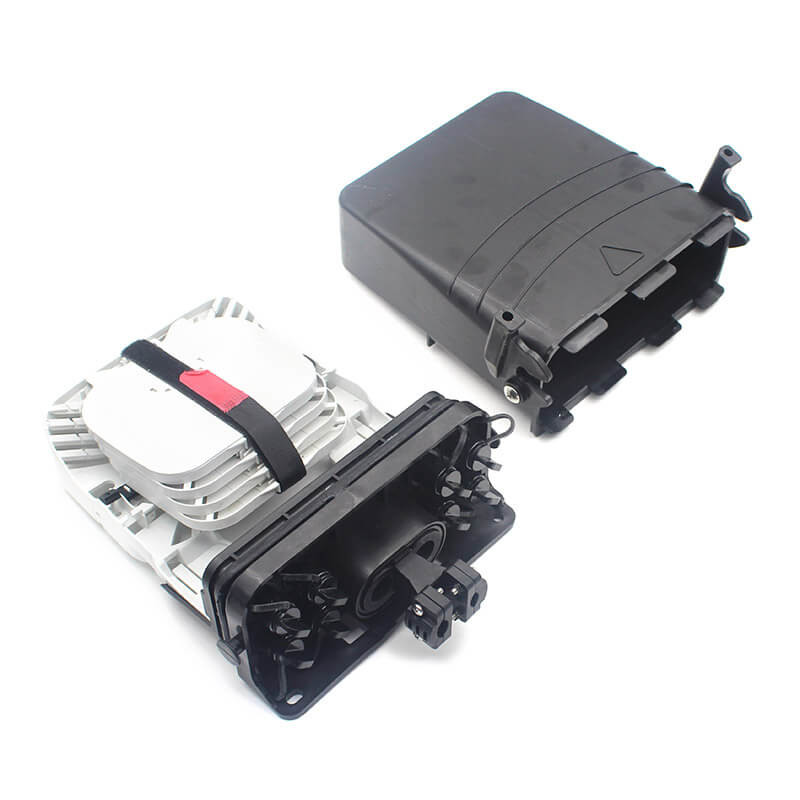

1.5 Easy maintenance: Distribution panel flips up for convenient access during installation or repairs.
Application:

Structure:

Installation:
3.1 Wall-Mounted Installation:
      Drill 4 holes into the wall and insert expansion bolts(Φ7.5*40).
      Align the box with the holes and fasten it securely using bolts.
3.2 Pole-Mounted Installation:
      Attach mounting brackets to the chassis of the box.
      Secure the box to the pole using bolts to prevent it from falling off.
3.3 Hanging on Cable Installation:
      Tie the mounting brackets on the chassis to the overhead wire.
      Fasten the box with bolts to ensure stability during overhead deployment.
3.4 Fiber Storage Bracket Installation:
      Utilize a dedicated fiber storage bracket for safe and organized cable management.
