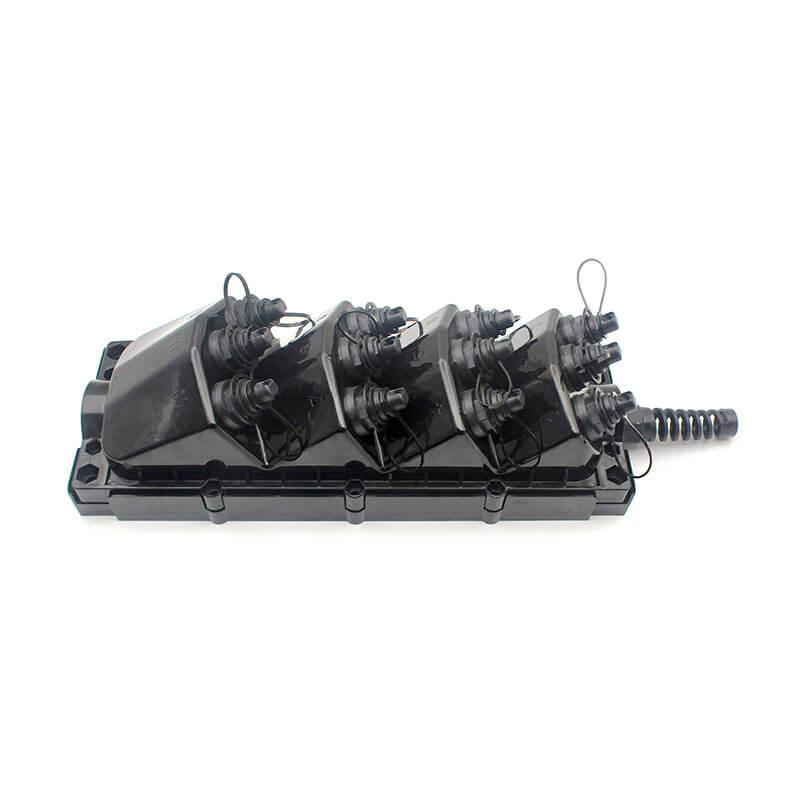

12 Ports MST Multiport Service Closures FTTA For OptiTap Connector Corning

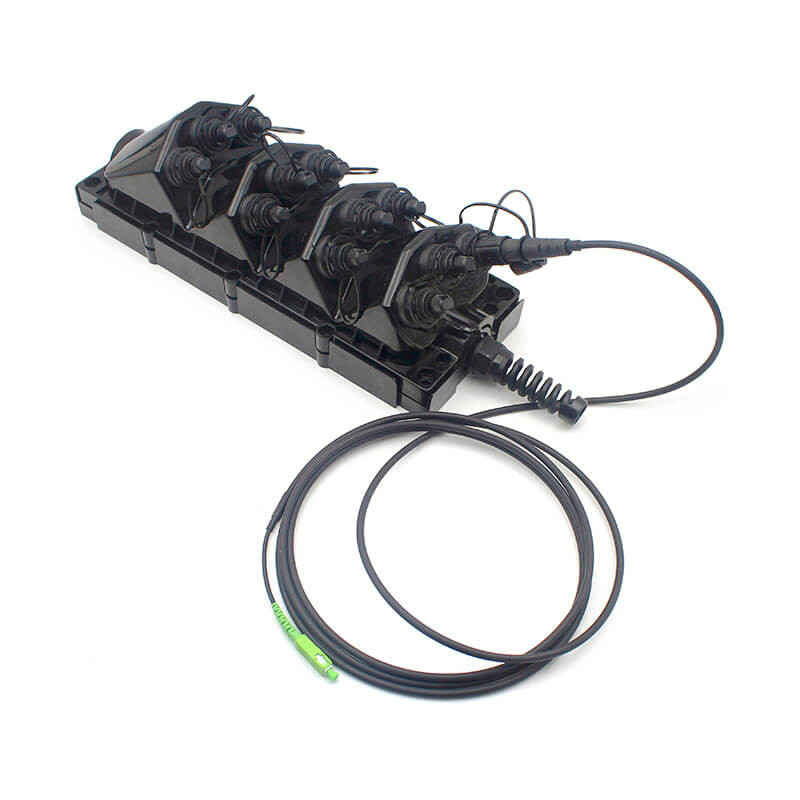

12 Fiber MST Multiport Service Closures FTTA With Drops Cable

An attached optical cable assembly is connected internally to the optical ports. The MST may be ordered with two, four, six, eight, or twelve fiber ports and with a 2xN or 4x3 style housing. The four and eight port versions of the MST may also be ordered with internal 1x2 to 1x12splitters so that a single optical fiber input can feed all the optical ports.
The MST uses hardened adapters for the optical ports. A hardened adapter consists of a standard SC adapter that is enclosed within a protective housing. The housing provides sealed environmental protection for the adapter. The opening to each optical port is sealed with a threaded dust cap that prevents the entry of dirt and moisture.

Specification:

1.1 Fiber Parameters:

1.2 Cable Parameters:

1.3 Mechanical and Environmental Characteristics:

Features:
1.1 Each box can be fully assembled to reduce the need for opening and opening the field in the field.
1.2 Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.
1.3 Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network.
1.4 Multi-port Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment.
1.5 Factory terminated IP68 rated, high quality, high performance connectors.
1.6 Flexible choice of ports: 2, 4, 6, 8 terminals are available.

Application:

2.1 FTTA (Fiber to the Antenna)

2.2 Telecommunication Networks

Installation Manual:
