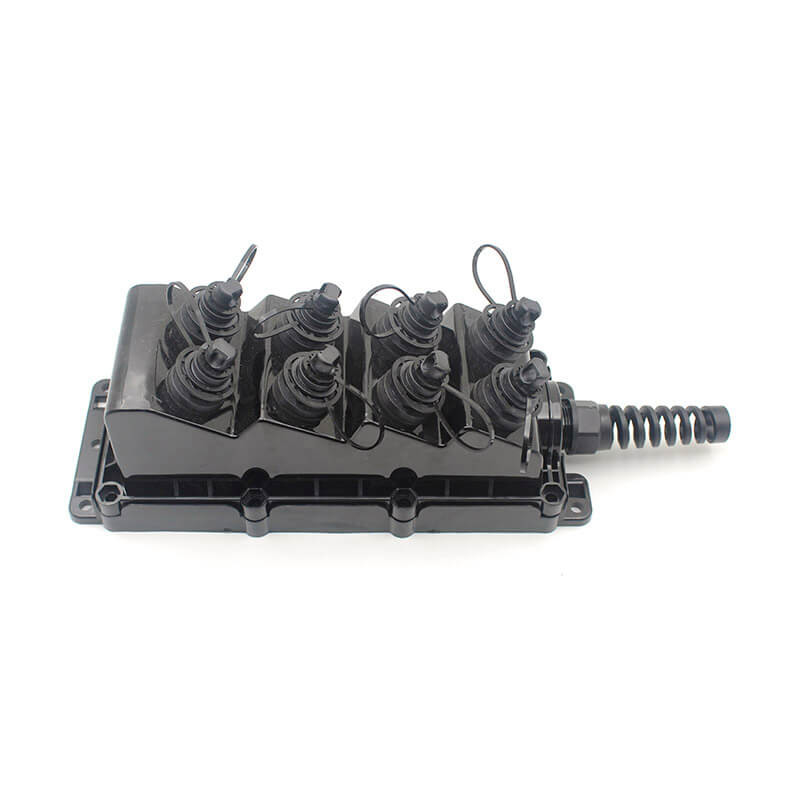

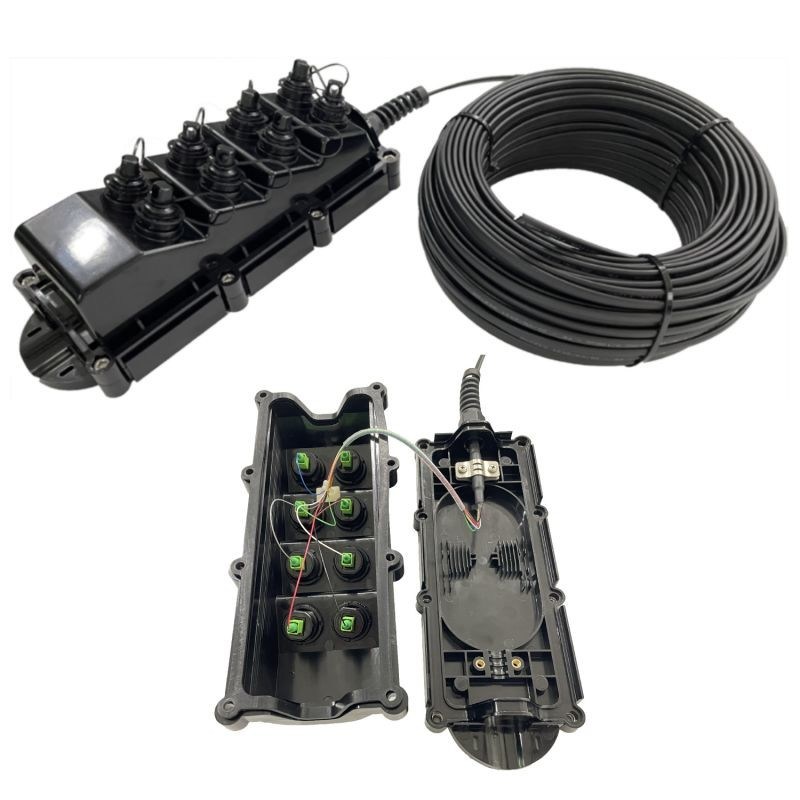

Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box

Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box
Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box

Large Image :  Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box

Product Details:
Place of Origin: china
Brand Name: DOWELL
Model Number: DW-MST-8
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS Per 7 Days
Contact Now

Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box

Description
Tension(Long Term): 300N Tension(Short Term): 600N
Crush(Long Term): 1000N/10cm Crush(Short Term): 2200N/10cm
Installation Temperature: -20~+60℃ Operation Temperature: -40~+70℃

Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box

The Multi Service Terminal incorporates hardened adapters and are fully OptiTap compatible. Allowing for rapid tower and FTTH deployments, the MSTs are fully IP68 rated to fully withstand the rigors of outdoor deployment in all environments. Each MST comes with easy deployment mount allowing wall mounting or for pole mounting.

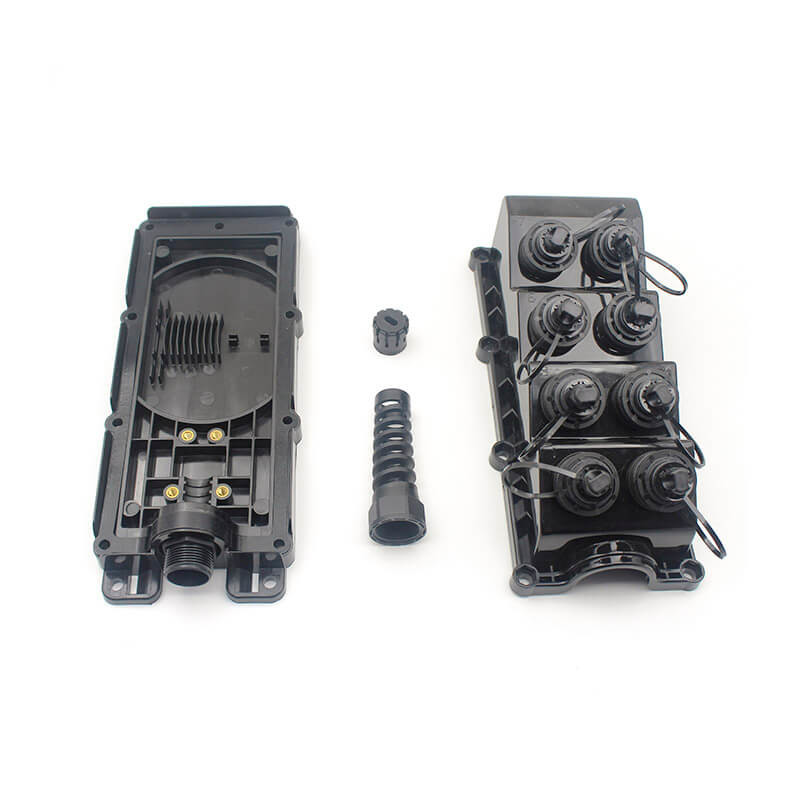

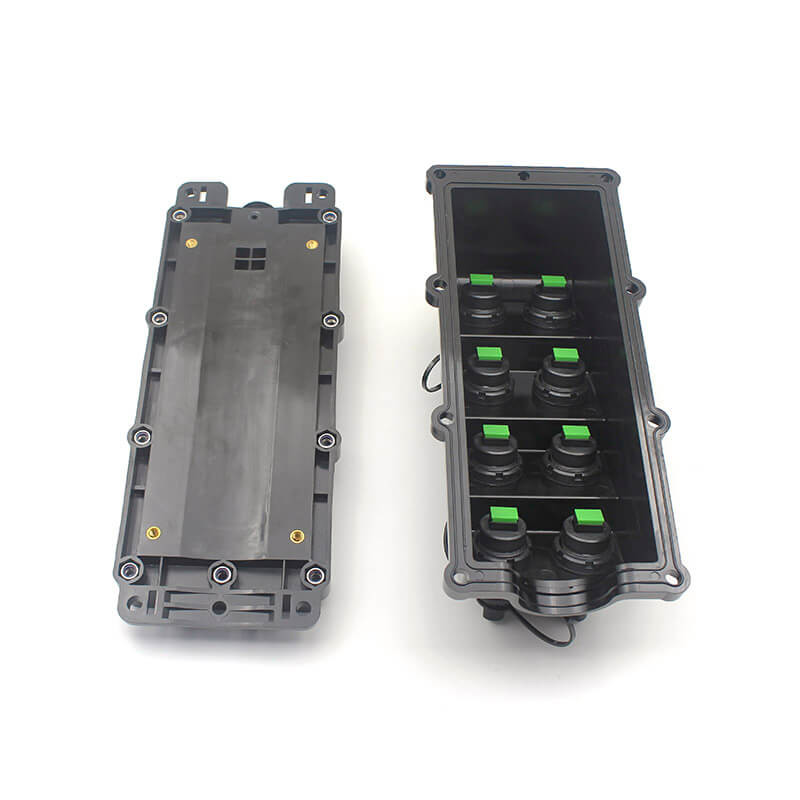

The MST uses hardened adapters for the optical ports. A hardened adapter consists of a standard SC adapter that is enclosed within a protective housing. The housing provides sealed environmental protection for the adapter. The opening to each optical port is sealed with a threaded dust cap that prevents the entry of dirt and moisture.
Specification:
1.1 Fiber Parameters
No. Items Unit Specification
G.657A1
1 Mode Field Diameter 1310nm um 8.4-9.2
1550nm um 9.3-10.3
2 Cladding Diameter um 125±0.7
3 Cladding Non-Circularity % ≤ 0.7
4 Core-Cladding Concentricity Error um ≤ 0.5
5 Coating Diameter um 240±0.5
6 Coating Non-Circularity % ≤ 6.0
7 Cladding-Coating Concentricity Error um ≤ 12.0
8 Cable Cutoff Wavelength nm λ∞≤ 1260
9 Attenuation(max.) 1310nm dB/km ≤ 0.35
1550nm dB/km ≤ 0.21
1625nm dB/km ≤ 0.23
10 Macro-Bending Loss 10tumx15mm radius @1550nm dB ≤ 0.25
10tumx15mm radius @1625nm dB ≤ 0.10
1tumx10mm radius @1550nm dB ≤ 0.75
1tumx10mm radius @1625nm dB ≤ 1.5

1.2 Fiber Parameters

Items Specifications
Tone Wire AWG 24
Dimension 0.61
Material Copper
Fiber Count 2-12
Colored Coating Fiber Dimension 250±15um
Color Standard Color
Buffer Tube Dimension 2.0 ±0.1mm
Material PBT and Gel
Color White
Strength Member Dimension 2.0 ±0.2mm
Material FRP
Outer Jacket Diameter 3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm
Material PE
Color Black

1.3 Mechanical and Environmental Characteristics

Items Unite Specifications
Tension(Long Term) N 300
Tension(Short Term) N 600
Crush(Long Term) N/10cm 1000
Crush(Short Term) N/10cm 2200
Min. Bend Radius (Dynamic) mm 60
Min. Bend Radius (Static) mm 60

Features:

2.1 Dielectric, toneable, or armored input stub cables

2.2 Each box can be fully assembled to reduce the need for opening and opening the field in the field.

2.3 No splicing required in the terminal

2.4 Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments.

2.5 Plug-and-play adapter ports ensure rapid cable installment in the outside plant access section of the network.

2.6 Multi-port Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment.

Application:

3.1 FTTA (Fiber to the Antenna)

3.2 Telecommunication Networks

3.3 Rural & Remote Area Networks
3.4 Temporary Network Setups
Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box 0
Installation Manual:
Outdoor FTTA MST Multi Service Terminal Closure 8 Port Waterproof Box 1
