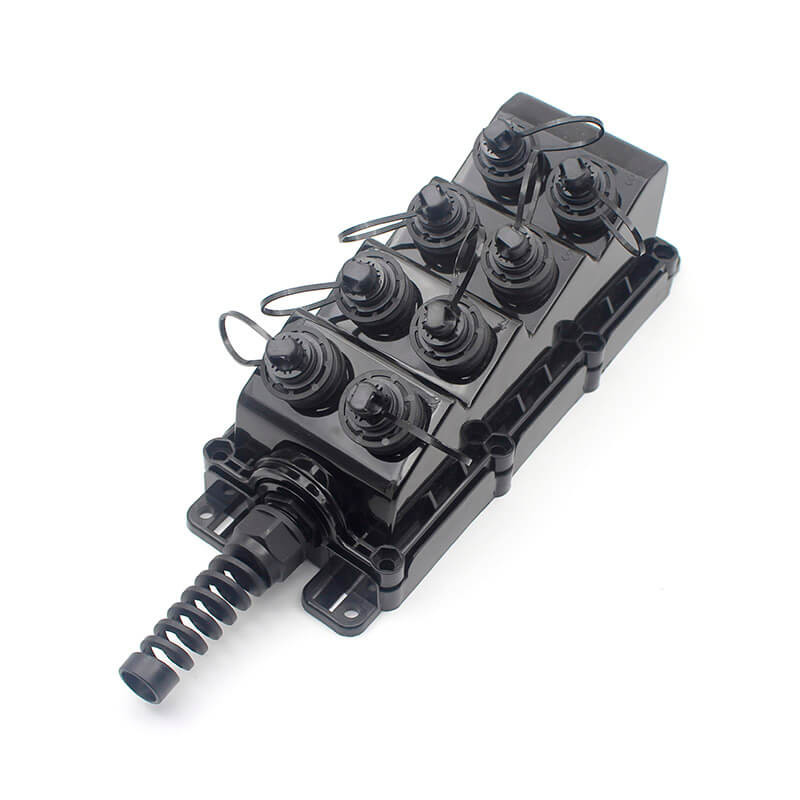

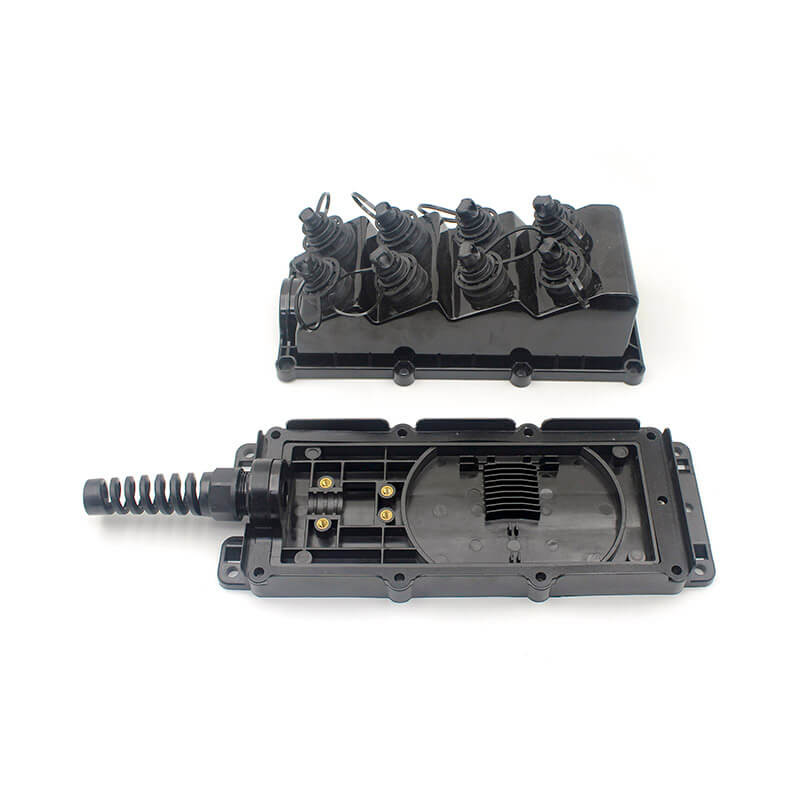

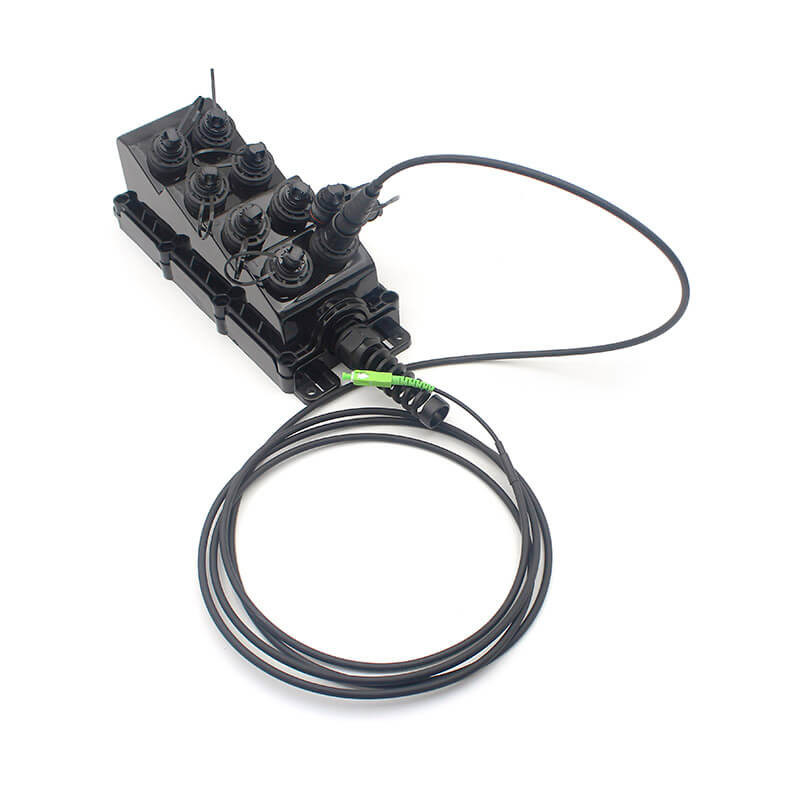

8 Ports Multi Service Terminal Box MST Closure For FTTA
The Multiport Service Terminal (MST) is designed for high-density fiber optic distribution in outdoor telecom and FTTA networks. The robust IP68 waterproof rating, combined with flame-retardant materials and durable 304 stainless steel hardware, ensures that this MST box performs reliably in challenging environments. It offers flexible installation options and supports FastConnect drop cables, making it an excellent choice for telecom towers, remote deployments, and emergency network setups.
Specification:
1.1 Fiber Parameters:
| No. |
Items |
Unit |
Specification |
| G.657A1 |
| 1 |
Mode Field Diameter |
1310nm |
um |
8.4-9.2 |
| 1550nm |
um |
9.3-10.3 |
| 2 |
Cladding Diameter |
um |
125±0.7 |
| 3 |
Cladding Non-Circularity |
% |
≤ 0.7 |
| 4 |
Core-Cladding Concentricity Error |
um |
≤ 0.5 |
| 5 |
Coating Diameter |
um |
240±0.5 |
| 6 |
Coating Non-Circularity |
% |
≤ 6.0 |
| 7 |
Cladding-Coating Concentricity Error |
um |
≤ 12.0 |
| 8 |
Cable Cutoff Wavelength |
nm |
λ∞≤ 1260 |
| 9 |
Attenuation(max.) |
1310nm |
dB/km |
≤ 0.35 |
| 1550nm |
dB/km |
≤ 0.21 |
| 1625nm |
dB/km |
≤ 0.23 |
| 10 |
Macro-Bending Loss |
10tumx15mm radius @1550nm |
dB |
≤ 0.25 |
| 10tumx15mm radius @1625nm |
dB |
≤ 0.10 |
| 1tumx10mm radius @1550nm |
dB |
≤ 0.75 |
| 1tumx10mm radius @1625nm |
dB |
≤ 1.5 |
1.2 Cable Parameters:
| Items |
Specifications |
| Tone Wire |
AWG |
24 |
| Dimension |
0.61 |
| Material |
Copper |
| Fiber Count |
2-12 |
| Colored Coating Fiber |
Dimension |
250±15um |
| Color |
Standard Color |
| Buffer Tube |
Dimension |
2.0 ±0.1mm |
| Material |
PBT and Gel |
| Color |
White |
| Strength Member |
Dimension |
2.0 ±0.2mm |
| Material |
FRP |
| Outer Jacket |
Diameter |
3.0x4.5mm; 4x7mm; 4.5x8.1mm; 4.5x9.8mm |
| Material |
PE |
| Color |
Black |
1.3 Mechanical and Environmental Characteristics:
| Items |
Unite |
Specifications |
| Tension(Long Term) |
N |
300 |
| Tension(Short Term) |
N |
600 |
| Crush(Long Term) |
N/10cm |
1000 |
| Crush(Short Term) |
N/10cm |
2200 |
| Min. Bend Radius (Dynamic) |
mm |
60 |
| Min. Bend Radius (Static) |
mm |
60 |
Features:
2.1 This MST box offers ample space for managing larger-scale fiber optic networks, ideal for FTTA and telecom applications.
2.2 Fully waterproof and dustproof, this box ensures reliable protection against harsh weather and outdoor conditions.
2.3 Constructed with flame-retardant PC+ABS plastic and 304 stainless steel hardware, this MST box is built to withstand extreme temperatures and weather conditions.
2.4 Supports plug-and-play FastConnect drop cables for quick, no-splicing deployment, making setup easier and faster for FTTH, FTTA, and other outdoor installations.
2.5 Dielectric, toneable, or armored input stub cable
2.6 Pole, pedestal, handhole, or strand mounting options
2.7 Ships with universal mounting bracket
2.8 User-friendly packaging allows foreasy un-spooling
Application:
3.1 FTTA (Fiber to the Antenna):Designed for outdoor telecom network installations, the MST box offers high-capacity fiber optic distribution, ideal for telecom towers and antenna systems.
3.2 Telecommunication Networks: Perfect for managing fiber optic connections across base stations, antennas, and network nodes, ensuring high-speed and stable data transmission.
3.3 Rural & Remote Area Networks:
3.4 Temporary Network Setups
