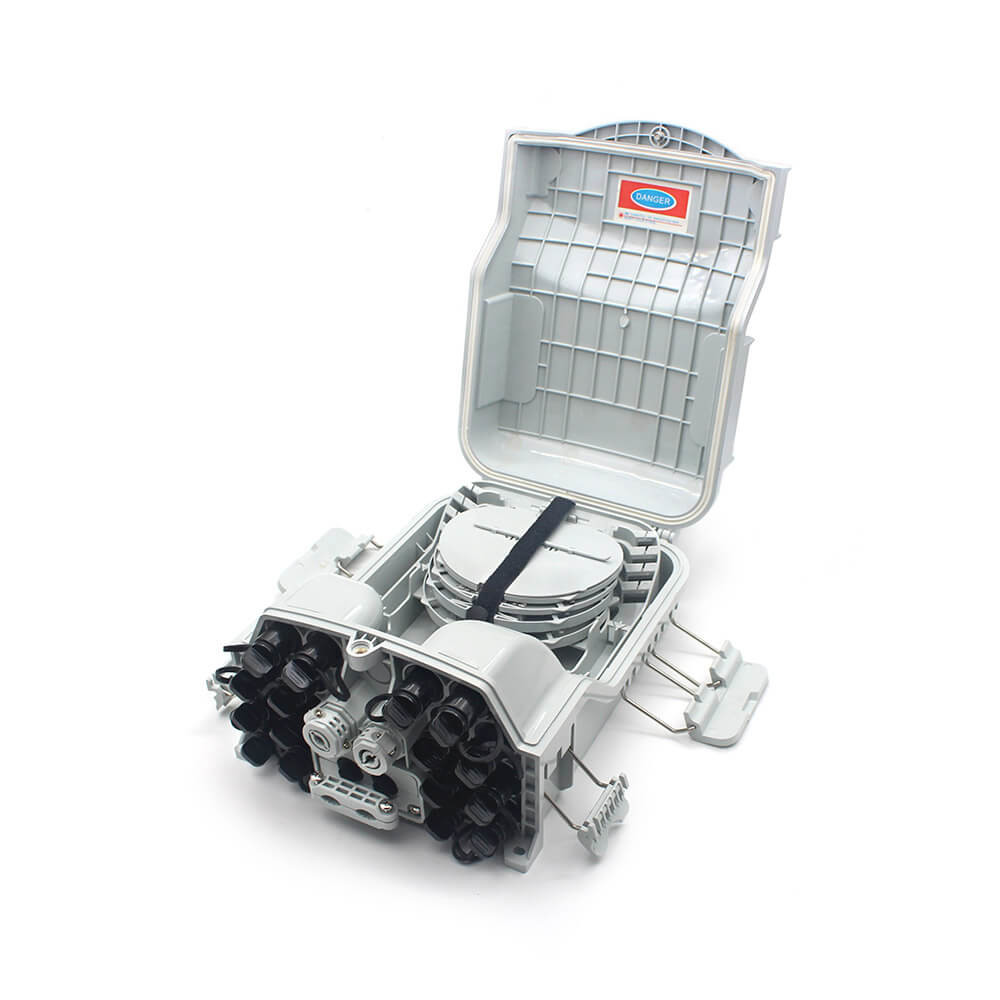

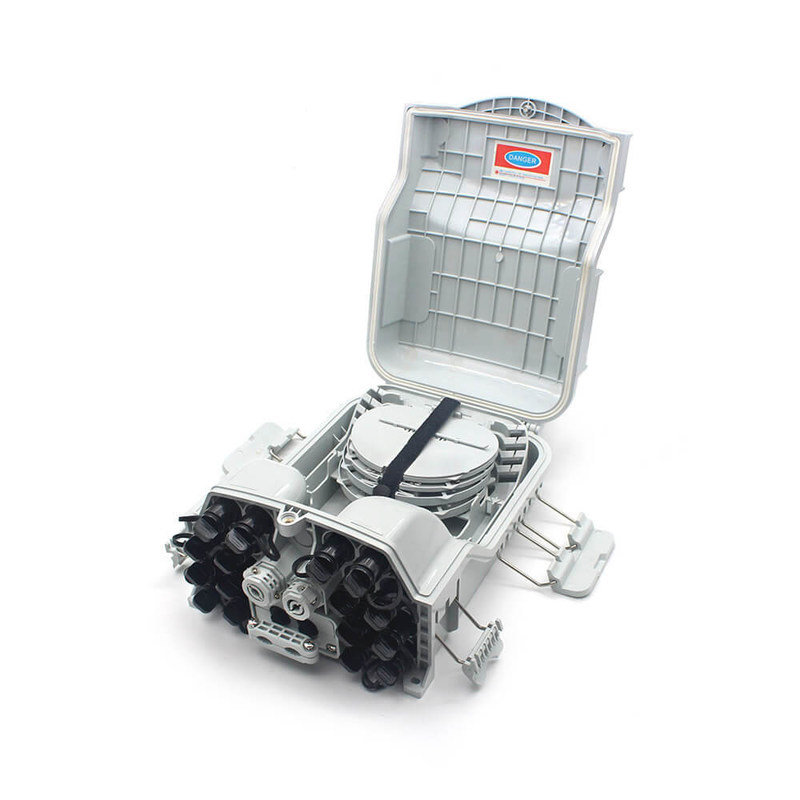

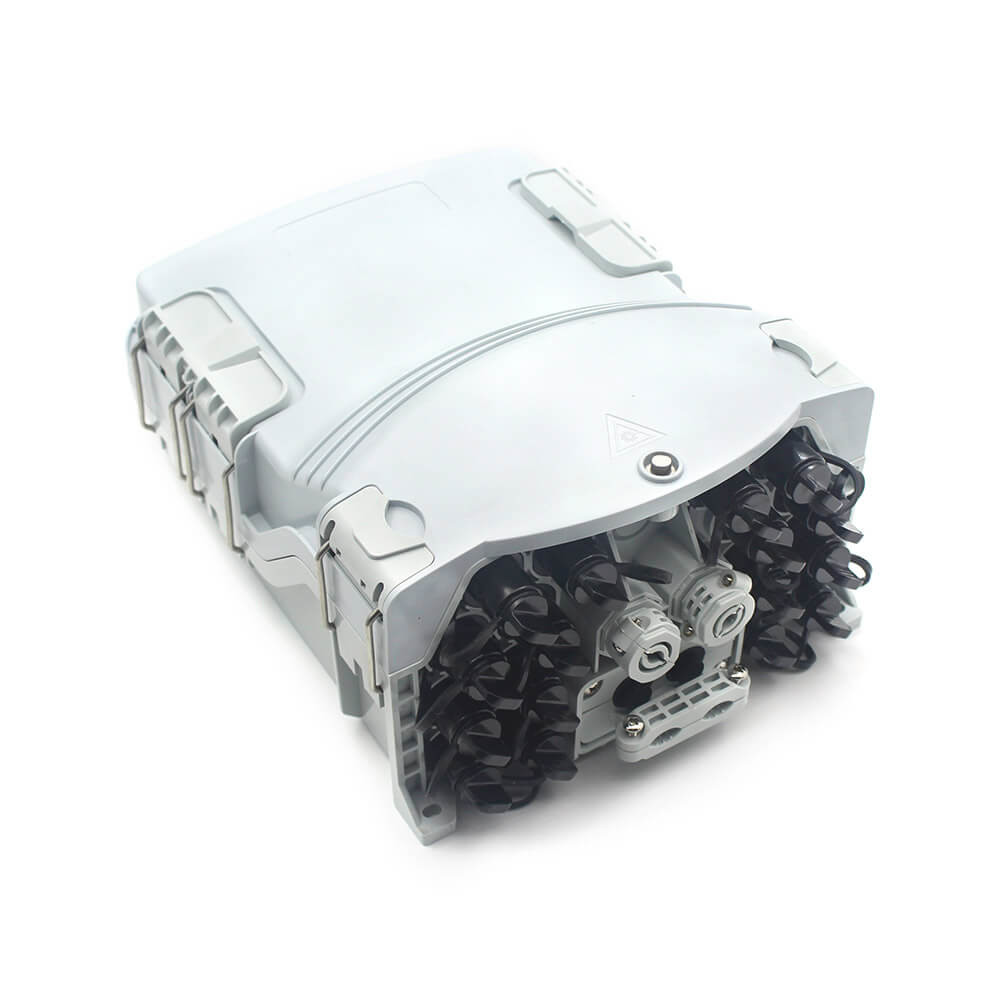

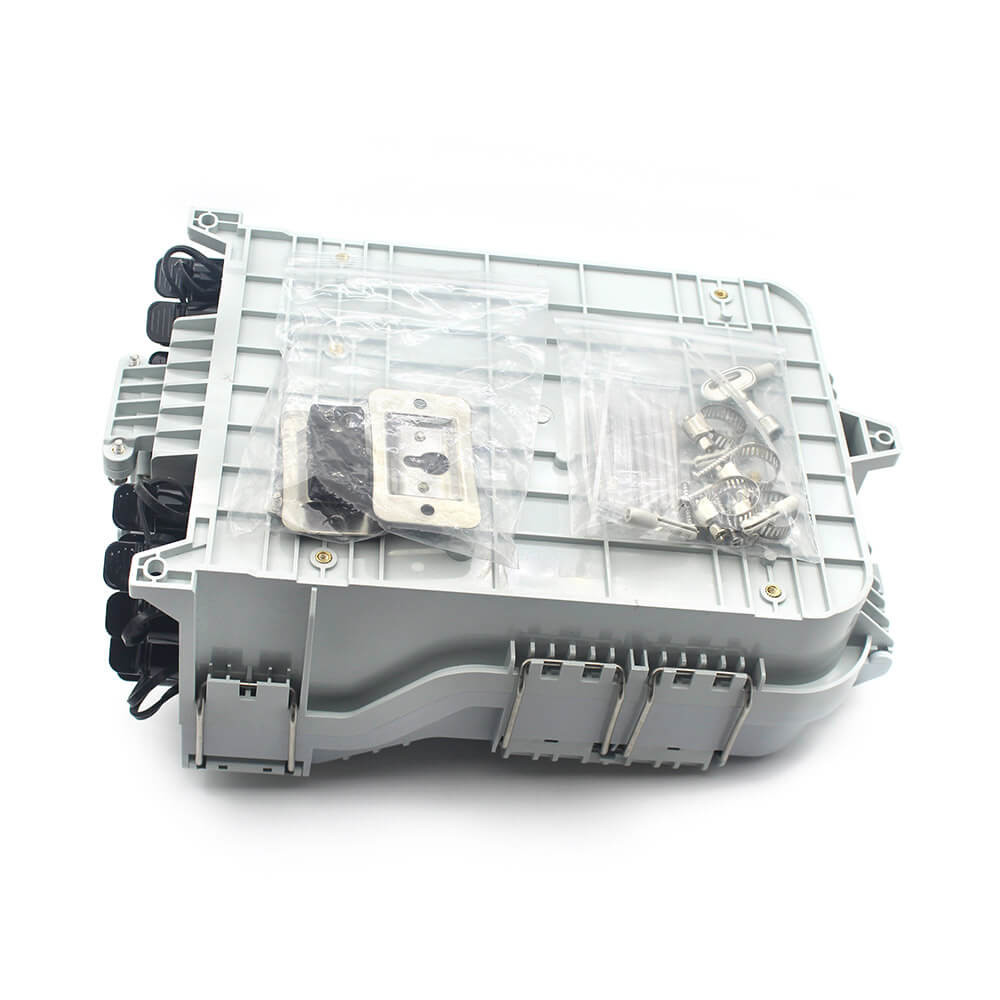

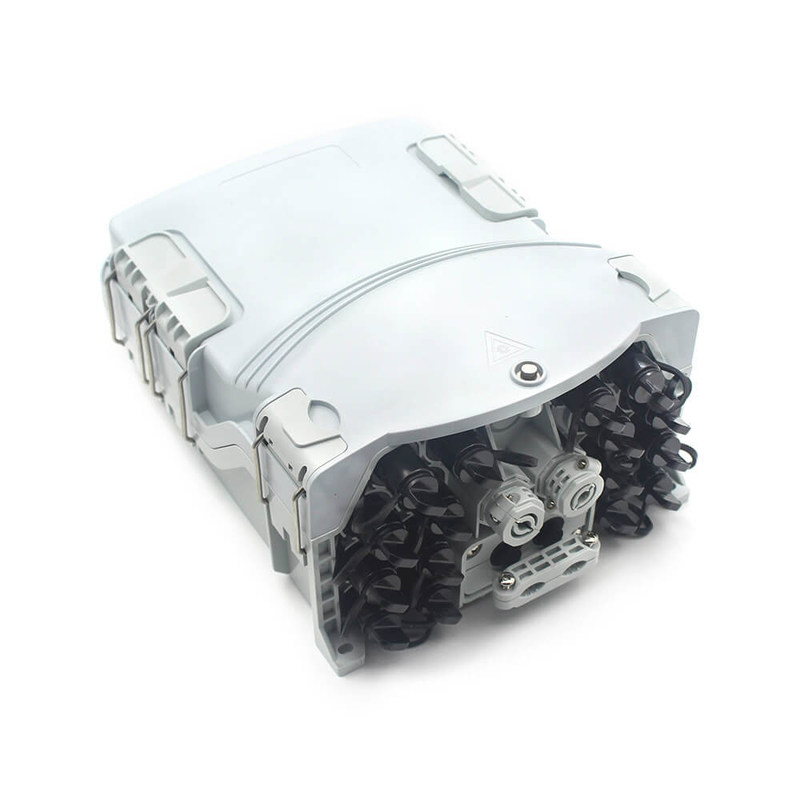

Waterproof FTTA Fiber Pre-connectorized Terminal Fast Connector Box 16 Ports
The Dowell Waterproof Terminal Box is FTTx communication network system. The fiber terminal box allows 16pcs round drop cable with pre-connectorized IP68 Mini SC Waterproof connectors as output ports. The fiber distribution box can splice and connect the optical fibers in pole or wall mounted & aerial mounted for both indoor and outdoor use with IP68 protection level.
Specification:
| Material |
PC+ABS, anti-aging, wet-proof |
| Protection Rating |
IP65 – Waterproof and Dustproof |
| Atmospheric Pressure |
70KPa to 106KPa |
| Insertion Loss |
≤ 0.15dB |
| Return Loss (UPC/APC) |
≥50 dB (UPC), ≥60 dB (APC) |
| Dimensions |
319.3 x 214 x 133 mm |
| Max Capacity |
48 fibers |
| Cable Entry Diameter |
8-14mm |
| Reinforced Adapter |
16 pcs SC/UPC or SC/APC |
Features:
1.1 Total Enclosed Protection:
Ensures reliable, long-term fiber protection with a fully enclosed, waterproof, and dustproof structure.
1.2 High-Quality PC+ABS Construction:
Built for durability, resistant to environmental wear, and suitable for both indoor and outdoor fiber cable distribution box
1.3 Integrated Cable Management:
Manages feeder and drop cables, fiber splicing, and distribution while keeping cable paths separate for optimal organization and performance.
1.4 Micro PLC Splitter Installation:
Compatible with micro-type PLC splitters, allowing for flexible network configurations.
1.5 Flip-Up Distribution Panel:
Designed for easy access to the feeder cable and components, simplifying fiber optic termination box
1.6 Versatile Mounting Options:
Offers both wall-mounted and pole-mounted installation for flexible deployment in various environments, supporting fiber distribution terminal.
Application:
2.1 FTTH and FTTx Network Applications: Suited for fiber-to-the-home deployments, supporting secure connections between feeder and drop cables.
2.2 Outdoor/Indoor Fiber Terminations: Waterproof and impact-resistant, ideal for outdoor and industrial environments.
2.3 Flexible Splicing and Distribution: Supports both 1×8 and 1×16 PLC splitters for efficient network expansion.
