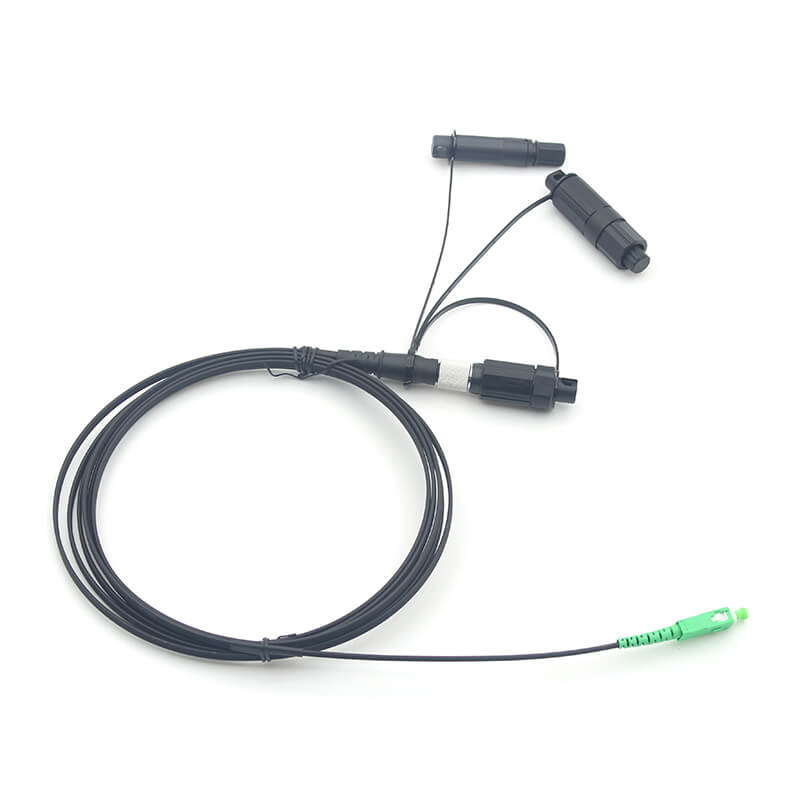

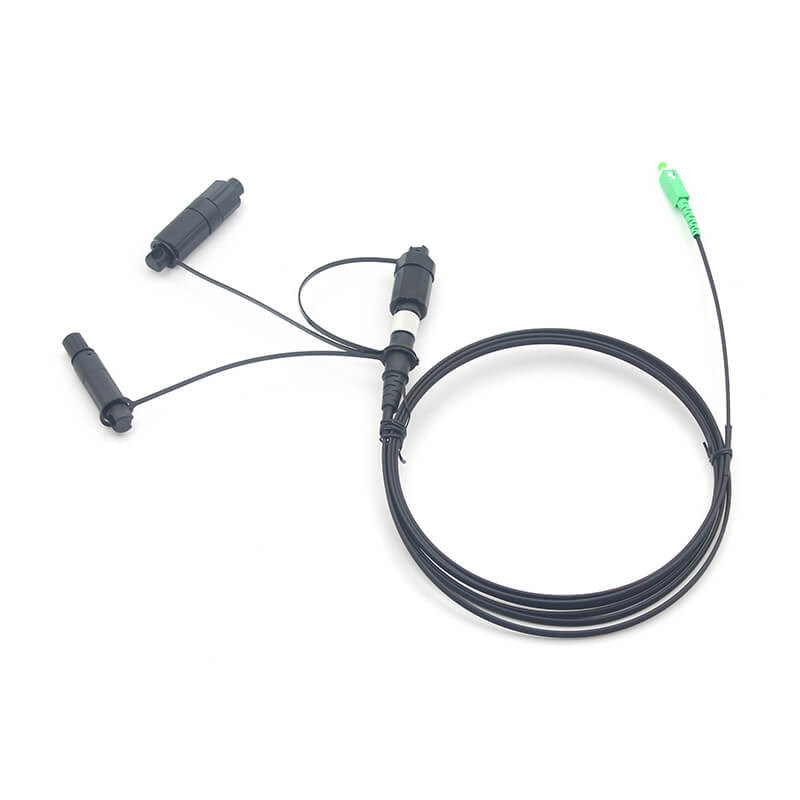

Fiber Optic SC-APC Polishing Type pre-terminated Drop Cables

Fiber Optic SC-APC Polishing Type pre-terminated Drop Cables

Dowell 3-in-1 Fast connector (Furukawa, Corning Optitap, Huawei Mini SC Compatible) is used on distribution boxes (adapters) and pre-terminated drop cables. It is compatible with SC-APC polishing type. the Triple-Compatible Fiber Optic Patch Cable is a high-performance, multi-brand connectivity solution designed for seamless integration with Huawei, Corning, and Furukawa optical network systems. This cable features a hybrid connector design compatible with three brands, ensuring flexibility and interoperability in diverse environments. It is engineered for high-speed data transmission, low signal loss, and long-term reliability, making it ideal for telecom, data centers, and enterprise networks.

Connector	Mini SC/Optitap/Slim	Polish	APC-APC
Fiber Mode	9/125μm, G657A2	Jacket Color	Black
Cable OD	2x3;2x5 3 ;5mm	Wavelength	SM:1310/1550nm
Cable Structure	Simplex	Jacket Material	LSZH/TPU
Insertion loss	≤0.3dB(IEC Grade C1)	Return loss	SM APC ≥ 60dB(min)

Mechanical and Characteristics:

Items	Unite	Specifications	Reference
Span Length	M	50M(LSZH)/80m(TPU)
Tension(Long Term)	N	150(LSZH)/200(TPU)	IEC 61300-2-4
Tension (Short Term)	N	300(LSZH)/800(TPU)	IEC 61300-2-4
Crush (Long Term)	N/10cm	100	IEC 61300-2-5
Crush (Short Term)	N/10cm	300	IEC 61300-2-5
Min. Bend Radius (Dynamic)	mm	20D
Min. Bend Radius (Static)	mm	10D

Features:

1.1 IP68 protection, salt-mist proof, humidity proof, dust proof.

1.2 Be suitable for connect Huawei Mini SC and Corning O and FuruKawa Slim adapt ptitap er.

1.3 For aerial, below ground and duct applications.

1.4 Meet the SC-APC standard of IEC61754-4.

1.5 With the functions of waterproof, dust-proof and corrosion resistance.

1.6 PEI material, Acid and alkali resistance, Ultraviolet resistance;

1.7 Outdoor use, 20-year service life;

Application:

2.1 Data Centers: High-density patching for switches, servers, and storage systems.

2.2 Telecommunication Networks: FTTH , ODN

2.3 Enterprise Networks: Campus/corporate backbone connectivity.

2.4 Industrial Environments: Factory automation, harsh-condition deployments.

2.5 Broadcast & CATV: High-bandwidth signal transmission.
