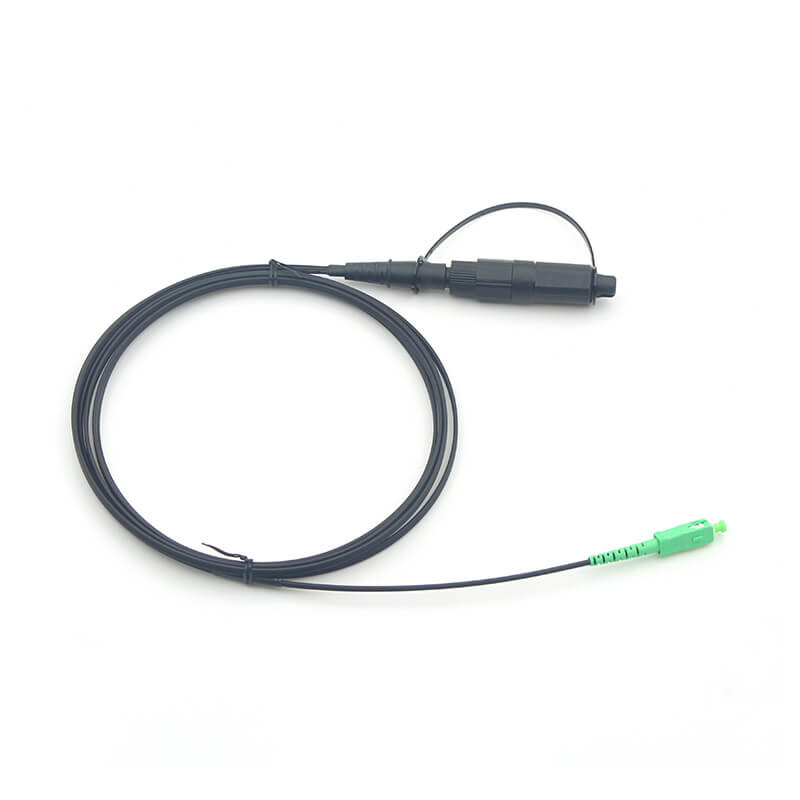

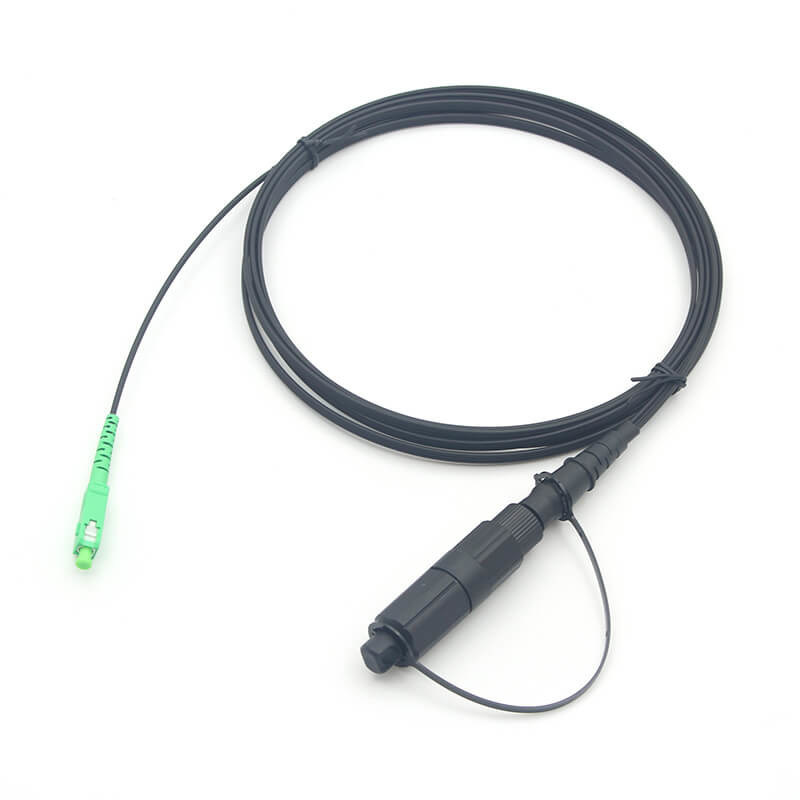

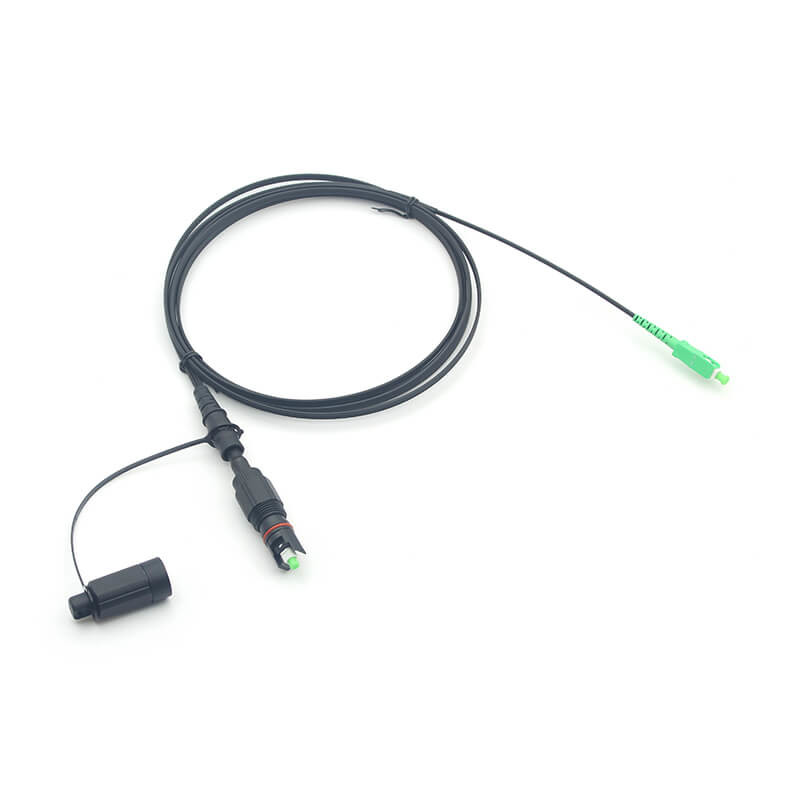

SC APC Optitap Connector Fiber Optic Drop Cable 2.0x3.0mm 3.0mm 5.0mm For FTTx Solutions

SC APC Optitap Connector Fiber Optic Drop Cable 2.0x3.0mm 3.0mm 5.0mm For FTTx Solutions

Dowell FTTH Drop cable assemblies with Optitap connectors combine the simple installation offered by standard FTTH Drop cable, which are designed for rugged outdoor environments, and the flexibility of compact drop cables, which are designed for challenging indoor environments where bend-tolerance is a concern. The design features a gel-free, fully waterblocked, UV-resistant 2.9 mm riser-rated (OFNR) drop cable centered inside a traditional Drop dielectric cable.

Connector	Optitap SC/APC	Polish	APC-APC
Fiber Mode	9/125μm, G657A2	Jacket Color	Black
Cable OD	2x3;2x5 3 ;5mm	Wavelength	SM:1310/1550nm
Cable Structure	Simplex	Jacket Material	LSZH/TPU
Insertion loss	≤0.3dB(IEC Grade C1)	Return loss	SM APC ≥ 60dB(min)

End-Face Quality(Single-mode):

Zone	Range(mm)	Scratches	Defects	Reference
A:Core	0 to 25	None	None	IEC 61300-3-35:2015
B:Cladding	25 to 115	None	None
C:Adhesive	115 to 135	None	None
D:Contact	135 to 250	None	None
E:Rest of ferrule		None	None

Features:

1.1 Multiple fiber lengths to meet all your FTTX design drop deployment.

1.2 Suitable for FTTA and outdoor temperature extremes

1.3 Easy connection to hardended adapters on terminals or closures.

1.4 Superior weather resistance for FTTA and other outdoor applications.

1.5 Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters

1.6 IP67/68 protection rating for submersion resistance (up to 1m depth for 30 minutes).

1.7 Compatible with standard SC adapters and Huawei ODN equipment.

1.8 Meets IEC 61753-1, IEC 61300-3-34, and Telcordia GR-326-CORE.

Application​:

2.1 5G Networks: Waterproof connections for RRUs, AAUs, and outdoor base stations.

2.2 FTTH/FTTA: Distribution cabinets, splice closures, and drop cables in harsh environments.

2.3 Industrial IoT: Ruggedized links for factories, mining, and oil/gas facilities.

2.4 Smart Cities: Traffic control systems, surveillance networks, and streetlight communications.

2.5 Data center system networks.
