HUAWEI Mini SC Waterproof Quick Field Assembly FTTH Connector

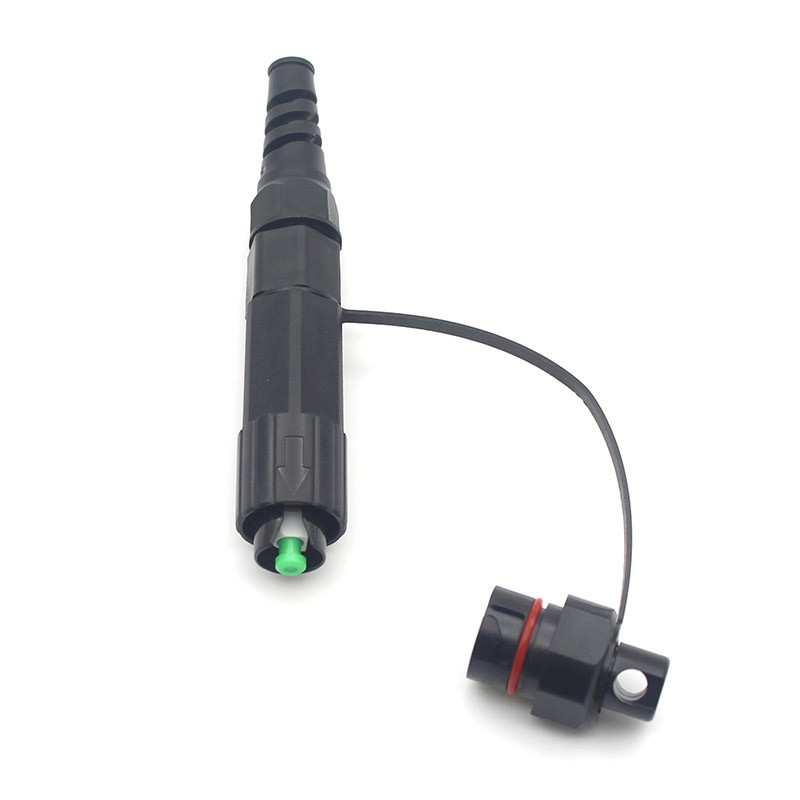

Large Image : HUAWEI Mini SC Waterproof Quick Field Assembly FTTH Connector

Product Details:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW-HWF-SC

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 PCS Per 7 Days

Contact Now

HUAWEI Mini SC Waterproof Quick Field Assembly FTTH Connector

Description

Insertion Loss:	≤0.50dB	Return Loss:	≥55dB
Connector Type:	SC/APC	Ferrule Material:	Full Ceramic Zirconia
Waterproof Rating:	IP68 (1M, 1 Hour)	Cable Compatibility:	2.0×3.0 Mm, 3.0 Mm, 5.0 Mm
Highlight:	SC Field Assembly Fast Connector , Waterproof Field Assembly Fast Connector , Mini IP68 fiber quick connector

Mini SC IP68 Waterproof Field Assembly Fast Connector

The Huawei Compatible Mini SC Waterproof Field Assembly Reinforced FTTH Connector is a robust, field-installable solution designed to support secure, high-performance single-fiber SC connections in outdoor environments. Engineered for flexibility and durability, it features an IP68-rated sealed design, a bayonet-style latch, and a push-pull insertion mechanism for tool-free, quick installation. Compatible with multiple cable types and systems, this connector ensures stable performance in fiber optic networks subjected to extreme environmental conditions. Its compact, hardened design minimizes splicing, reduces maintenance needs, and guarantees reliable connections for years to come.

Specification:

Parameter	Specification
Waterproof Rating	IP68 (1M, 1 hour)
Cable Compatibility	2.0×3.0 mm, 3.0 mm, 5.0 mm
Insertion Loss	≤0.50dB
Return Loss	≥55dB
Mechanical Durability	1000 cycles
Cable Tension	2.0×3.0 mm, 3.0 mm: ≥30N; 5.0 mm: ≥70N
Drop Performance	Survives 10 drops from 1.5 m
Connector Type	SC/APC
Ferrule Material	Full ceramic zirconia

Features:

1.1 IP68 Waterproof Design: Provides excellent water, dust, and corrosion resistance.
1.2 Quick Field Installation: Tool-free assembly with a push-pull insertion mechanism.
1.3 Durable Material: PEI construction for UV, acid, and alkali resistance.
1.4 Wide Cable Compatibility: Supports both flat and round cables, including 2.0mm, 3.0mm, and 5.0mm options.
1.5 High Reliability: Withstands up to 1,000 insertion cycles and cable tension up to 70N.

Application:

2.1 FTTH and FTTA networks for outdoor fiber connections.

2.2 Telecom networks, including 5G base stations.

2.3 Industrial and military communication in harsh environments.

2.4 Video surveillance and broadband data transmission.

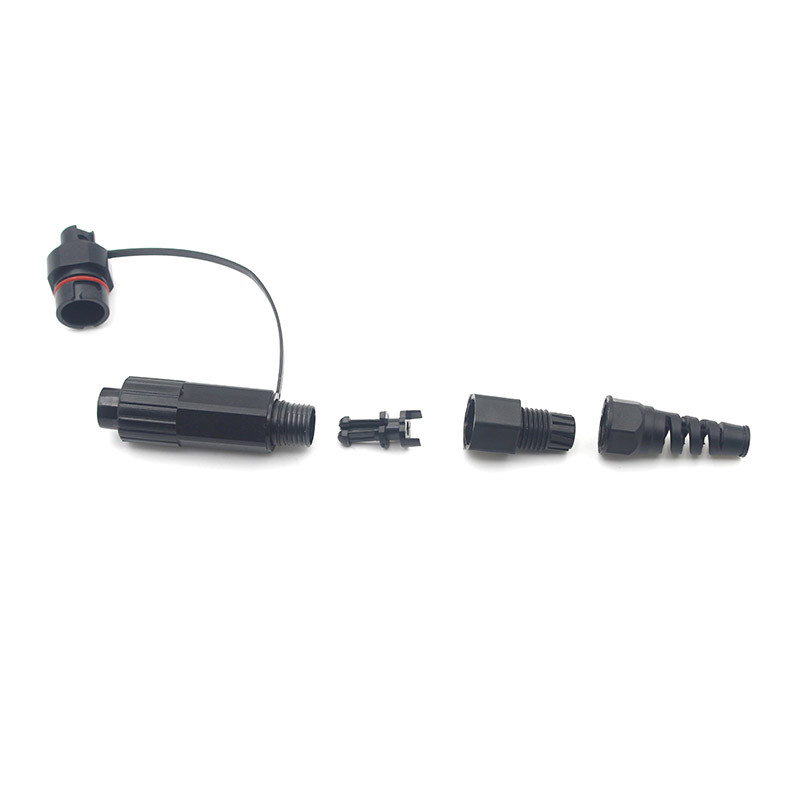

Structure:
