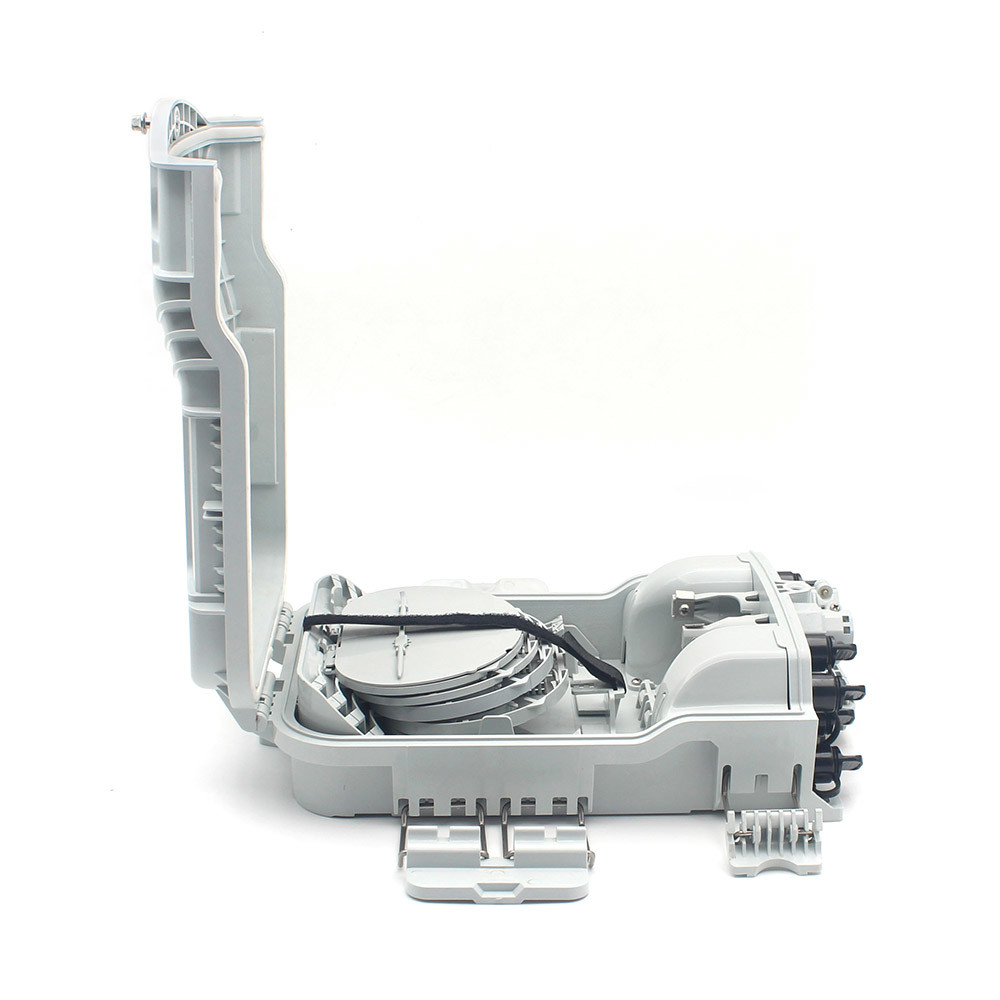

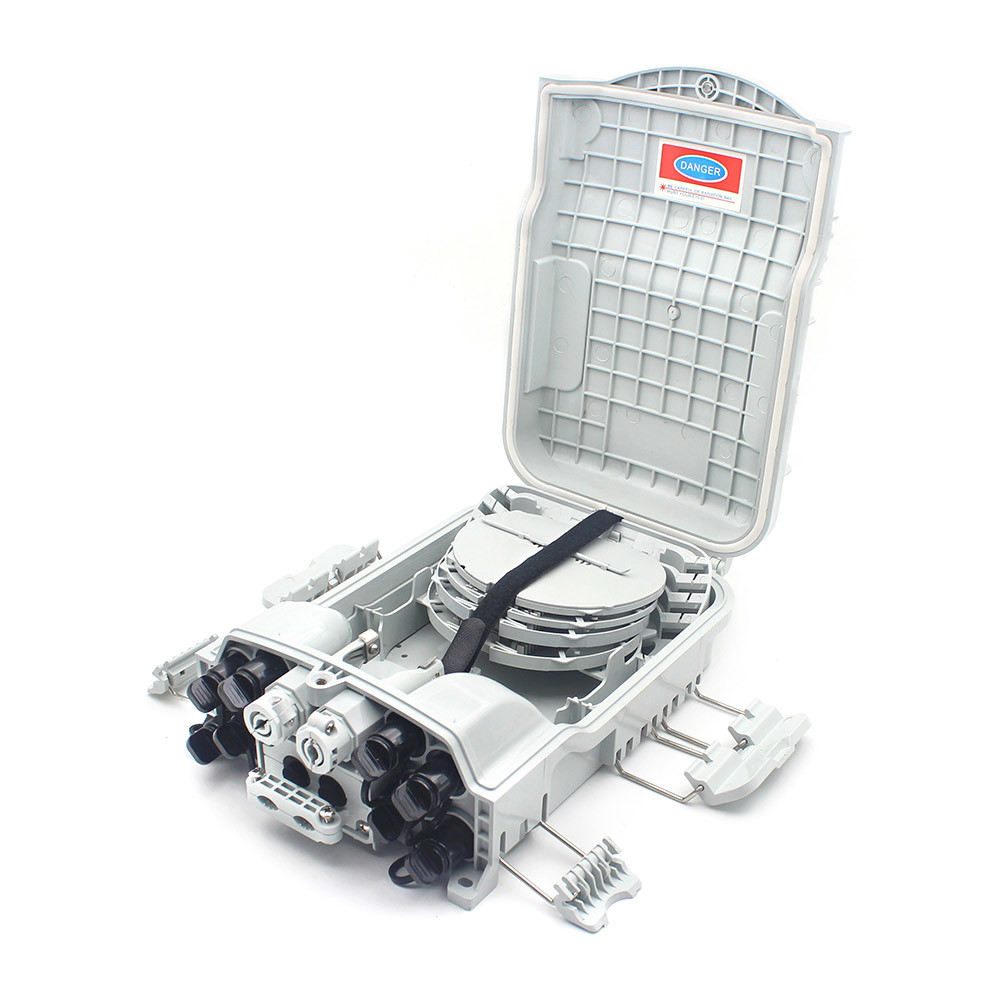

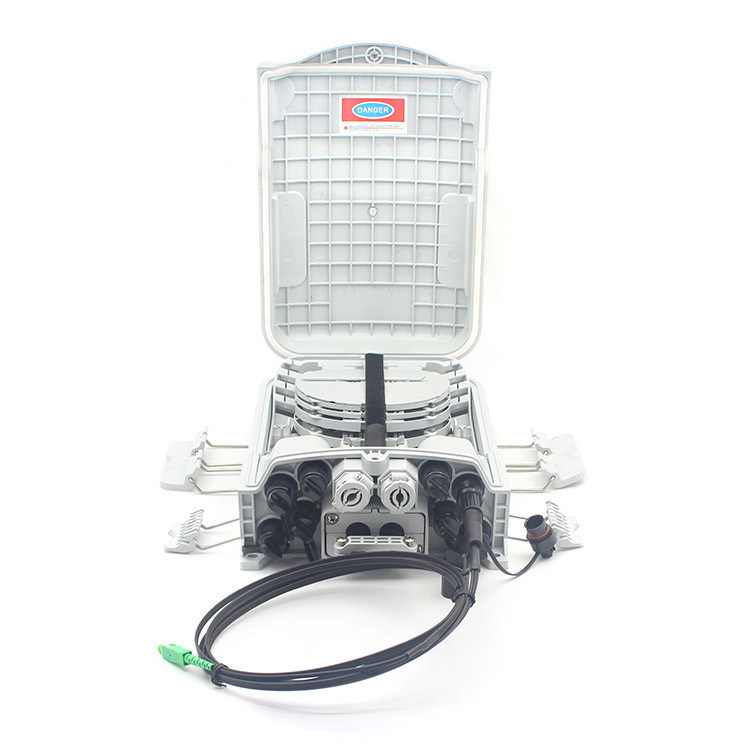

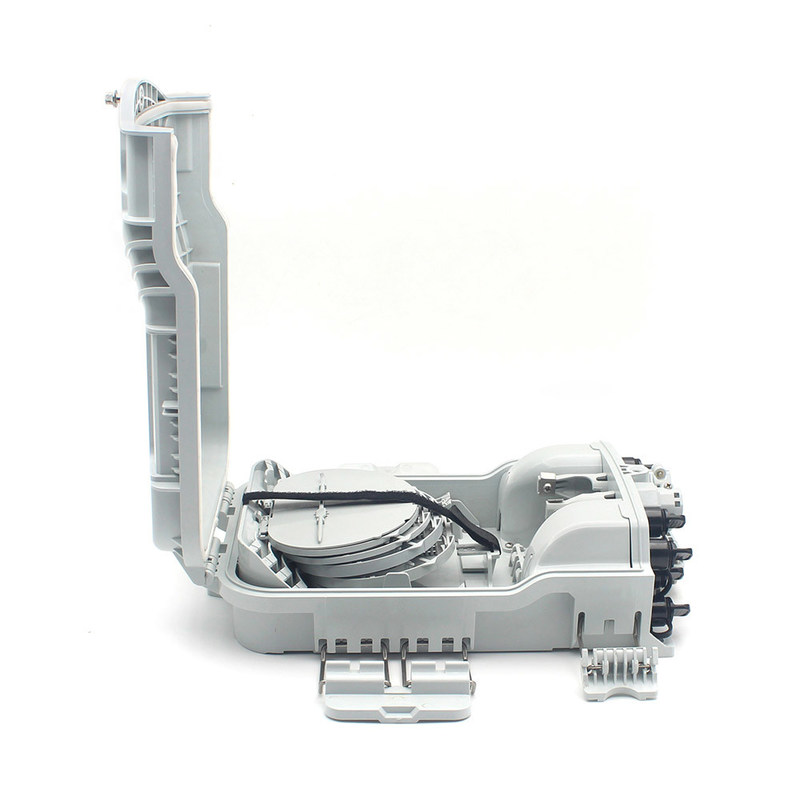

Outdoor Fiber Access Terminal Fast Connector Box In FTTA

Outdoor Fiber Access Terminal Fast Connector Box In FTTA
Outdoor Fiber Access Terminal Fast Connector Box In FTTA Outdoor Fiber Access Terminal Fast Connector Box In FTTA Outdoor Fiber Access Terminal Fast Connector Box In FTTA

Large Image :  Outdoor Fiber Access Terminal Fast Connector Box In FTTA

Product Details:
Place of Origin: China
Brand Name: DOWELL
Model Number: DW-FTTA-16P
Payment & Shipping Terms:
Minimum Order Quantity: 500
Delivery Time: 5-15 days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs Per 7 days
Contact Now

Outdoor Fiber Access Terminal Fast Connector Box In FTTA

Description
Material: PC+ABS, Anti-aging, Wet-proof Protection Rating: IP65 – Waterproof And Dustproof
Operating Temperature: -40°C To +85°C Relative Humidity: ≤85% (at +30°C)
Atmospheric Pressure: 70KPa To 106KPa Insertion Loss: ≤ 0.15dB
Highlight:

Outdoor Fiber Access Terminal Box

,

FTTA Outdoor Fiber Access Terminal

,

Fast Connector Outdoor Fiber Access Terminal

FTTA Fiber Access Terminal Fast Connector Box
The Dowell Waterproof Terminal Box is a robust, environmentally sea 16 Port led fiber distribution solution designed for outdoor and harsh-environment fiber optic network deployments. This fiber optic distribution box provides secure splicing, storage, and distribution of up to 8 or 16 fiber cores, ensure reliable connectivity for FTTH(Fiber-to-the-Home), 5G networks, and industrial applications. With an IP68-rated waterproof and dust-proof design, it protects critical fiber connections from moisture, temperature extremes, and mechanical stress. modular structure supports easy fiber management, make it ideal for aerial, underground, or pole-mounted installations.
Specification:
Parameter Specification
Material PC+ABS, anti-aging, wet-proof
Protection Rating IP65 – Waterproof and Dustproof
Atmospheric Pressure 70KPa to 106KPa
Insertion Loss ≤ 0.15dB
Return Loss (UPC/APC) ≥50 dB (UPC), ≥60 dB (APC)
Max Capacity 48 fibers
Cable Entry Diameter 8-14mm
Branch Hole Diameter Maximum 16mm
Reinforced Adapter 16 pcs SC/UPC or SC/APC
Installation Pole mounting,Strand mounting,Wall-mounting
Features:
1.1 Total Enclosed Protection:
Ensures reliable, long-term fiber protection with a fully enclosed, waterproof, and dustproof structure.
1.2 High-Quality PC+ABS Construction:
Built for durability, resistant to environmental wear, and suitable for both indoor and outdoor fiber cable distribution box
1.3 Integrated Cable Management:
Manages feeder and drop cables, fiber splicing, and distribution while keeping cable paths separate for optimal organization and performance.
1.4 Micro PLC Splitter Installation:
Compatible with micro-type PLC splitters, allowing for flexible network configurations.
1.5 Flip-Up Distribution Panel:
Designed for easy access to the feeder cable and components, simplifying fiber optic termination box Versatile Mounting Options: Offers both wall-mounted and pole-mounted installation for flexible deployment in various environments, supporting fiber distribution terminal.
Application:
2.1 FTTx Communication Networks:
A reliable termination and distribution solution for fiber-to-the-home (FTTH) networks, facilitating fiber access for residential and commercial users.
2.2 Commercial Buildings:
Suitable for high-density fiber installations, such as in fiber distribution boxes and optical fiber terminal boxes for structured cabling in business complexes.
2.3 Outdoor Fiber Networks:
With IP65-rated protection, it’s ideal for exposed environments, ensuring connectivity in outdoor setups, including fiber optic cable terminal box.
Application
A
