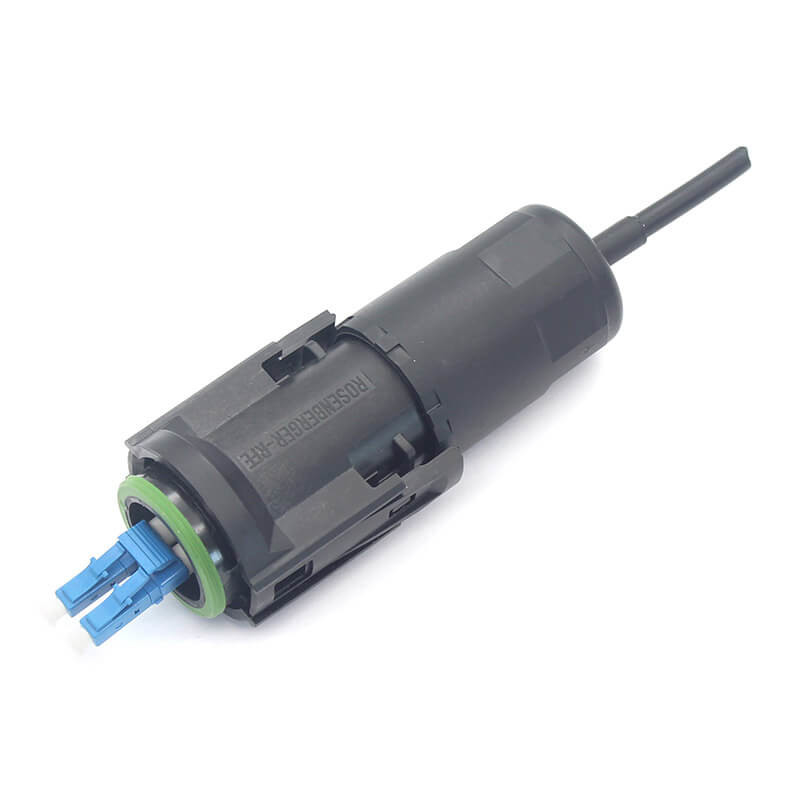

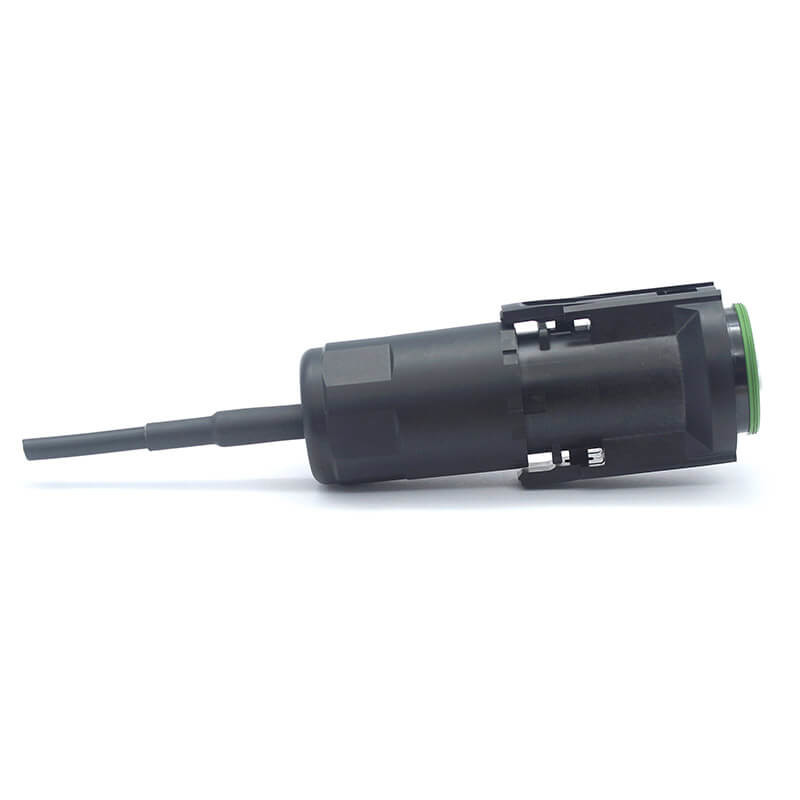

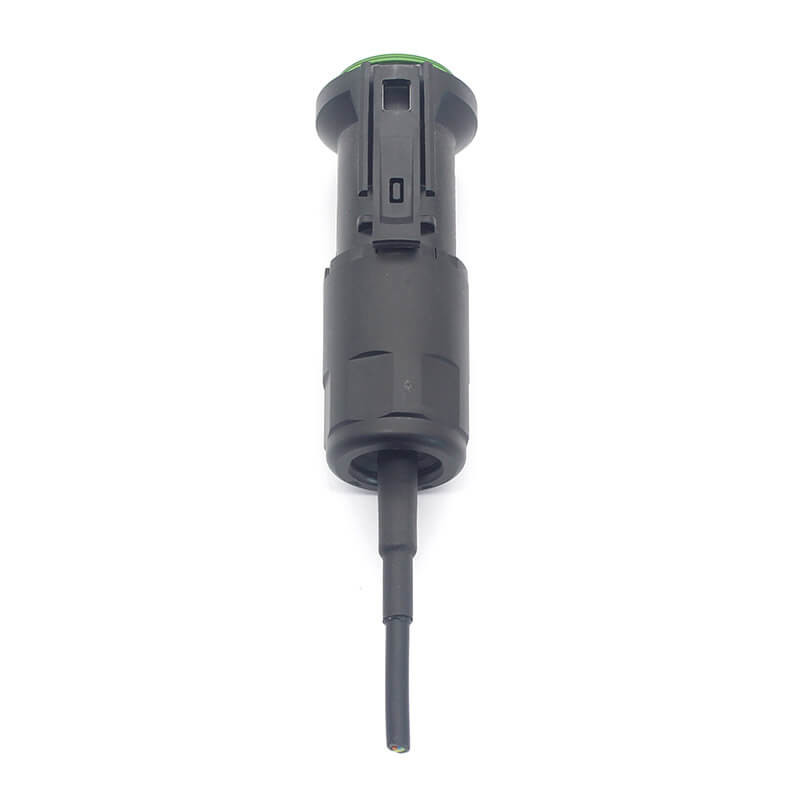

Duplex LC UPC RFE Waterproof Reinforced Connector

Large Image : Duplex LC UPC RFE Waterproof Reinforced Connector

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-RFE-CN

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	5000 PCS Per 7 Days

Contact Now

Duplex LC UPC RFE Waterproof Reinforced Connector

Description

Interface:

LC Interface

Adapter Footprint:

36mm X 36mm

Protection Class:

IP67

Duplex LC Interconnect:

MM Or SM

Highlight:

duplex lc fiber connector

duplex waterproof fiber optic connector

lc waterproof fiber optic connector

Duplex LC UPC RFE Waterproof Reinforced Connector

To meet the needs of the next generation WiMax and long term evolution (LTE) fiber to the antenna (FTTA) connection design for outdoor use harsh requirements, has released the RFE connector system, which provides the remote radio between the SFP connection and the base station, used for Telecom applications. This new product to adapt the SFP transceiver provides the most widely in the market, so that end users can choose to meet the specific requirements of the transceiver system.

Specification:

Parameter	Standard
Temperature	40°C – +85°C
Cycles	50 Mating Cycles
Protection Class/Rating	IP67
Mechanical Retention	150 N cable retention
Interface	LC interface
Adapter Footprint	36 mm x 36 mm
Duplex LC Interconnect	MM or SM
Tools	No tools required

Application:
