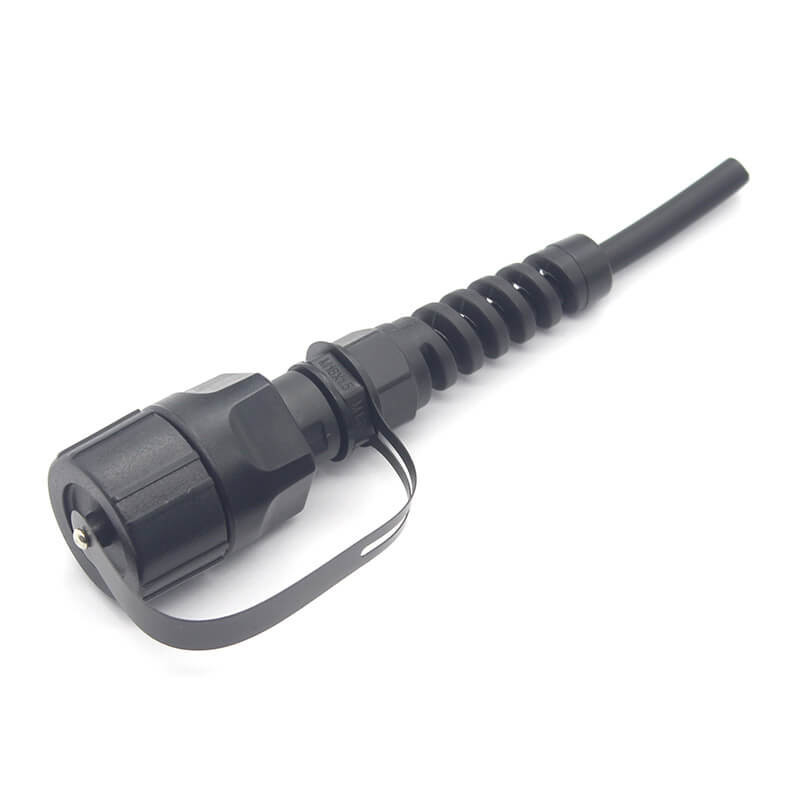

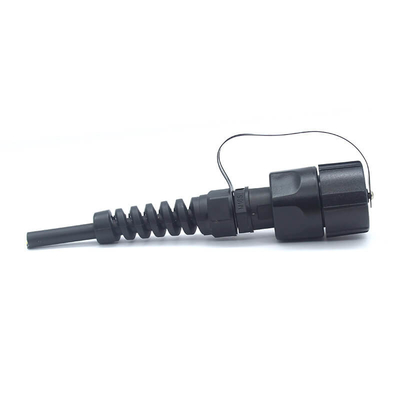

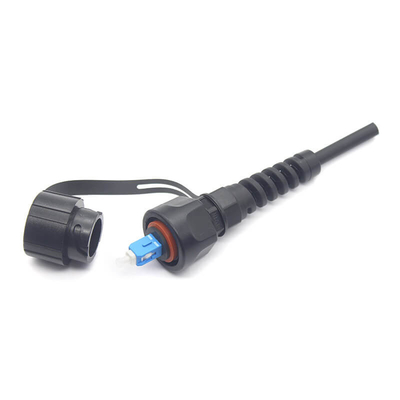

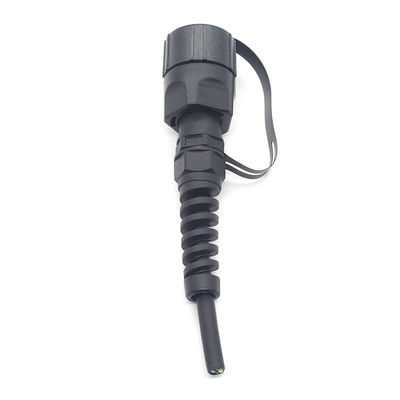

Simplex SC UPC ODVA Waterproof Reinforced Connector

Simplex SC UPC ODVA Waterproof Reinforced Connector
Simplex SC UPC ODVA Waterproof Reinforced Connector
Simplex SC UPC ODVA Waterproof Reinforced Connector Simplex SC UPC ODVA Waterproof Reinforced Connector Simplex SC UPC ODVA Waterproof Reinforced Connector Simplex SC UPC ODVA Waterproof Reinforced Connector Simplex SC UPC ODVA Waterproof Reinforced Connector

Large Image :  Simplex SC UPC ODVA Waterproof Reinforced Connector

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-ODVAS-CN
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5000 PCS Per 7 Days
Contact Now

Simplex SC UPC ODVA Waterproof Reinforced Connector

Description
Interface: SC Interface Adapter Footprint: 36mm X 36mm
SC Interconnect: MM Or SM Protection Class: Protection Class
Highlight:

simplex lc fiber connector

,

simplex waterproof fiber optic connector

,

sc lc fiber connector

Simplex SC UPC ODVA Waterproof Reinforced Connector

The water-resistant SC Series connectors provide increased protection from contamination and moisture in addition to mechanical stability, temperature resistance and vibration immunity. The connectors use OFNR (optical fiber nonconductive riser) breakout cables rated for outdoor usage. The IP67-rated SC Series connector’s features a 1/6th turn bayonet coupling for a fast and secure mate/unmated, even with gloved hands. The compact SC Series connectors are also compatible with industry standard cables and interconnect products.

Specification:

Parameter Standard
Temperature 40°C – +85°C
Cycles 50 Mating Cycles
Protection Class/Rating IP67
Mechanical Retention 150 N cable retention
Interface SC interface
Adapter Footprint 36 mm x 36 mm
SC Interconnect MM or SM
Tools No tools required

Application:

Simplex SC UPC ODVA Waterproof Reinforced Connector 0

Simplex SC UPC ODVA Waterproof Reinforced Connector 1

More Related Poducts:

Simplex SC UPC ODVA Waterproof Reinforced Connector 2
