Detail Information

Tensile Strength:	≥18Mpa	Ultimate Elongation:	700%
Density:	0.94 G/cm2	Dielectric Strength:	20KV/mm
Dielectric Constant:	2.5max	Longitudinal Change:	±5%

Product Description

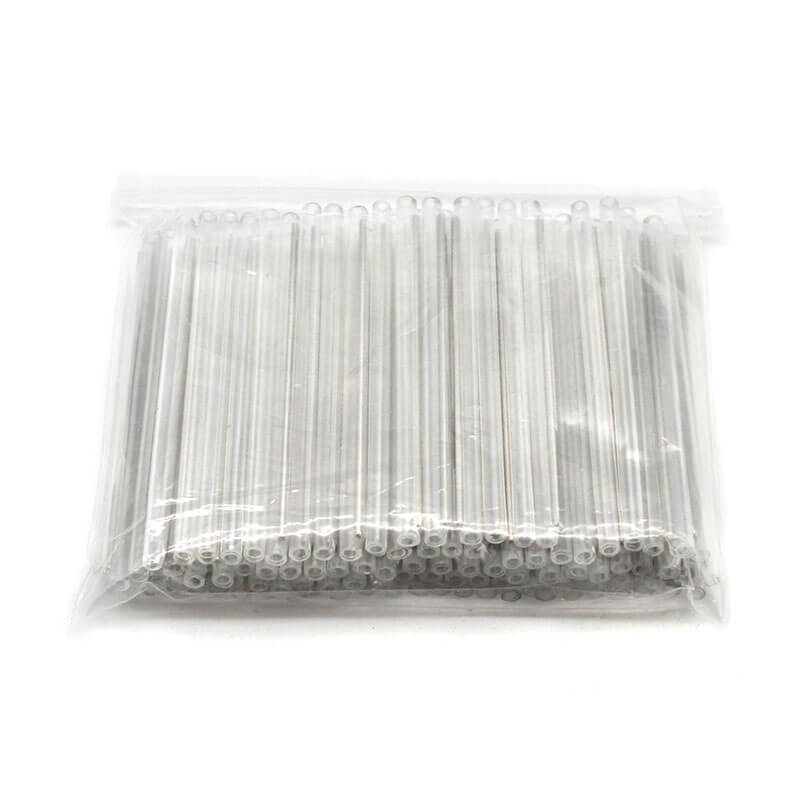

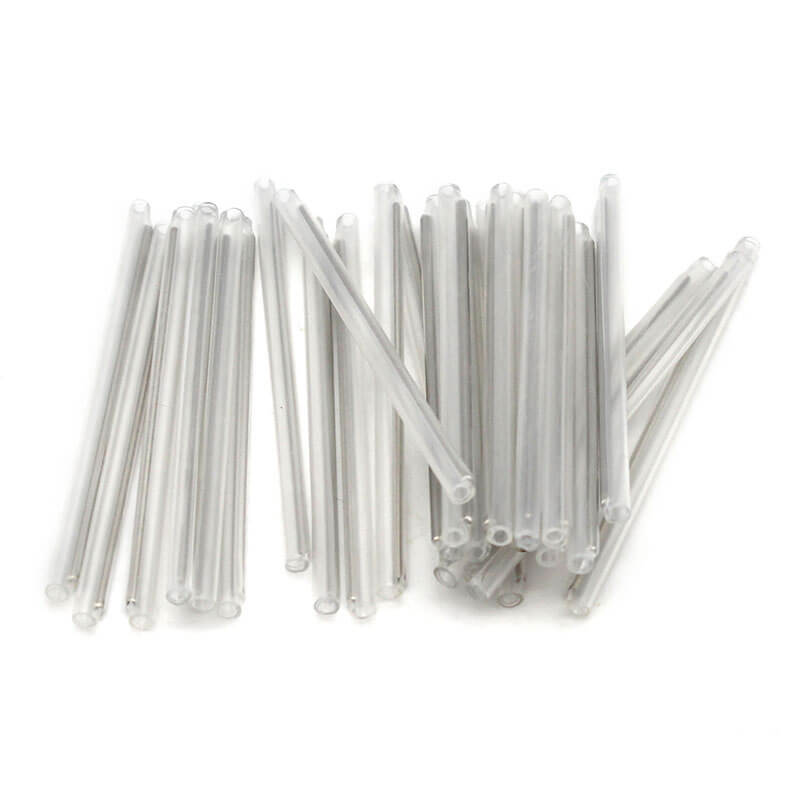

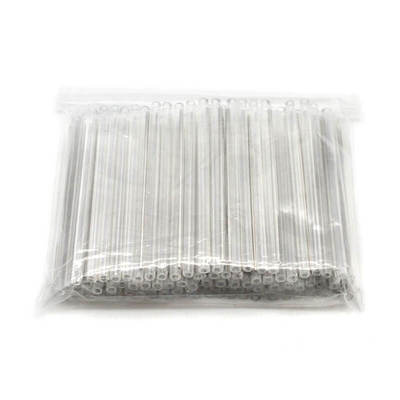

40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube

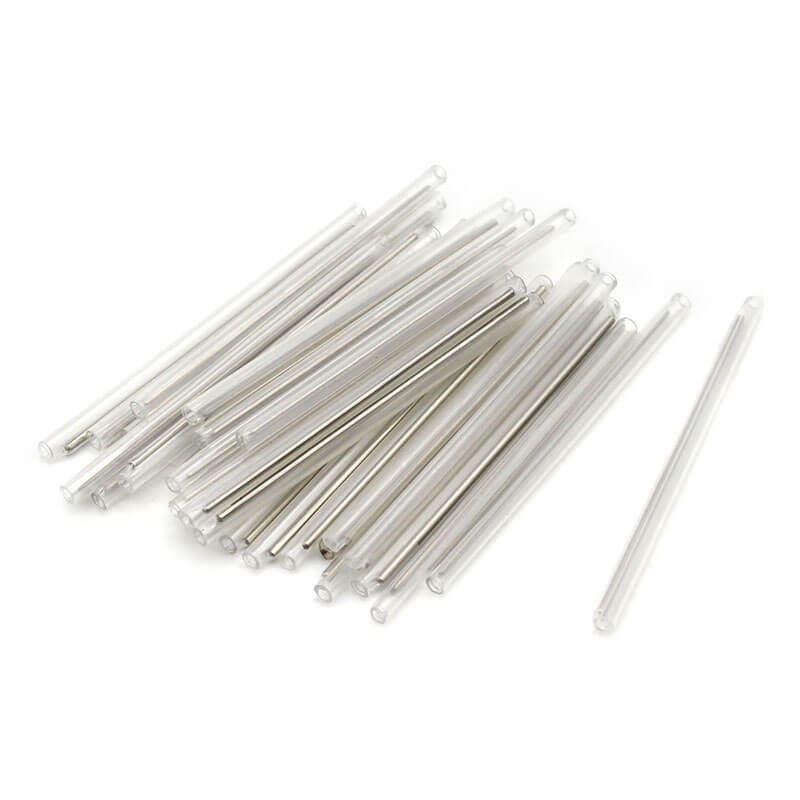

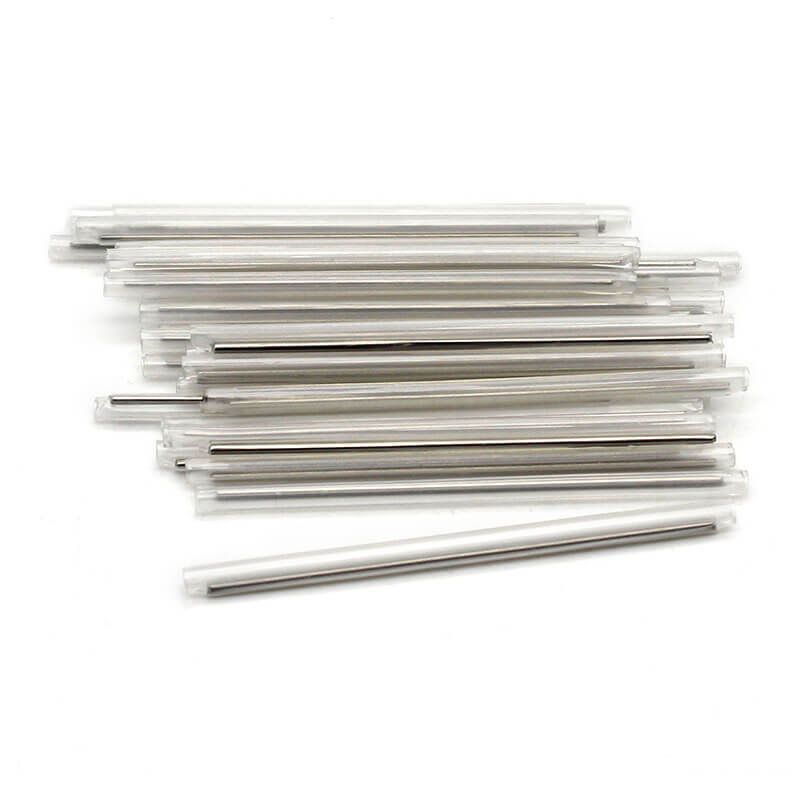

Consist of cross-linked polyolefin, Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage. Sealing structure make the splice free from influence of temperature and humidity in special environment.

Specification:

Standard color	Clear
Tensile Strength	≥18Mpa
Ultimate Elongation	700%
Density	0.94 g/cm2
Dielectric Strength	20KV/mm
Dielectric Constant	2.5max
Longitudinal Change	±5%

Features:

1.1 Working Temperature: -45~ 110℃

1.2 Shrinking temperature range: 120 ℃

1.3 Standard color: Clear

1.4 Other 12 colors available: White, Blue, Grey, Yellow, Brown, Black, Orange, Pink, Red, Cyan, Green, Purple

40mm 60mm Heat Shrinkable Fiber Optic Splicing Sleeves Tube 0

Single Fiber(mm):

Model	Splice Protection Sleeves (After Shrinking)		Fusion Tubing		Steel Rod
	Outer Diameter (±0.2)	Length (±1)	Inner Diameter (±0.1)	Length (±1)	Outer Diameter (±0.1)	Length (±1)
DWFP-H-61x1.5x3.0	3.0	61	1.5	61	1.5	55
DWFP-H-45x1.5x3.0	3.0	45	1.5	45	1.5	40
DWFP-H-40x1.5x3.0	3.0	40	1.5	40	1.5	35
DWFP-H-25x1.5x3.0	3.0	25	1.5	25	1.5	20
DWFP-H-61x1.2x2.6	2.6	61	1.5	61	1.2	55
DWFP-H-45x1.2x2.6	2.6	45	1.5	45	1.2	40
DWFP-H-40x1.2x2.6	2.6	40	1.5	40	1.2	35
DWFP-H-25x1.2x2.6	2.6	25	1.5	25	1.2	20
DWFP-H-61x1.0x2.4	2.4	61	1.5	61	1.0	55
DWFP-H-45x1.0x2.4	2.4	45	1.5	45	1.0	40
DWFP-H-40x1.0x2.4	2.4	40	1.5	40	1.0	35
DWFP-H-25x1.0x2.4	2.4	25	1.5	25	1.0	20
DWFP-H-40x0.8x2.2	2.2	40	1.5	40	0.8	40
DWFP-H-25x0.8x2.2	2.2	25	1.5	25	0.8	25
DWFP-H-18x0.8x2.2	2.2	18	1.5	18	0.8	18
DWFP-H-40x0.5x1.3	1.3	40	0.35	40	0.5	40
DWFP-H-25x0.5x1.3	1.3	25	0.35	25	0.5	25
DWFP-H-18x0.5x1.3	1.3	18	0.35	18	0.5	18
DWFP-E-61x1.5x3.0	3.0	61	1.5	61	1.5	55
DWFP-E-45x1.5x3.0	3.0	45	1.5	45	1.5	40
DWFP-E-40x1.5x3.0	3.0	40	1.5	40	1.5	35
DWFP-E-25x1.5x3.0	3.0	25	1.5	25	1.5	20
DWFP-E-61x1.2x2.6	2.6	61	1.5	61	1.2	55
DWFP-E-45x1.2x2.6	2.6	45	1.5	45	1.2	40
DWFP-E-40x1.2x2.6	2.6	40	1.5	40	1.2	35
DWFP-E-25x1.2x2.6	2.6	25	1.5	25	1.2	20
DWFP-E-61x1.0x2.4	2.4	61	1.5	61	1.0	55
DWFP-E-45x1.0x2.4	2.4	45	1.5	45	1.0	40
DWFP-E-40x1.0x2.4	2.4	40	1.5	40	1.0	35
DWFP-E-25x1.0x2.4	2.4	25	1.5	23	1.0	20
DWFP-E-40x0.8x2.2	2.2	40	1.5	40	0.8	40
DWFP-E-25x0.8x2.2	2.2	25	1.5	25	0.8	25
DWFP-E-18x0.8x2.2	2.2	18	1.5	18	0.8	18

Notes: DWFP-H: High quality level (same as Tyco SMOUV)

DWFP-E: Economical Quality Level

Tag:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW-1037

Minimum Order Quantity:	10000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000 PCS Per 7 Days
