One Full Pair U1R2 Ur Butt Splice Moisture Resistant With Inline Connector

Basic Information

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-5042-3

Minimum Order Quantity:	10000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100000 PCS Per 7 Days

Get Best Price Contact Now

Detail Information

Connector Type:

Inline

Special Feature:

Gel-filled For Moisture Resistance

Maximum Insulation:

0.091″ (2.30mm)

AWG (mm²) Wire Range:

19-24 (0.9-0.5 Mm)

Highlight:

Moisture Resistant Ur Butt Splice

Moisture Resistant 3m butt connectors

Ur Butt Splice With Inline Connector

Product Description

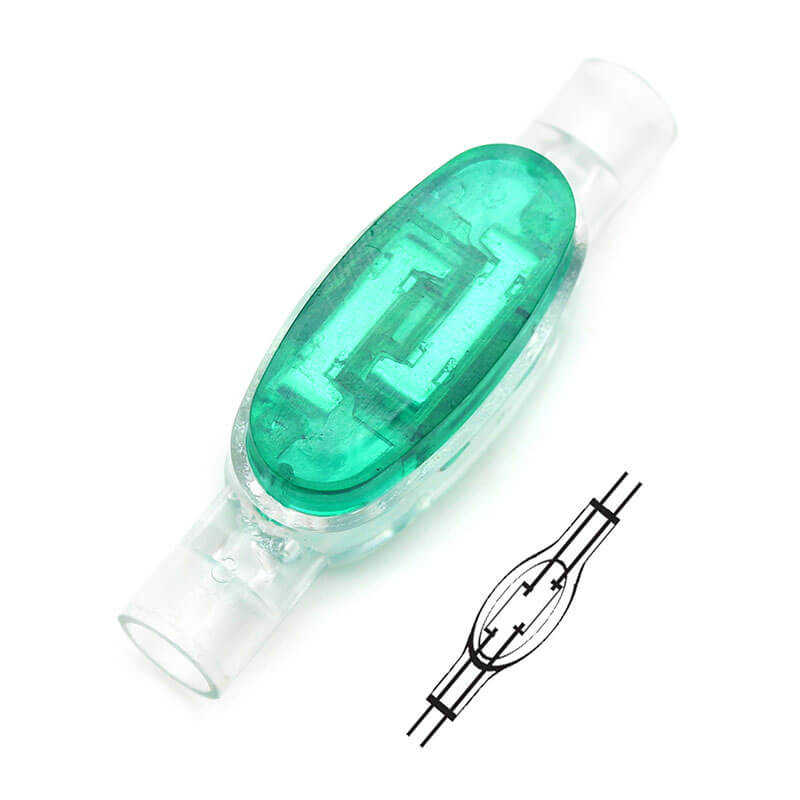

One Full Pair U1R2 Copper Wire Connoector Moisture Resistance

The U1R2 is a four wire (one full pair) inline connector for solid copper wire. It is gel filled for moisture resistance and for PIC cable applications. It accepts conductors with wirer ange of 0.5-0.9mm (19-24 AWG) and insulation outside diameter up to 2.30mm/0.091″. It is made of polycarbonate.

Specification:

Connector Type	Inline	Special Feature	Gel-filled for moisture resistance
Maximum Insulation	0.091″ (2.30mm)	AWG (mm²) Wire Range	19-24 (0.9-0.5 mm)
Color	Green

Application:

1. Gel-filled for moisture resistance and for PIC cable application

2. For making secure connection for four wire applications

Package:

Packing: 10pcs/bag, 100pcs/box, 1000pcs/cs.

Size: 41*28.5*22cm

G.W.: 7.0kg(15.4 lbs.)/cs.
