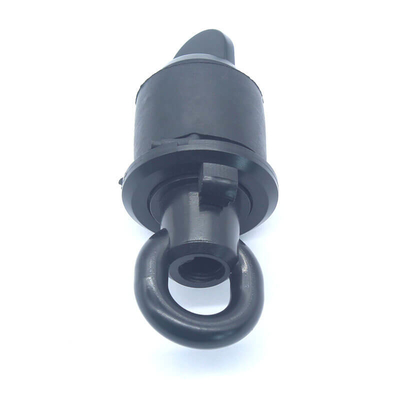

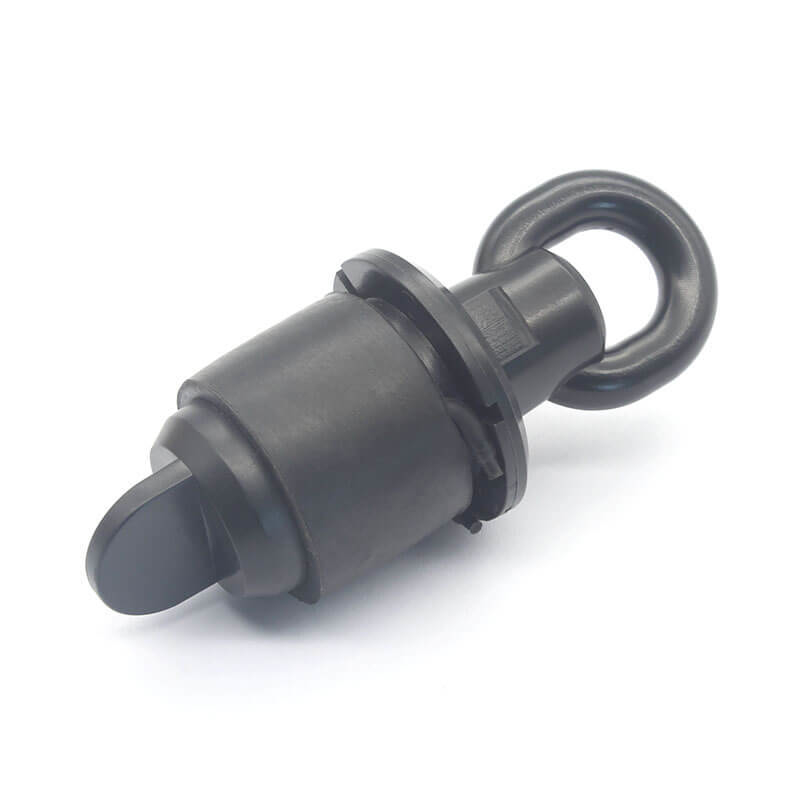

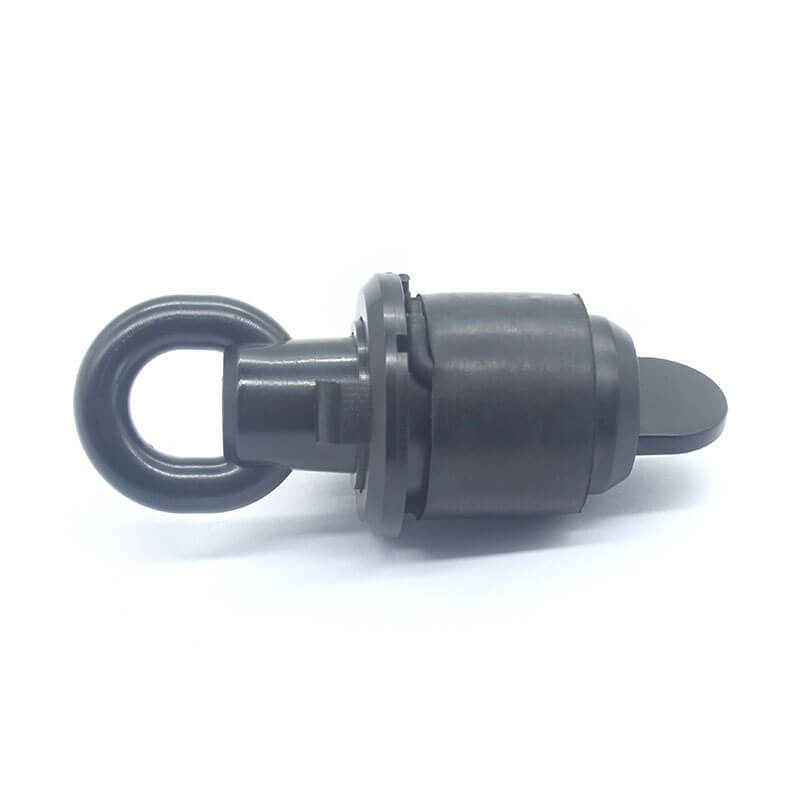

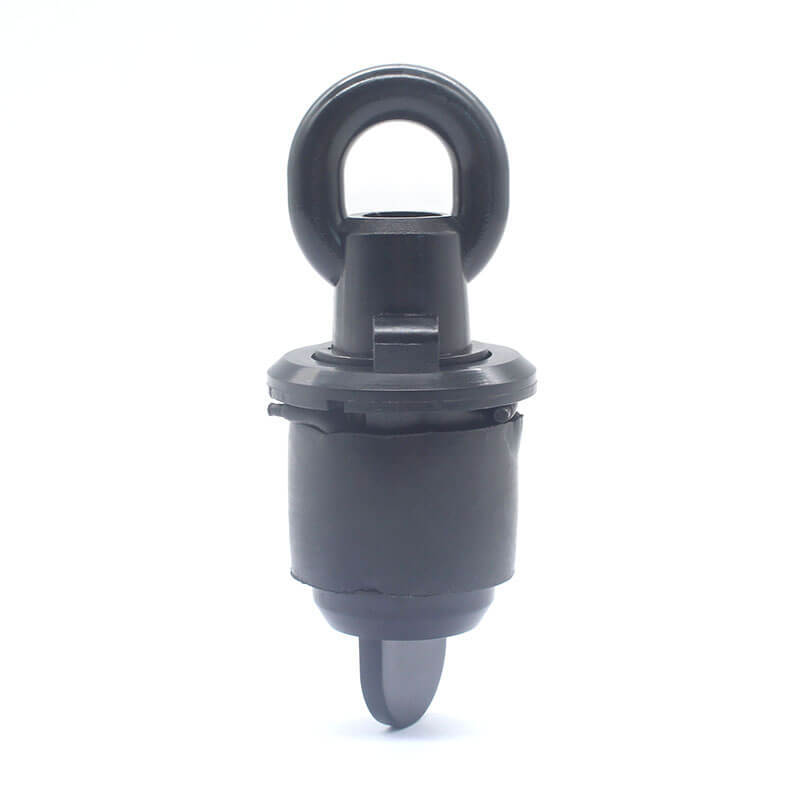

Black Expanding Duct Plug for HDPE Silicon Duct

Large Image : Black Expanding Duct Plug for HDPE Silicon Duct

Product Details:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW-EDP

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	500 PCS Per 7 Days

Contact Now

Black Expanding Duct Plug for HDPE Silicon Duct

Description

Black Expanding Duct Plug for HDPE Silicon Duct

Blank duct plugs effectively seal conduits to reduce the cost of cable placement and maintenance in new underground construction projects and routine work. These plugs prevent the flow of water and the costly sedimentation of duct banks and conduit systems while confining problems of

dangerous vapors to their source.

Specification:

Size	Duct OD/mm	Sealing/mm
DW-EDP32	32	25.5-29
DW-EDP40	40	29-38
DW-EDP50	50	37.5-46.5

Features:

1.1 High-impact plastic components, combined with durable elastic gaskets

1.2 Corrosion proof and effective as long-term or temporary seals

1.3 Water-tight and gas-tight

1.4 Equipped with a rope tie device to allow the securing of pull rope to the plug's back compression plate

1.5 Removable and reusable

Available for Duct:

Φ32/ 26mm, Φ40/ 33mm, Φ60/ 50mm

Application:
