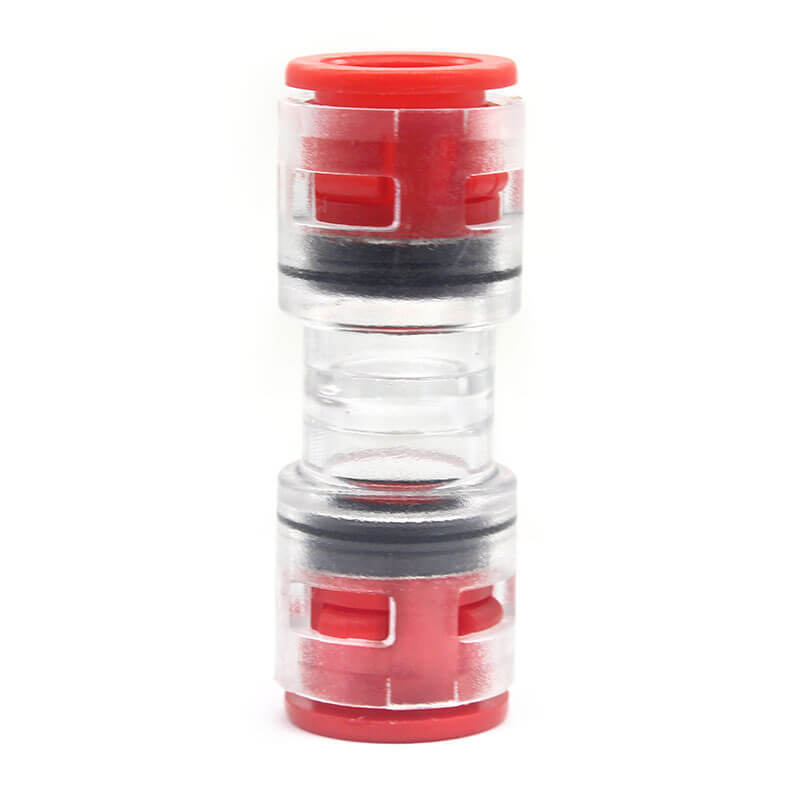

HDPE Straight Connector for Micro Duct 3/4/5/6/7/8/10/12/14/16/18/22mm

Large Image : HDPE Straight Connector for Micro Duct 3/4/5/6/7/8/10/12/14/16/18/22mm

Product Details:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW-SCMD

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Delivery Time:	7-15 Days
Supply Ability:	1000 PCS Per 7 Days

Contact Now

HDPE Straight Connector for Micro Duct 3/4/5/6/7/8/10/12/14/16/18/22mm

Description

Color:	Red Or OEM	Material:	HDPE
Working Temperature:	-20 C-+50 C	Working Pressure:	16 Bar

HDPE Straight Connector for Micro Duct 3/4/5/6/7/8/10/12/14/16/18/22mm

Specification:

Item No.	Duct OD/ID(mm)	Pressure Resistance	Connectivity
DW-SCMD3/2.1	3/2.1	25bar	50N
DW-SCMD5/3.5	5/3.5	25bar	55N
DW-SCMD7/3.5	7/3.5	25bar	75N
DW-SCMD7/4	7/4	25bar	75N
DW-SCMD8/5	8/5	25bar	85N
DW-SCMD8/6	8/6	25bar	85N
DW-SCMD10/8	10/8	25bar	125N
DW-SCMD12/8	12/8	25bar	135N
DW-SCMD12/10	12/10	25bar	135N
DW-SCMD14/10	14/10	25bar	155N
DW-SCMD14/12	14/12	25bar	155N
DW-SCMD16/12	16/12	25bar	200N
DW-SCMD18/14	18/14	25bar	220N
