Waterproof Fiber Optic Breakout Cable Multi Purpose GJFJV For Lan Network

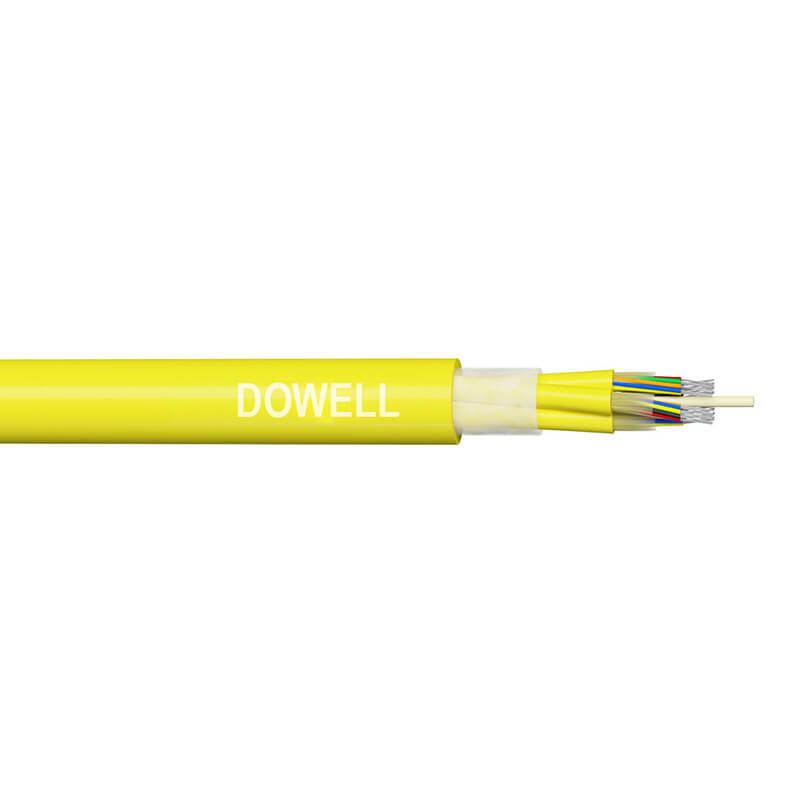

Large Image : Waterproof Fiber Optic Breakout Cable Multi Purpose GJFJV For Lan Network

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	GJPFJV

Payment & Shipping Terms:

Minimum Order Quantity:	4KM
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 Roll Per 70 Days

Contact Now

Waterproof Fiber Optic Breakout Cable Multi Purpose GJFJV For Lan Network

Description

Fiber Type:	G652D/G657A	Cable Core:	24F, 48F, 96F, 120F
Tensile Strength Long/Short Term N:	500/1300	Crush Resistance Long/Short Term N/100m:	300/1000
Transport Temperature:	－20 ℃～＋60 ℃	Storage Temperature:	－20 ℃～＋60 ℃
Highlight:	Waterproof simplex fiber optic cable , Waterproof Fiber Optic Breakout Cable , Multi Purpose Fiber Optic Breakout Cable

LSZH Waterproof Multi Purpose Optic Break-out Cable GJPFJV For Lan Nework

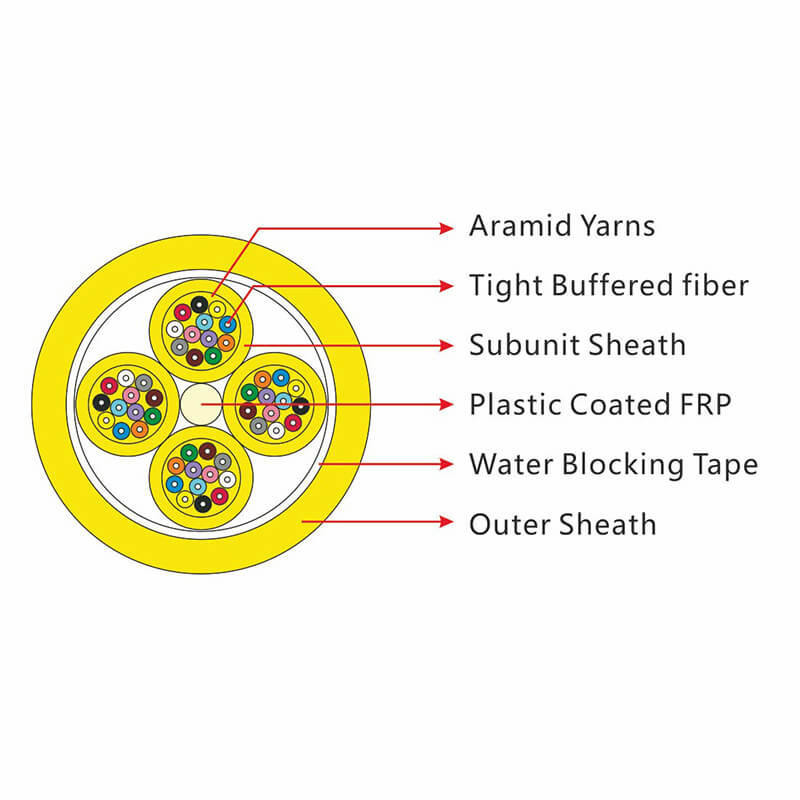

GJPFJV multi purpose distribution cable use 6-fiber sub-units(900um tight buffer, aramid yarn as strength member). A fiber reinforced plastic(ERP) locates in the center of core as a non-metalic strength member. The sub-units are stranded around the cable core. The cable is completed with a LSZH or PVC jacket.with dry-type water-blocking materials between fiber and sheath.

Optical Characteristics:

		G.652	G.657	50/125um	62.5/125um
Attenuation (+20 )	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.45 dB/km	≤0.45 dB/km
	@1550nm	≤0.30 dB/km	≤0.30 dB/km
Bandwidth	@850nm			≥500 Mhz.km	≥200 Mhz.km
Class A 850nm	@1300nm			≥1000 Mhz.km	≥600 Mhz.km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable Cutoff Wavelength		≤1260nm	≤1480nm

Technical Parameters:

Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
24	13.8±0.5	70	500/1300	300/1000	30D/15D
48	18.0±0.5	150	500/1300	300/1000	30D/15D
96	25.0±0.5	340	500/1300	300/1000	30D/15D
120	31.0±1.0	530	500/1300	300/1000	30D/15D

Standards:

1.1 GJPFJV cable complies with Standard YD/T1258.2-2009 ICEA-596 GR-409 IEC794 etc; and meets with the requirements of UL approval for OFNR and OFNP.

Application:

2.1 Indoor horizontal wiring, vertical wiring in buildings, LAN network.

2.2 Standard core can be directly apply to connectors,to use for device connecting.

2.3 Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.

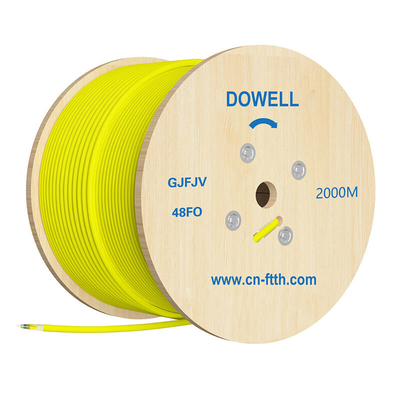

Package:

Waterproof Fiber Optic Breakout Cable Multi Purpose GJFJV For Lan Network 1

Production Flow:
