Product Description

Water-proof 8 Cores Single Mode G652D Fiber Optic Cable

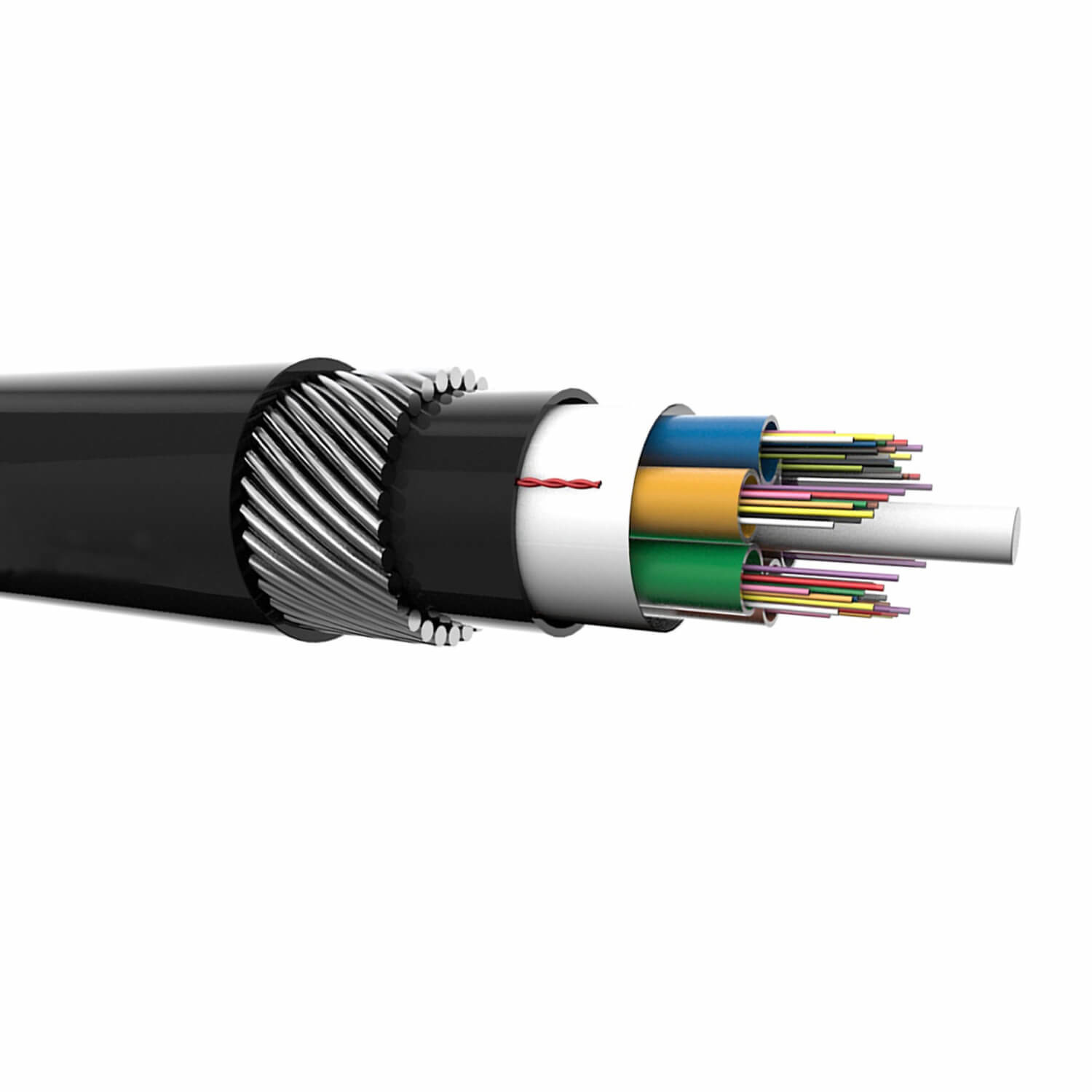

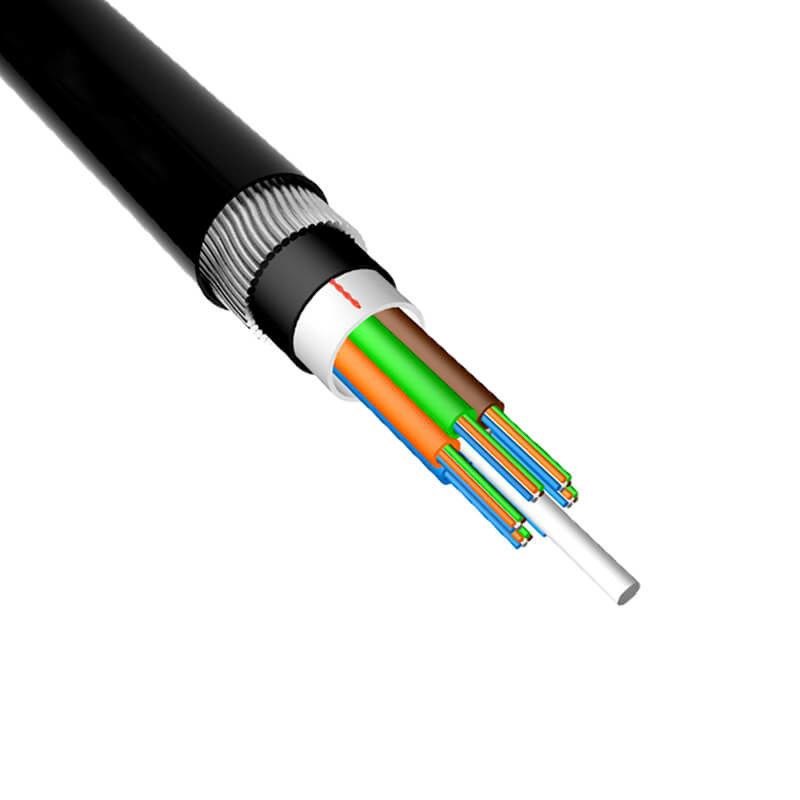

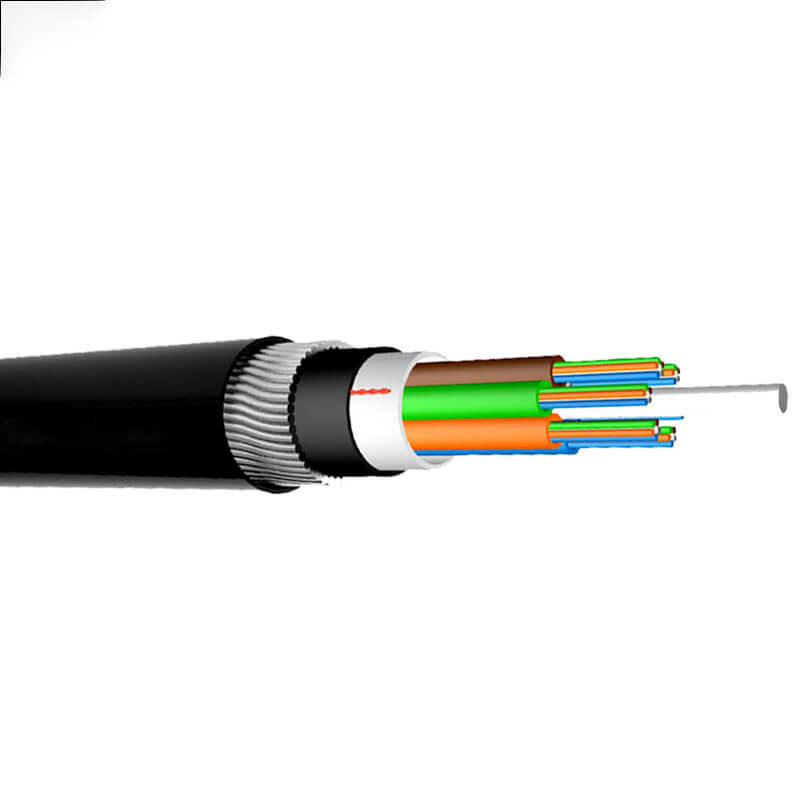

The GYFTY53 Fiber Optic Cable design in double steel armored tape which stronger Mechanical performance on pulling tension and crush resistance. Double armored double jacket design also with excellant anti rodent protection. Double water block yarn and water swealable material tape around cable core providing good performance on water proof.

Fiber parameter:

Item		Unit	Specification
Fiber Type			G.652D
Mode field diameter	1310nm	μm	9.2±0.4
Mode field diameter	1550nm	μm	10.4±0.8
Cladding diameter		μm	125.0±1
Cladding non circularity		%	≤1.0
Core/cladding concentricity error		μm	≤0.5
Coating diameter		μm	245±10
Coating non Circularity		μm	≤6.0
Coating/cladding concentricity error		μm	≤12.0
Cable cut-off wavelength		μm	≤1260
Zero Dispersion Wavelength		nm	1300 ~ 1324
Zero Dispersion Slope		ps/(nm²·km)	≤0.092
Chromatic Dispersion	1288 ~ 1339	ps/(nm. km)	≤3.5
	1550	ps/(nm. km)	≤18
	1625	ps/(nm. km)	≤22
Attenuation Coefficient	1310nm	dB/km	≤0.36
	1550nm	dB/km	≤0.22
	1383nm	dB/km	≤0.35
	1625nm	dB/km	≤0.30
Proof stress		kpsi	≥100

Cable Structural Parameters:

	Item	Parameters
Fiber Count		8
Colored coated fiber	Dimension	250µm±15µm
Colored coated fiber	Color	Blue,Orange,Green,Brown
Loose tube	Dimension	1.6mm±0.2mm
	Material	PBT
	Color	Blue,Orange
Filler	Dimension	1.8mm±0.2mm
	Material	PP
	Color	Natural
Central Strength	Dimension	1.2mm
Central Strength	Material	FRP
Inner jacket	Dimension	6.6mm±0.2mm
	Material	MDPE
	Color	Black
Galvanized steel wire	Dimension	0.8mm
	Material	Steel Wire Armour
	Color	28
Outer jacket	Dimension	11.8mm±0.3mm
	Material	PE
	Color	Black

Application:

Package:

1.Each single length of cable shall be reeled on Fumigated Wooden Drum.

2.Covered by plastic buffer sheet .

3.Sealed by strong wooden battens.

4.At least 1 m of inside end of cable will be reserved for testing.

5.Drum length: Standard drum length is 3000m±2%.

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	GYFTY33

Minimum Order Quantity:	4KM
Delivery Time:	7- 15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 Roll Per 7 Days
