Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication

Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication
Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication

Large Image :  Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GYFTY
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Delivery Time: 7- 15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication

Description
Fiber Type: G652D/G657A Fiber Count: 2-120F
Highlight:

Outdoor Duplex Fiber Cable

,

Single Mode Duplex Fiber Cable

,

Single Mode Fiber Optic Wire

Non-metallic Strength Member Non-armored Cable

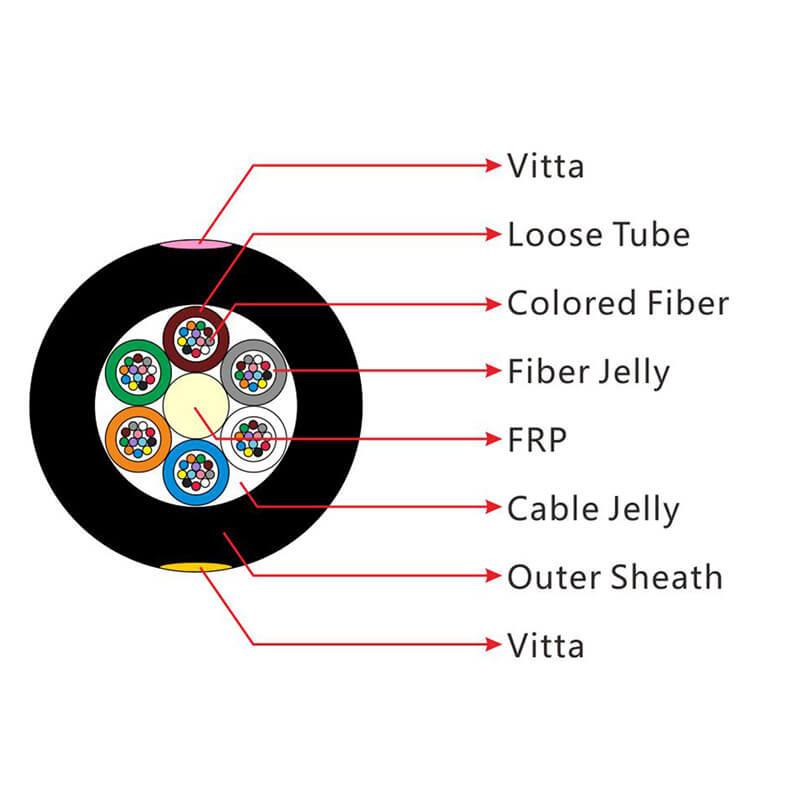

GYFTY Fiber Optic Cable FRP non-metallic Single Jacket Waterproof Dielectric Loose Tube Used in power transmission system, excessive thunder areas and high electromagnetic interface SM or MM GYFTY fiber optic cable Single Jacket Non-Metal Member Waterproof Dielectric Loose Tube Outdoor Cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. its mainly application is for aerial or duct use.
Optical Characteristics​:
    G.652 G.657 50/125um 62.5/125um
Attenuation
(+20 )		 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth @850nm     ≥500 Mhz.km ≥200 Mhz.km
Class A 850nm @1300nm     ≥1000 Mhz.km ≥500 Mhz.km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm

Technical Parameters:

Cable Type Tube Fillers Cable
Diameter
mm		 Cable
Weight
Kg/km		 Tensile
Strength
Long/Short
Term N		 Crush
Resistance
Long/Short
Term N/100m		 Bending Radius
Static/Dynamic
mm
GYFTA-2~6 1 5 10.6 88 1000/3000 300/1000 10D/20D
GYFTA-8~12 2 4 10.6 88 1000/3000 300/1000 10D/20D
GYFTA-14~18 3 3 10.6 88 1000/3000 300/1000 10D/20D
GYFTA-20~24 4 2 10.6 88 1000/3000 300/1000 10D/20D
GYFTA-26~30 5 1 10.6 88 1000/3000 300/1000 10D/20D
GYFTA-32~36 6 0 10.6 88 1000/3000 300/1000 10D/20D
GYFTA-2~12 1 6 11 97 1000/3000 300/1000 10D/20D
GYFTA-14~24 2 5 11 97 1000/3000 300/1000 10D/20D
GYFTA-26~36 3 4 11 97 1000/3000 300/1000 10D/20D
GYFTA-38~48 4 3 11 97 1000/3000 300/1000 10D/20D
GYFTA-50~60 5 2 11 97 1000/3000 300/1000 10D/20D
GYFTA-62~72 6 1 11 97 1000/3000 300/1000 10D/20D
GYFTY-38~42 7 0 12 113 1000/3000 300/1000 10D/20D
GYFTY-44~48 4 2 12 113 1000/3000 300/1000 10D/20D
GYFTY-50~60 5 1 12 113 1000/3000 300/1000 10D/20D
GYFTY-62~72 6 0 12 113 1000/3000 300/1000 10D/20D
GYFTY-2~6 1 7 12 120 1000/3000 300/1000 10D/20D
GYFTY-8~12 2 6 12 120 1000/3000 300/1000 10D/20D
GYFTY-14~18 3 5 12 120 1000/3000 300/1000 10D/20D
GYFTY-20~24 4 4 12 120 1000/3000 300/1000 10D/20D
GYFTY-26~30 5 3 12 120 1000/3000 300/1000 10D/20D
GYFTY-32~36 6 2 12 120 1000/3000 300/1000 10D/20D
GYFTY-32~36 7 1 12 120 1000/3000 300/1000 10D/20D
GYFTY-44~48 8 0 12 120 1000/3000 300/1000 10D/20D
GYFTY-50~60 5 2 13 137 1000/3000 300/1000 10D/20D
GYFTY-62~72 6 1 13 137 1000/3000 300/1000 10D/20D
GYFTA-122~132 11 1 19.2 279 1000/3000 300/1000 10D/20D
GYFTA-134~144 12 0 19.2 279 1000/3000 300/1000 10D/20D
Standards:
GYFTY cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.

Application:

Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication 0

Production Flow:

Outdoor Duplex Fiber Cable Single Mode Fiber Optic Wire Long Distance Communication 1
