Mechanical Distance Road Measuring Wheel For 99999.9 Meter

Mechanical Distance Road Measuring Wheel For 99999.9 Meter

The mechanical distance measuring wheel is an instrument applicable to long distance measuring. It’s widely used in traffic route field measurement, common construction, household and garden measurement, public road pacing, measurement of sports fields, zigzagging courses in gardens, power supply upright stanchion, and flower and tree planting, outdoor walking measurement so on and so forth. This countering-type distance measuring wheel is user-friendly, durable, and convenient, which is absolutely good value for money.

Specification:

Features:

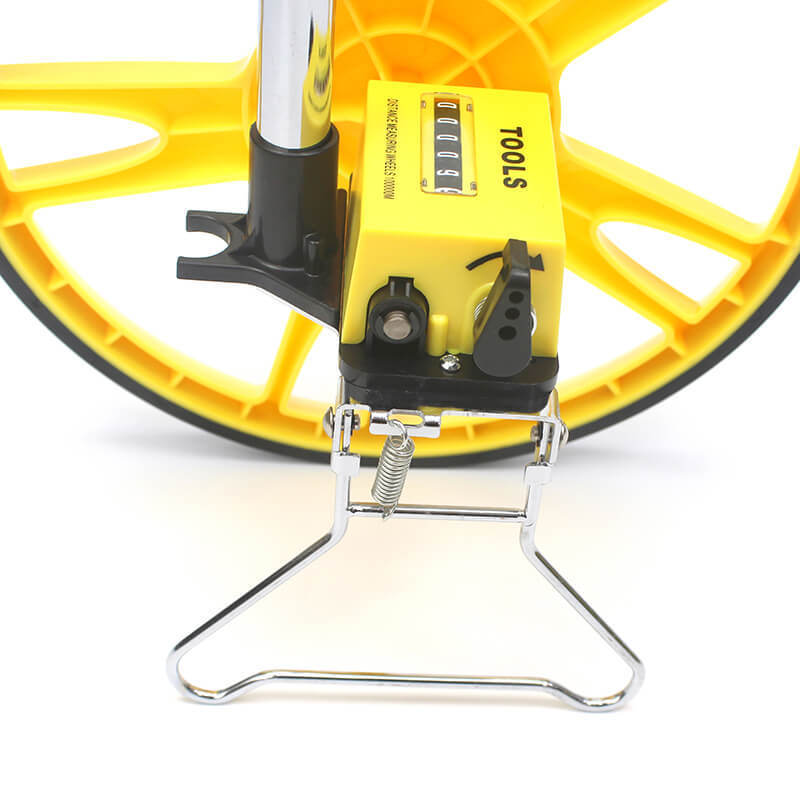

1.1 The gear driven counter is put in a firm plastic box

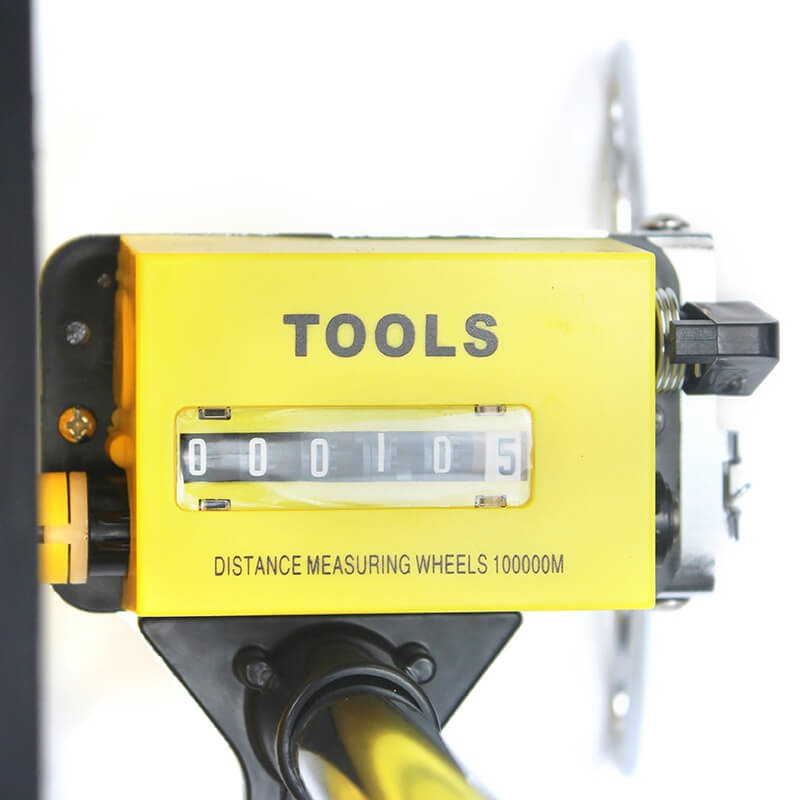

1.2 The five-digit counter has a manual reset device.

1.3 The heavy metal folding handle and bi-component rubber handle are in accordance with ergonomics.

1.4 Engineering plastic meter wheel and resilient rubber surface are used.

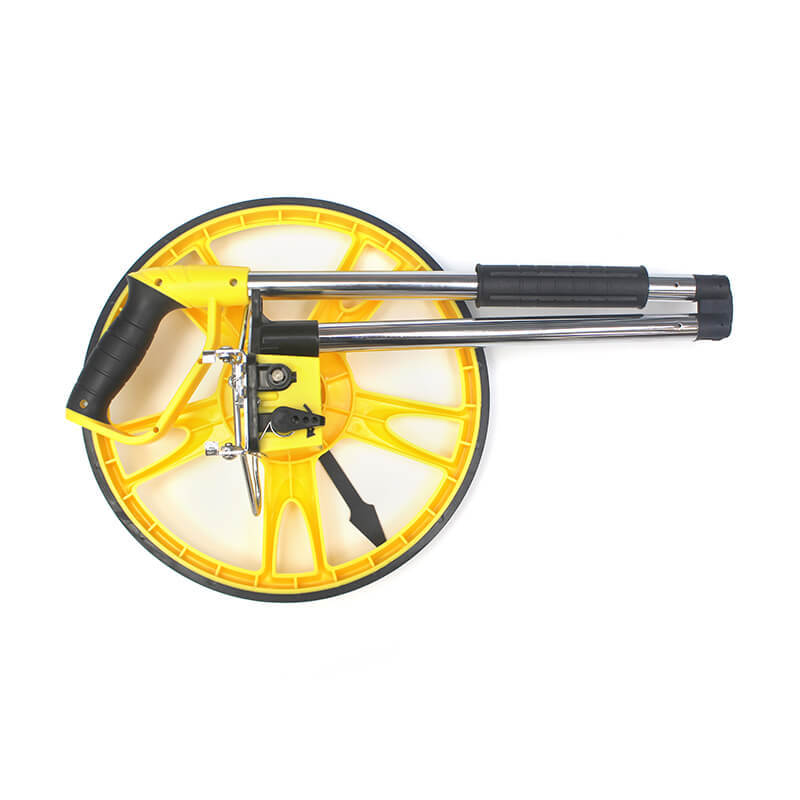

1.5 A spring folding bracket is used also.

Use method:

Stretch and straighten and grip of the range finder, and fix it with the extension sleeve. Then unfold the arm-brace and zero the counter. Put the distance measuring wheel gently at the starting point of the distance to be measured. And make sure that the arrow is aimed at the initial measuring point. Walk to the end point and read the measured value.

Note: Take the line as straightly as possible if you are measuring the straight-line distance; and walk back to the end point of the measurement if you outstep it.

Package:
