Automatic Wire Stripper for 0.03-10 mm² AWG 32-7 Cables

Basic Information

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-8090

Minimum Order Quantity:	100 pieces
Delivery Time:	7 Days
Payment Terms:	T/T
Supply Ability:	500pcs Per 7 days

Get Best Price Contact Now

Detail Information

Customized Support:	OEM, ODM	Suitable For:	Stripping Tool
Working Area Cross Section (min.):	0.03 Mm2	Working Area Cross Section (max.):	10 Mm2
Length:	195g	Weight:	136g

Product Description

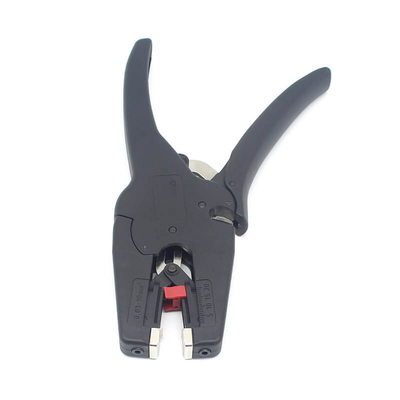

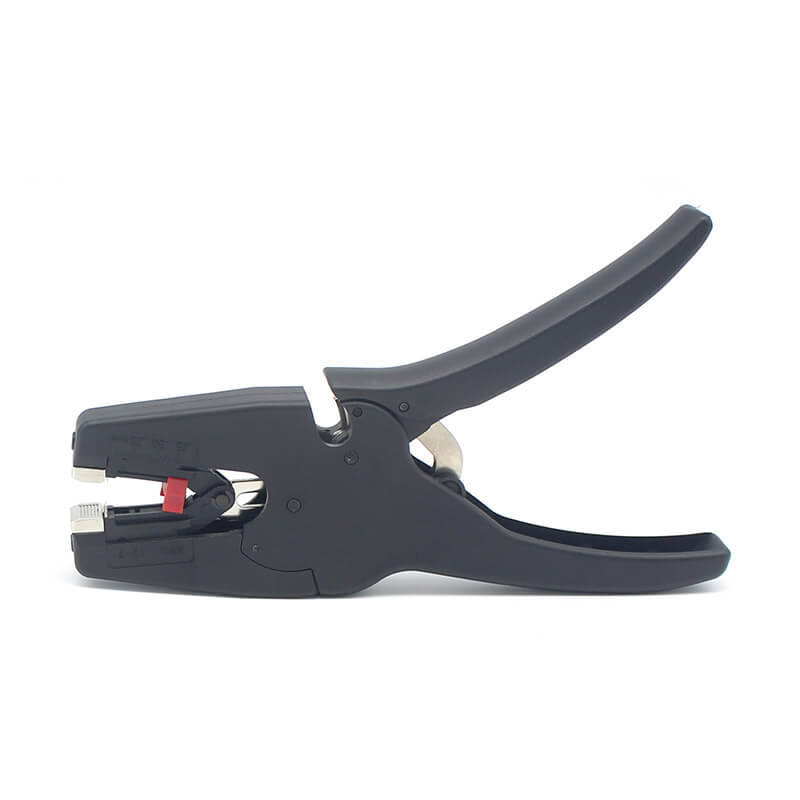

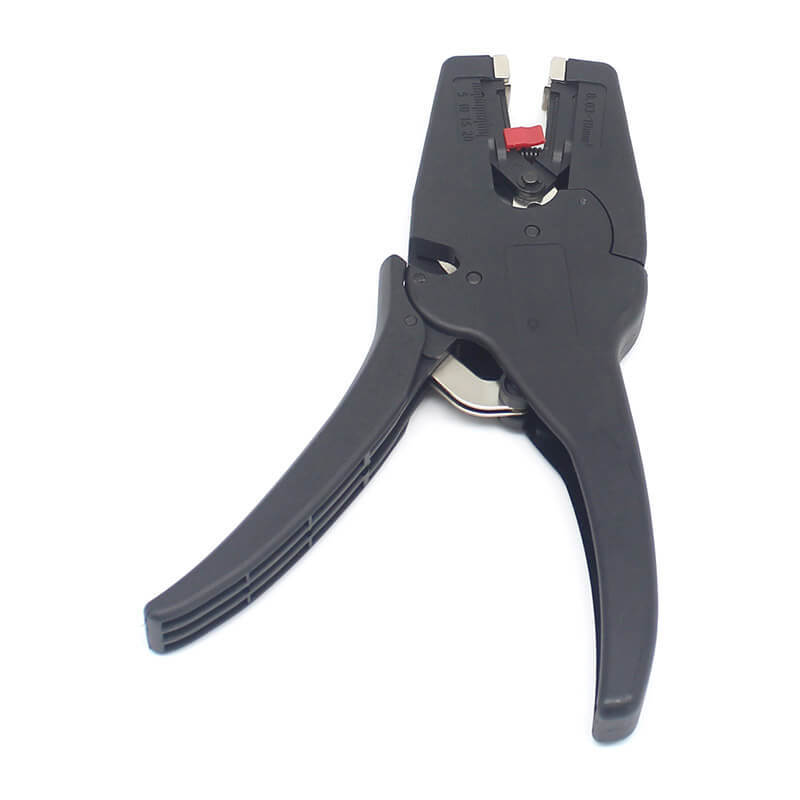

Black 0.03 to 10.0 mm² AWG 32-7 Automatic Wire Cable Stripper

Product Specifications

Customized support	OEM, ODM
Suitable for	PVC-coated cables
Working area cross section (min.)	0.03 mm²
Working area cross section (max.)	10 mm²
AWG range	32-7
Length stop (min.)	3 mm
Length stop (max.)	18 mm
Length	195 mm
Weight	136 g

Key Features

Automatic adjustment to all single, multi and fine-stranded conductors with standard insulation throughout the entire capacity range from 0.03 to 10.0 mm² (AWG 32-7)
No damage to the conductors during stripping
Steel clamping jaws prevent cable slipping without damaging remaining insulation
Recessed wire cutter for Cu and Al conductors (stranded up to 10 mm² and single wire up to 6 mm²)
Smooth-running mechanics with very low weight
Ergonomic handle with soft-plastic zone for steady grip
Durable construction: fiberglass-reinforced plastic body
High-quality blade: special tool steel, oil-hardened

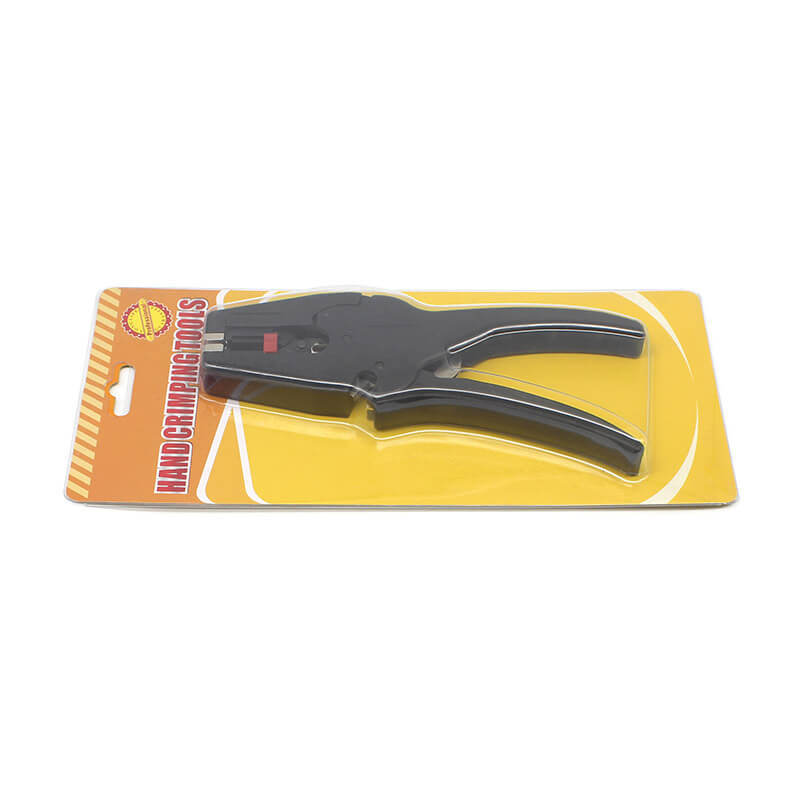

Package Contents

Application
