Convenient Adsl Vdsl Tester For Electronic Network Cable Installation And Maintenance

Large Image : Convenient Adsl Vdsl Tester For Electronic Network Cable Installation And Maintenance

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-80332B

Payment & Shipping Terms:

Price:	$290.00/pieces 1-9 pieces

Contact Now

Convenient Adsl Vdsl Tester For Electronic Network Cable Installation And Maintenance

Description

Warranty:	1 Year	Customized Support:	OEM, ODM
Power:	Electronic	Up Channel Rate:	0~1.2Mbps
Down Channel Rate:	0~24Mbps	Up/Down Attenuation:	0~63.5dB
Up/Down Noise Margin:	-50~+26 Or -70~+3	Uncertainty:	0~32dB
Output Power:	Available	Error Test:	CRC, FEC, HEC, NCD, LOS
Highlight:	Convenient adsl vdsl tester , Convenient vdsl line tester , adsl vdsl tester for Network Cable

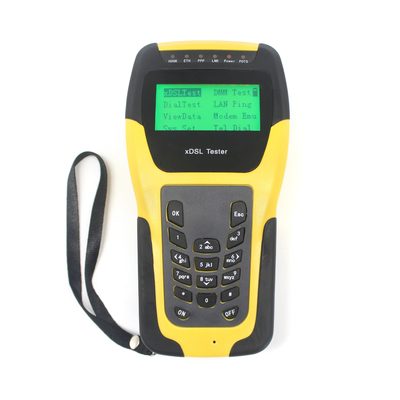

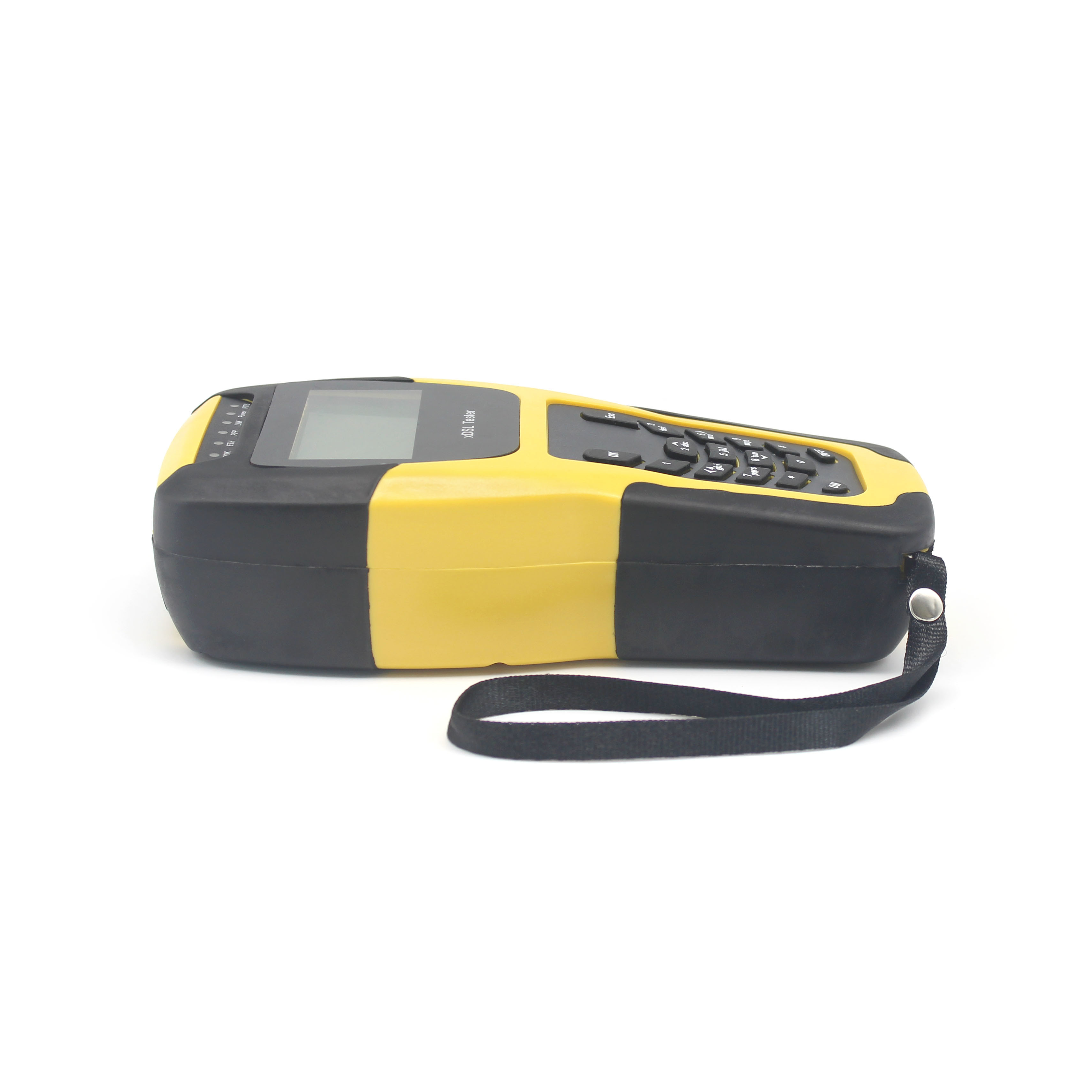

DW-80332B tester is multi-functional hand-held ADSL2+ test instrument with small size, specially designed for xDSL line test (xDSL include: ADSL, ADSL2, ADSL2+ READSL etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.
The tester adopts LCD display and menu operation which can display the test results directly and improve the xDSL broadband service greatly. It’s the best choice for the field operators of installation and maintenance.

Key Features
1.Test objects: ADSL; ADSL2; ADSL2+; READSL
2.Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance, Distance)
3.Supports Modem emulation and simulating login to Internet
4.Supports ISP login (username / password) and IP Ping test (WAN PING Test, LAN PING Test)
5.Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)

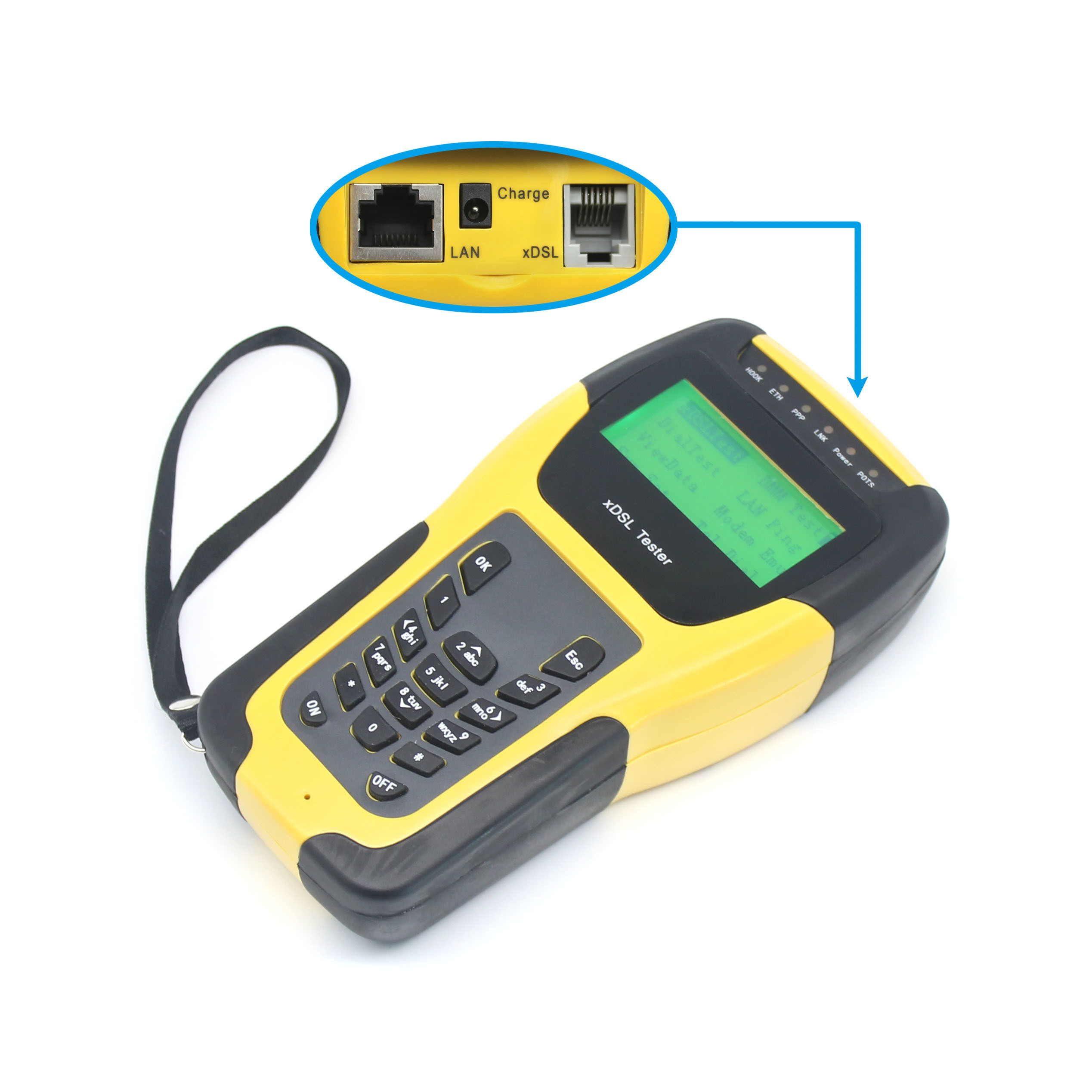

6.Connects to CO via alligator clip or RJ11
7.Rechargeable Li-ion Battery

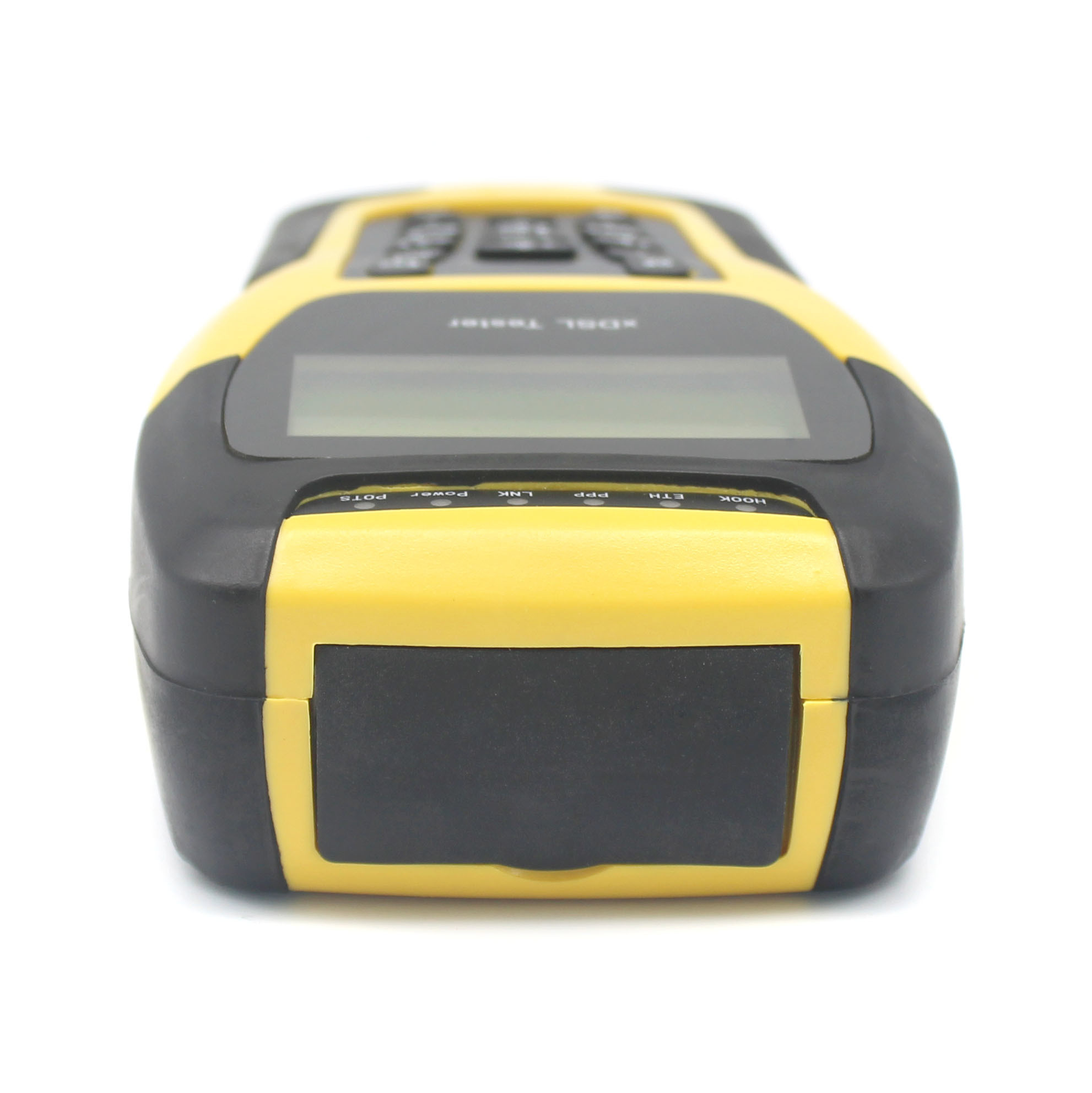

8.Beep and LEDs alarm indications (Lower Power, PPP, LAN, ADSL)
9.Data memory capacity: 50 records
10.LCD display, Menu operation
11.Auto shut off if no any operation on keyboard
12.Compliant with all known DSLAMs
13.Software management
14.Simple, portable and money-saved

Main Functions
1.DSL Physical layer test
2.Modem Emulation (Replace the user Modem completely)
3.PPPoE Dialing (RFC1683,RFC2684,RFC2516)
4.PPPoA Dialing (RFC2364)
5.IPOA Dialing
6.Telephone Function
7.DMM Test (AC Voltage: 0 to 400 V; DC Voltage: 0 to 290 V; Capacitance:0 to 1000nF, Loop Resistance: 0 to 20KΩ;Insulation
Resistance: 0 to 50MΩ;Distance Test)
8.Ping Function (WAN & LAN)
9.Data upload to computer by RS232 core and software management
10.Setup system parameter: backlight time, shut off automatically time without operation, press tone,
revise PPPoE/PPPoA dial attribute, user name and password, restore factory value and so on.
11.Check dangerous voltage
12.Four grades service judge(Excellent, Good ,Ok,Poor)

Specifications

ADSL2+
Standards	ITU G.992.1(G.), ITU G.992.2(G.lite), ITU G.994.1(G.hs), ANSI T1.413 issue #2, ITU G.992.5(ADSL2+)Annex L
Up channel rate	0~1.2Mbps
Down channel rate	0~24Mbps
Up/Down attenuation	0~63.5dB
Up/Down noise margin	0~32dB
Output power	Available
Error test	CRC, FEC, HEC, NCD, LOS
Display DSL connect mode	Available
Display channel bit map	Available
ADSL
Standards	ITU G.992.1 (G.) ITU G.992.2(G.lite) ITU G.994.1(G.hs) ANSI T1.413 Issue # 2
Up channel rate	0~1Mbps
Down channel rate	0~8Mbps
Up/Down attenuation	0~63.5dB
Up/Down noise margin	0~32dB
Output power	Available
Error test	CRC, FEC, HEC, NCD, LOS
Display DSL connect mode	Available
Display channel bit map	Available
General Specification
Power supply	Internal Rechargeable 2800mAH Li-ion battery
Battery Duration	4 to 5 hours
Working temperature	10-50 oC
Working moisture	5%-90%
Dimensions	180mm×93mm×48mm
Weight:	<0.5kg

FTTx, Data Room Transformation

1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD,100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
