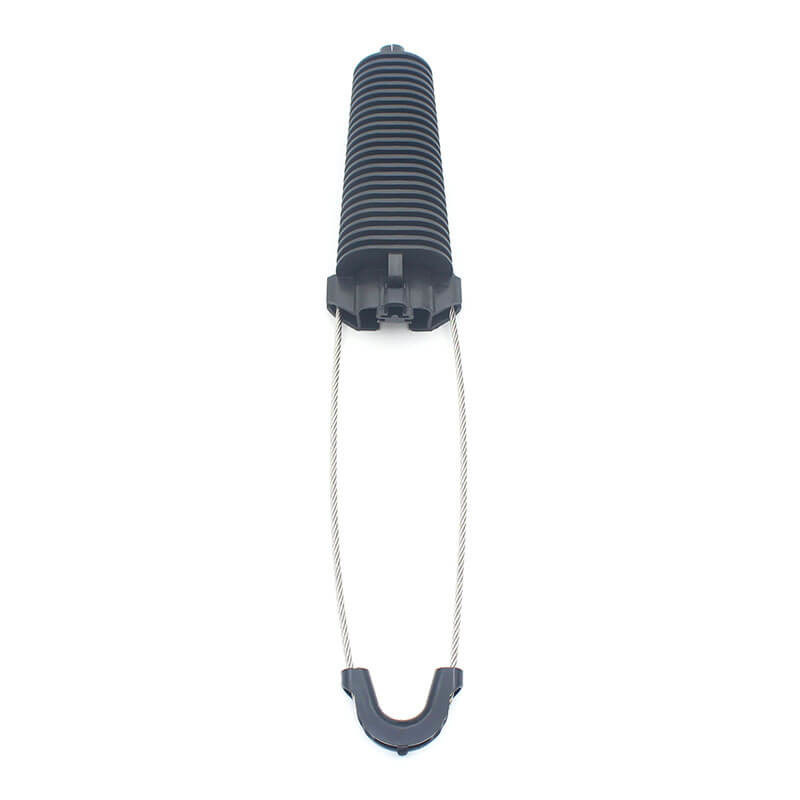

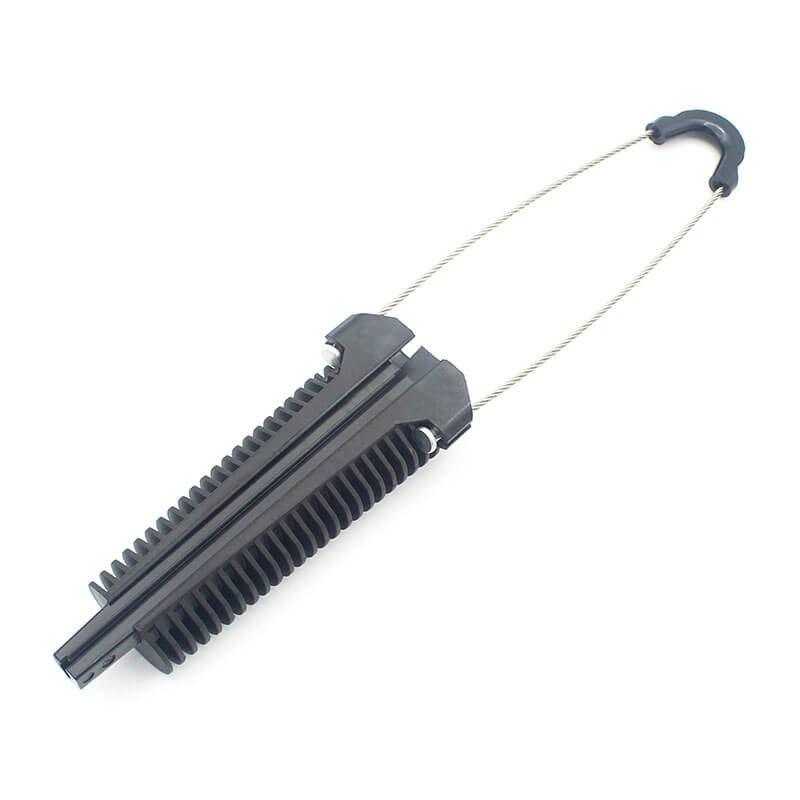

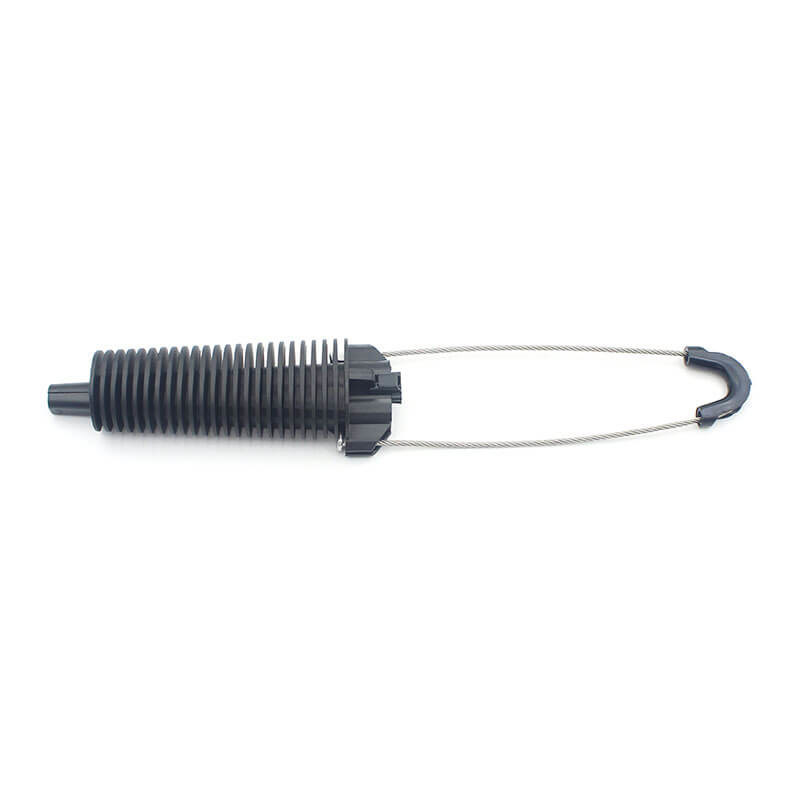

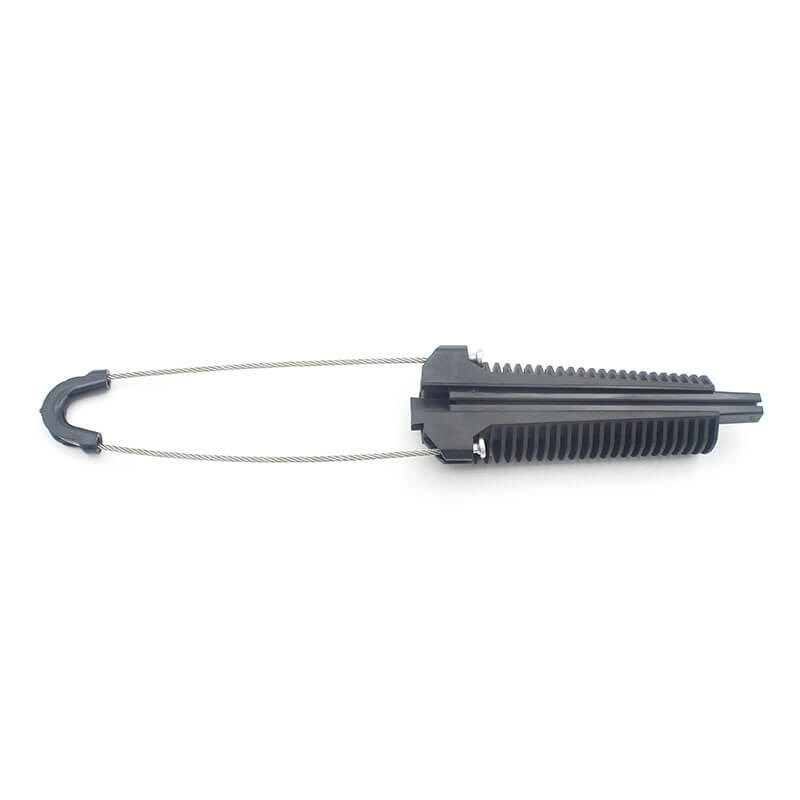

Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm

Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm
Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm
Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm

Large Image :  Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm

Product Details:
Place of Origin: China,Zhejiang
Brand Name: DOWELL
Model Number: PA-01-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm

Description
Material: UV Protected Thermo Plastic Cable Diameter: 4-8 Mm
Mini. Breaking Load: 3 KN Color: Black
Highlight:

uv adss anchor clamp

,

uv adss suspension clamp

UV Protected Thermo Plastic ADSS Cable Anchor Dead-end Clamp For 4-8 mm

Anchoring clamps(Anchor dead-end clamp) for ADSS cables ACADSS round fibre optic cables installed on short spans (100 m max) are made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail, fire-resistant plastic and fire-resistant spray coating used to support and secure thinner liners. The ACADSS series is composed of different models of clamps offering a wide range of gripping capacities and mechanical resistance. This flexibility enables us to propose optimized and tailor made clamp designs depending on the ADSS cable constructions.
Specification:
Body/Wedge Material UV protected thermoplastic
Cable Diameter 4-8 mm
Mini. Breaking Load 3 KN

Feature:

High wire clip strength, reliable grip strength.
The wire clip distributes the stress evenly on the strand without damaging the strand
Simple installation and convenient construction.
Good corrosion resistance and high quality materials
Anti-theft ring is optional to effectively solve the problem of anti-theft.
Body: Made of UV resistant glass fiber reinforced synthetic material
Thermoplastic Body: High mechanical and climatic resistance
Reduced dimensions: For easier hanging
High strength: Grip not below 95% CUTS
Service life: Does not damage the strand wire, could improves the vibration resistance
Simple install: Fast installation requiring no tools

Application:

1. For ADSS cables ACADSS round fibre optic cables installed on short spans (100 m max).
Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm 0
Our Package:
Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm 1
Production Flow:
Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm 2
More Related Products:
 Thermo Plastic ADSS Cable Anchor Dead-end Clamp UV Protected For 4-8 mm 3
