Blue Mini PICABOND Connector

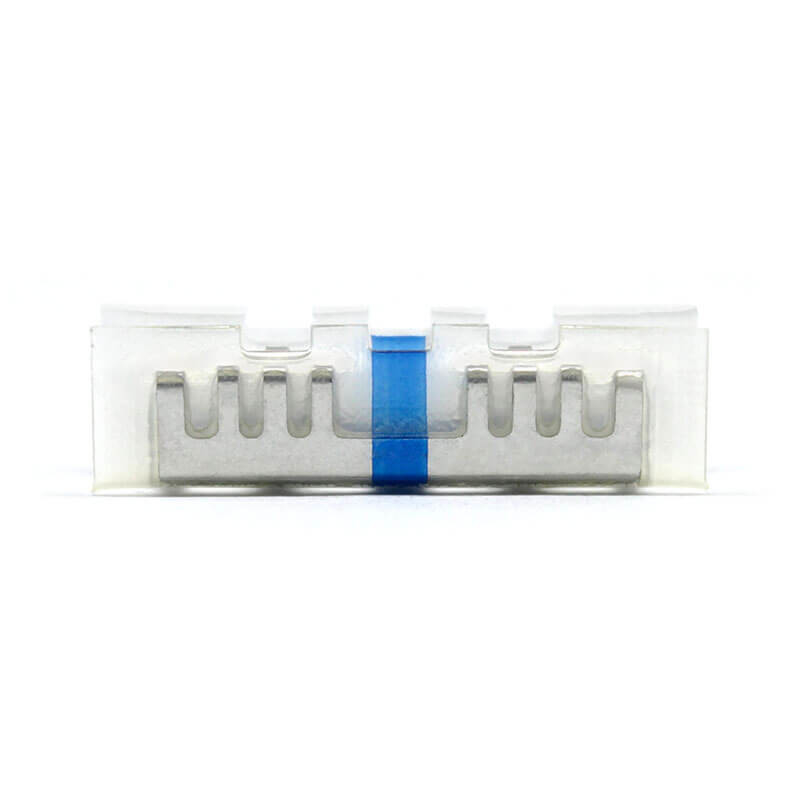

Large Image : Blue Mini PICABOND Connector

Product Details:

Place of Origin:	China,zhejiang
Brand Name:	DOWELL
Model Number:	DW-552041-4

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100000 PCS Per 7 Days

Contact Now

Blue Mini PICABOND Connector

Description

Cable Size:

26AWG – 22AWG

Base:

Tin-plated Brass / Bronze

Mini Type:

PET Insulation With Blue Coating (UL 94v-0)

Green Type:

PET Insulation With Green Coating (UL 94v-0)

Highlight:

22awg wire butt splice

26awg wire butt splice

22awg scotchlok butt connector

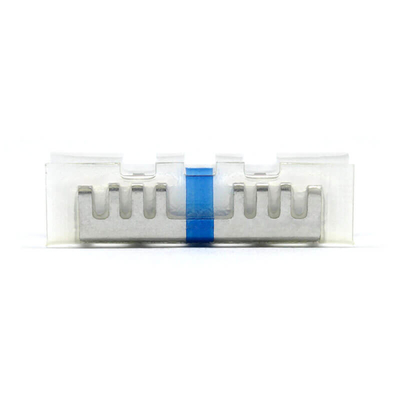

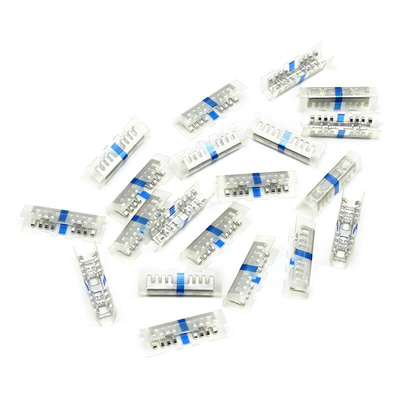

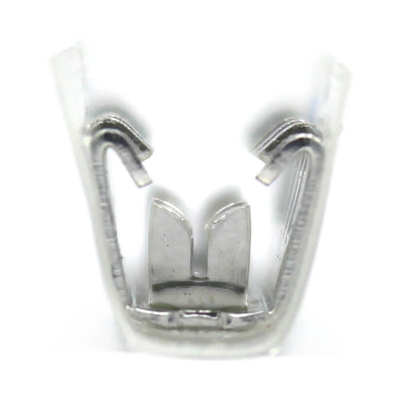

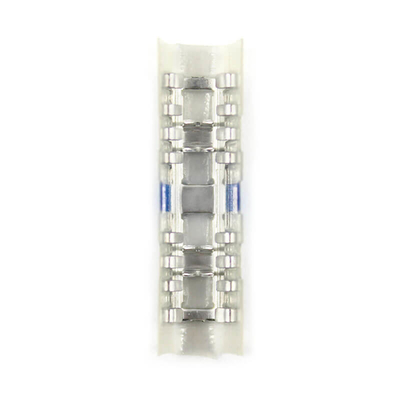

Blue Mini PICABOND Connector

PICABOND connectors provide an economical and reliable means of splicing multiconductor telephone cable.

1. Lightweight and compact, PICABOND splices reduce the space 33% than other.

2. Suitable for the cable size: 26AWG – 22AWG

3. Save time – no prestripping or cutting required, can tap without service interruptions

4. Economical – Lower applied cost, minimum training required, higher application rates

5. Convenient – Use the small hand tool, easy to operation

Specification:

Plastic Cover (Mini Type)	PET Insulation with blue coating (UL 94v-0)
Plastic Cover(Green Type)	PET Insulation with green coating (UL 94v-0)
Base	Tin-plated brass / bronze
Wire Insertion Force	45N typical
Wire Pull Out Force	40N typical
Cable Size	Φ0.4-0.6mm
