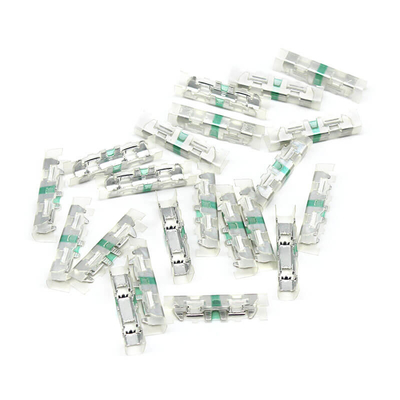

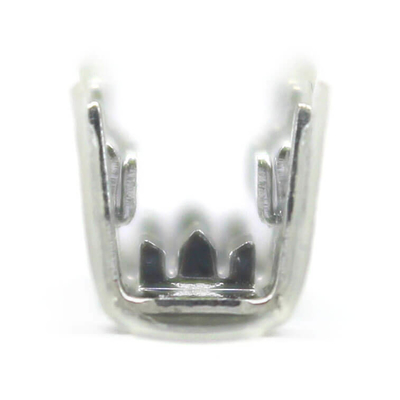

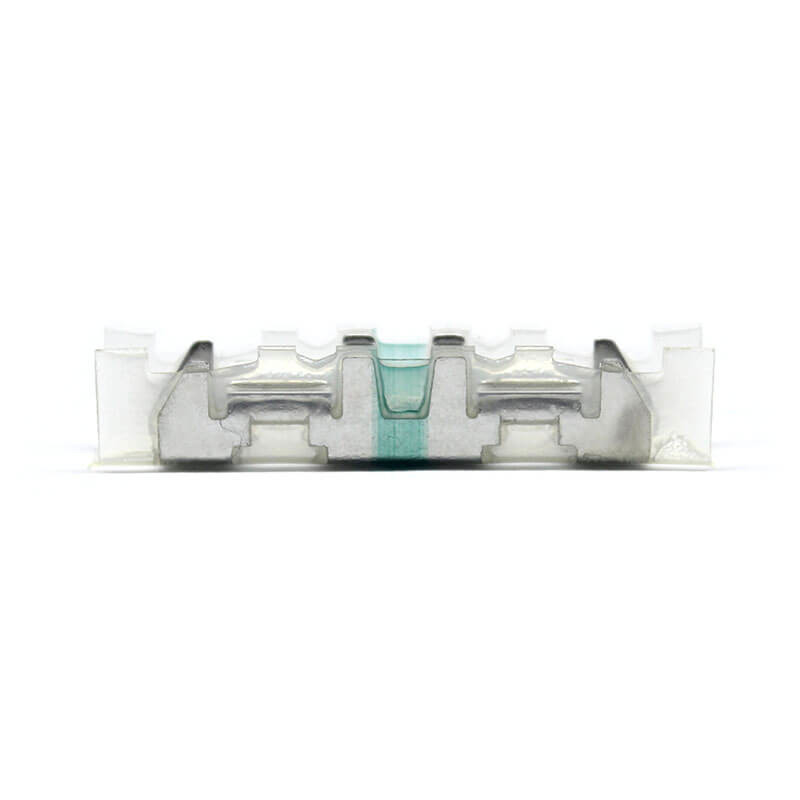

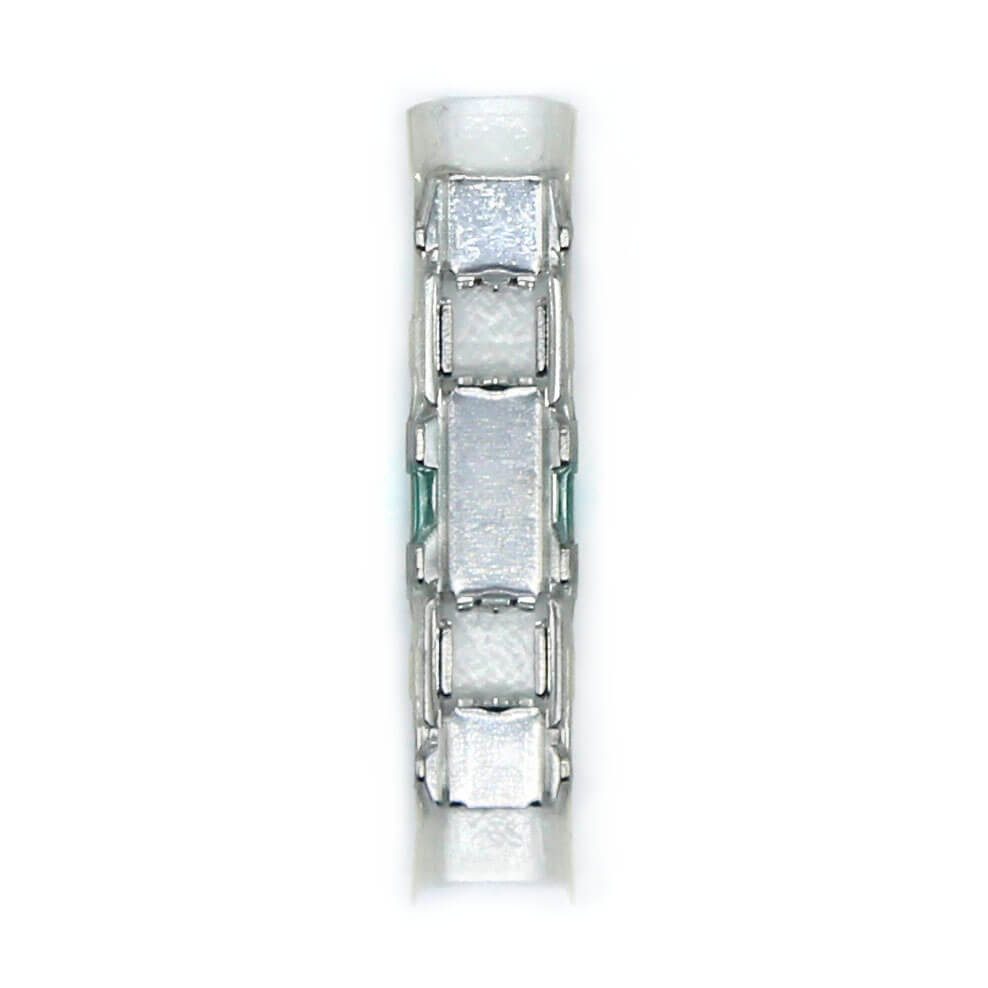

Green PICABOND Connectors

Large Image : Green PICABOND Connectors

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-60945-4

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100000 PCS Per 7 Days

Contact Now

Green PICABOND Connectors

Description

Color:

Blue

Cable Size:

26AWG – 22AWG

Mini Type:

PET Insulation With Blue Coating (UL 94v-0)

Green Type:

PET Insulation With Green Coating (UL 94v-0)

Highlight:

green wire butt splice

green scotchlok butt connector

22awg wire butt splice

Green PICABOND Connectors

PICABOND connectors provide an economical and reliable means of splicing multiconductor telephone cable.

1. Lightweight and compact, PICABOND splices reduce the space 33% than other.

2. Suitable for the cable size: 26AWG – 22AWG

3. Save time – no prestripping or cutting required, can tap without service interruptions

4. Economical – Lower applied cost, minimum training required, higher application rates

5. Convenient – Use the small hand tool, easy to operation

Specification:

Plastic Cover (Mini Type)	PET Insulation with blue coating (UL 94v-0)
Plastic Cover(Green Type)	PET Insulation with green coating (UL 94v-0)
Base	Tin-plated brass / bronze
Wire Insertion Force	45N typical
Wire Pull Out Force	40N typical
Cable Size	Φ0.4-0.6mm

Application:

1. Splicing
2. Central Office
3. Manhole
4. Aerial Pole
5. CEV
6. Pedestal
7. Demarcation Points

Green PICABOND Connectors 0

Package:

1. Pack in roll

Green PICABOND Connectors 1

2. Pack in bulk

Green PICABOND Connectors 2
