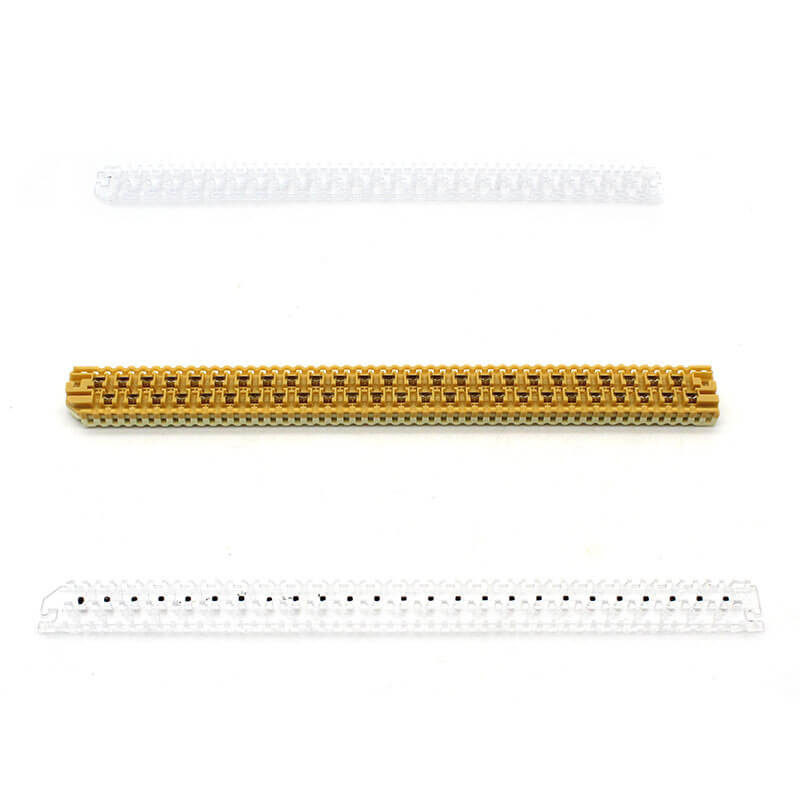

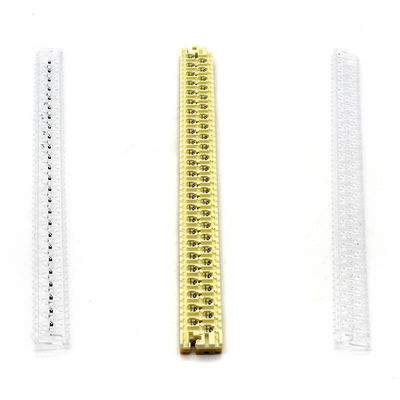

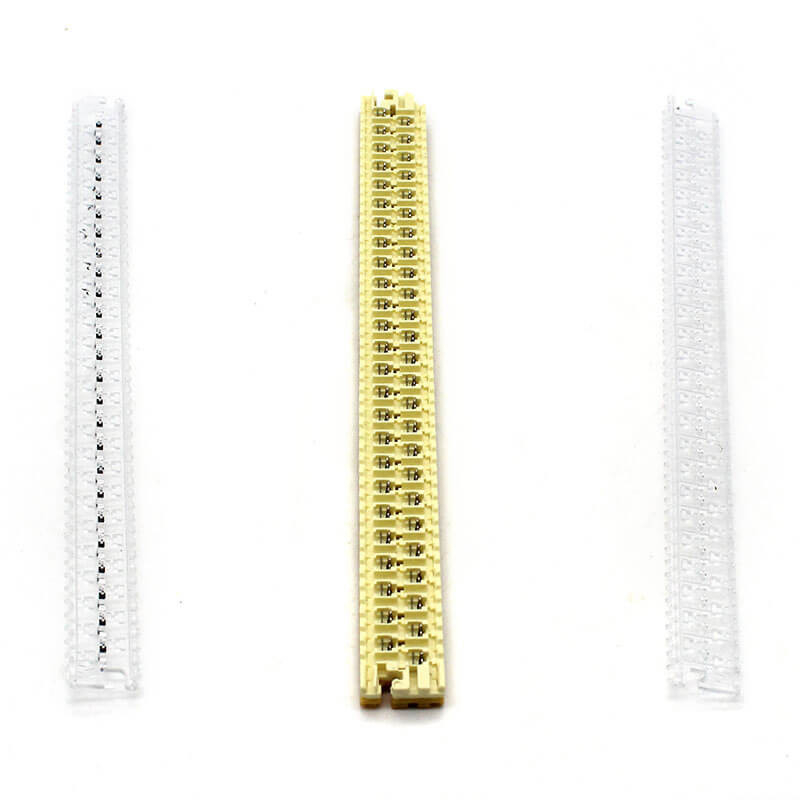

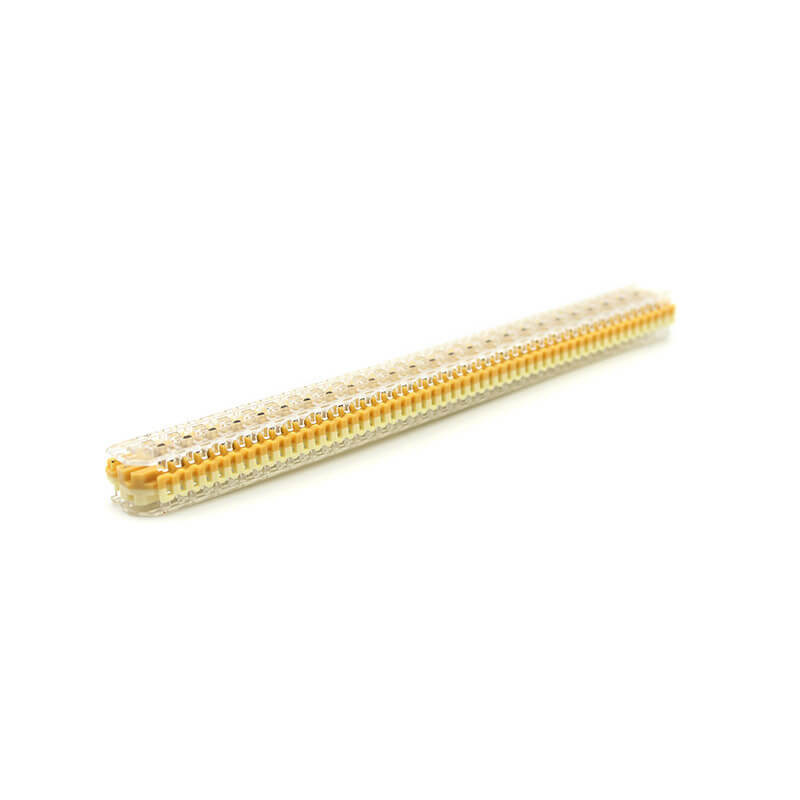

25-Pair Super-Mini Splicing Module without Gel

Large Image : 25-Pair Super-Mini Splicing Module without Gel

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-4000D

Payment & Shipping Terms:

Minimum Order Quantity:	2000 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	5000 PCS Per 7 Days

Contact Now

25-Pair Super-Mini Splicing Module without Gel

Description

Housing Material:	PC (UL 94v-0) Without Gel	Contacts Material:	Tinned Phosphor Bronze
Wire Insertion Force:	45N Typical	Wire Pull-Out Force:	40N Typical

25-Pair Splicing Module without Gel

25-Pair Splicing Module without Gel is used to connect all plastic communication cables (diameter 0.32 - 0.65mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuit. The contact is designed into tuning fork type and sheet joint so that connection will not be hampered. With clear cover module, for easy pairs identification and troubleshooting.

Specification:

Housing Material	PC (UL 94v-0) without gel	Contacts Material	Tinned Phosphor Bronze
Wire Insertion Force	45N Typical	Wire Pull-Out Force	40N Typical
Max Insulation Diameter	1.65 mm	Cable Style and Wire Diameter	0.32-0.65 mm(28-22 AWG)

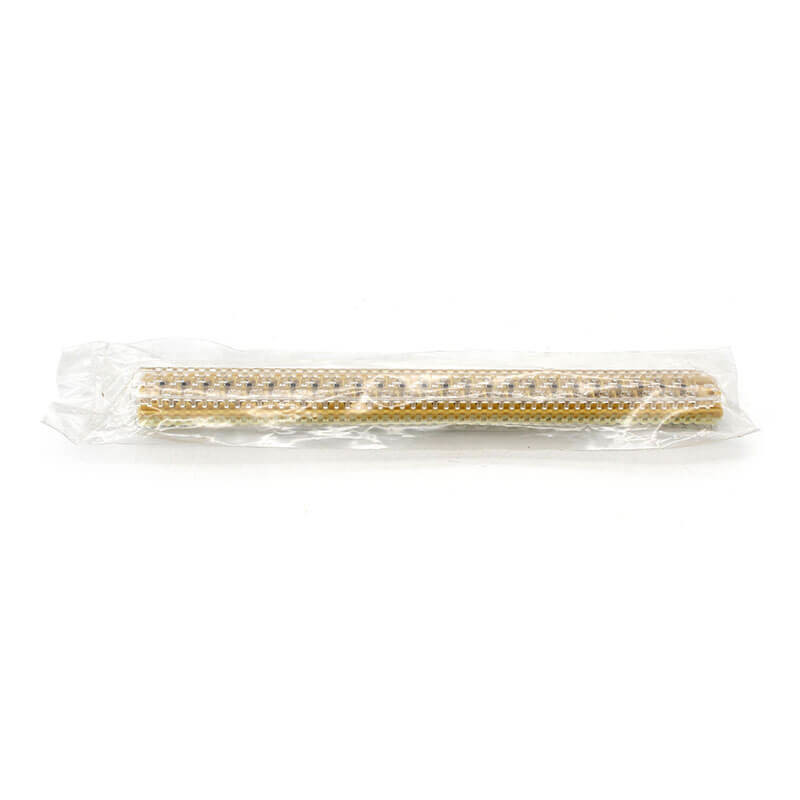

Package:

Packing: 1pcs/bag, 40pcs/box, 400pcs/cs.

Size: 45*28.5*22cm

G.W.: 9.6kg(21.2 lbs.)/cs.
