Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um

Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um
Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um
Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um

Large Image :  Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GYFTY53
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Delivery Time: 7- 15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um

Description
Fiber Count: 2-144F Fiber Type: G652D/G657A
Application: FTTH Length: 2km Or As Your Required
Highlight:

Double Jacket Fiber Optic Cable

,

Double Jacket aerial fiber optic cable

,

Durable Fiber Optic Cable

GYFTY53 Armor Double Jacket Fiber Optic Cable

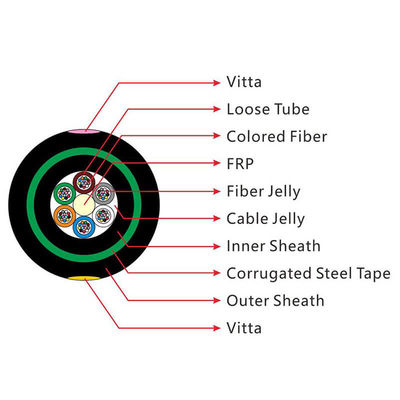

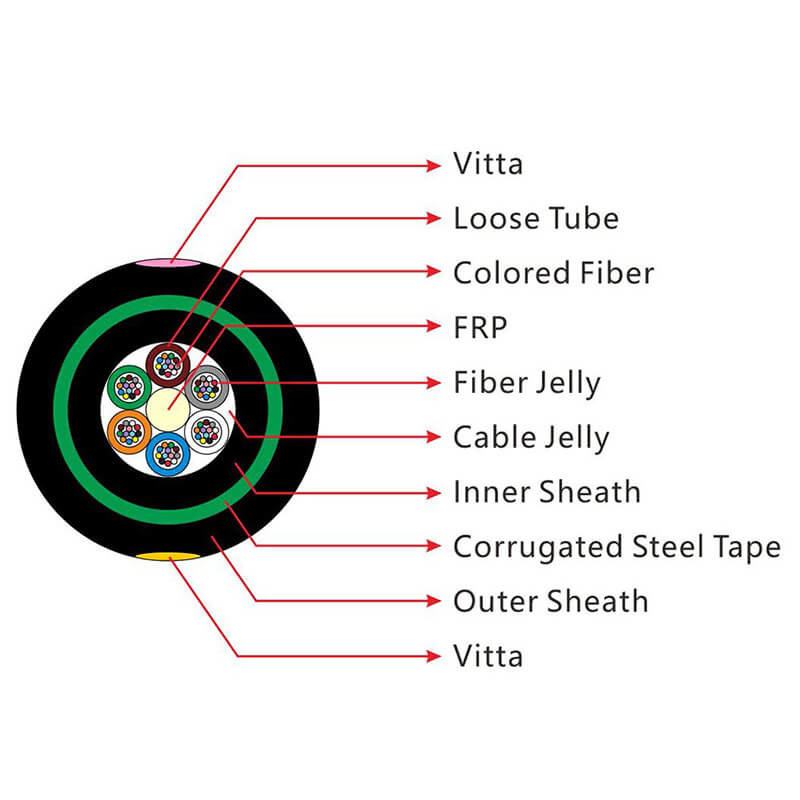

GYFTY53 Armor double jacket fiber optic cable is an outdoor fiber optic cable designed for direct burial applications. it features a single armor laver and double jacket construction, providing mechanical protection and durability for underground installations.The tubes are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel tape armor is applied. cable is completed with a PE outer sheath.
Optical Characteristics:
    G.652 G.657 50/125um 62.5/125um
Attenuation
(+20 )		 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth @850nm     ≥500 Mhz.km ≥200 Mhz.km
Class A 850nm @1300nm     ≥1000 Mhz.km ≥500 Mhz.km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm
Technical Parameters:
Cable Type Fiber Count Tube Fillers Cable
Diameter
mm		 Cable
Weight
Kg/km		 Tensile
Strength
Long/Short
Term N		 Crush
Resistance
Long/Short
Term N/100m		 Bending Radius
Static/Dynamic
mm
GYFTY53-2~6 2-6 1 7 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-8~12 8-12 2 6 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-14~18 14-18 3 5 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-20~24 20-24 4 4 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-20~24 26-30 5 3 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-26~36 32-36 6 2 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-38~42 38-42 7 1 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-44~48 44-48 8 0 15.8 230 1000/3000 1000/3000 10D/20D
GYFTY53-50~60 50-60 5 3 16.8 255 1000/3000 1000/3000 10D/20D
GYFTY53-62~72 62-72 6 2 16.8 255 1000/3000 1000/3000 10D/20D
GYFTY53-74~84 74-84 7 1 16.8 255 1000/3000 1000/3000 10D/20D
GYFTY53-86~96 86-96 8 0 16.8 320 1000/3000 1000/3000 10D/20D
GYFTY53-110~120 110-120 10 0 19.2 320 1000/3000 1000/3000 10D/20D
GYFTY53-122~132 122-132 11 1 21.2 380 1000/3000 1000/3000 10D/20D
GYFTY53-134~144 134-144 12 0 21.2 380 1000/3000 1000/3000 10D/20D
Standards:
GYFTA53 cable complies with Standard YD/T 901-2009 as well as IEC 60794-1.

Application:

Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um 0

Package:

Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um 1

Production Flow:

Armor Double Jacket Fiber Optic Cable Durable FTTH GYFTY53 50/125um 62.5/125um 2
