Product Description

FTTH Outdoor GYTS Fiber Cable GYTS Single-mode MultimodeStranded Loose Tube

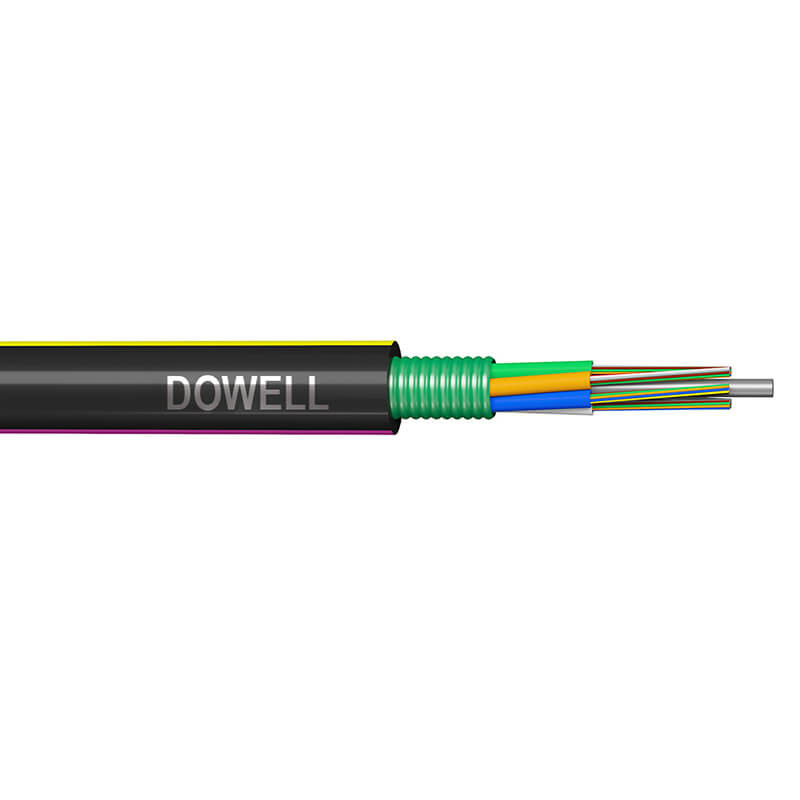

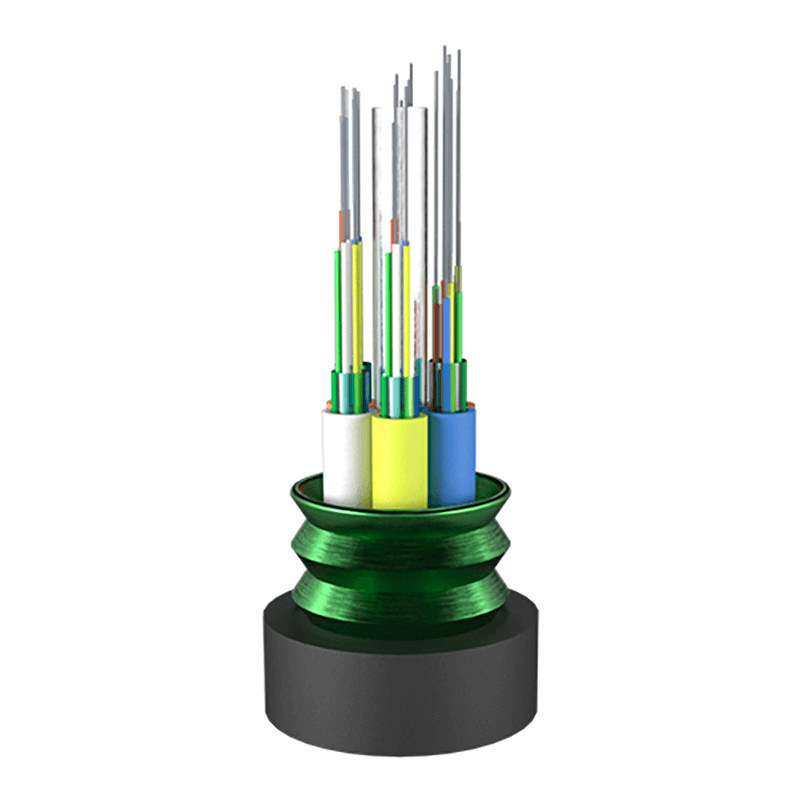

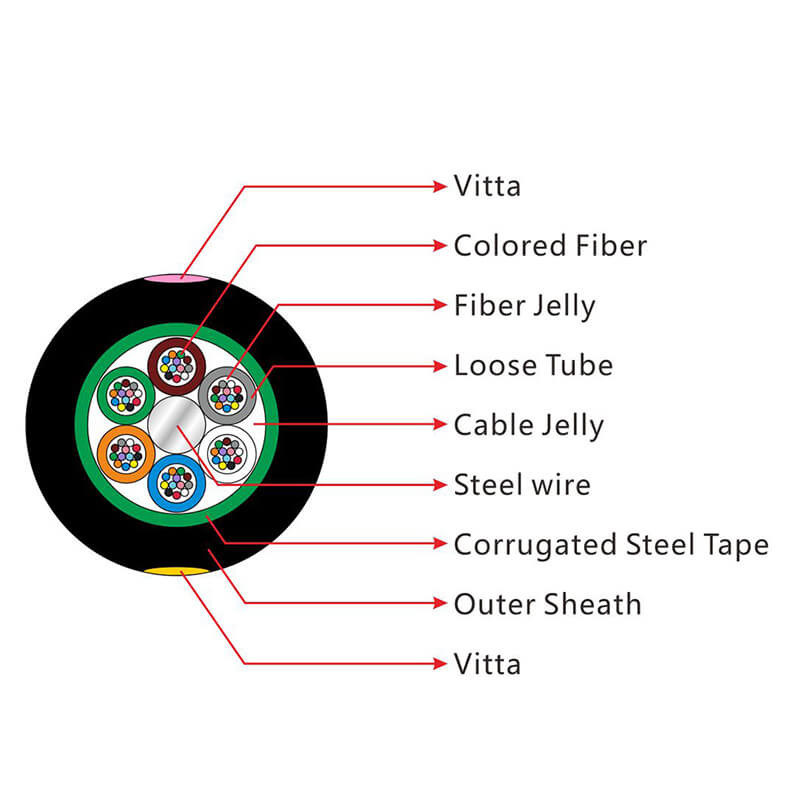

GYTS Stranded Loose Tube Cable with Steel Tape In the GYTS cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filing compound. Tubes and fillers are stranded around the strength member into a circular cable core. PSP is applied around the core. Which is filled with the filing compound to protect it. Then the cable is completed with a PE sheath.

Optical Characteristics:

		^G.652	^G.657	^50/125um	^62.5/125um
^{Attenuation (+20 )}	^@850nm			^{≤3.0 dB/km}	^{≤3.0 dB/km}
	^@1300nm			^{≤1.0 dB/km}	^{≤1.0 dB/km}
	^@1310nm	^{≤0.36 dB/km}	^{≤0.36 dB/km}
	^@1550nm	^{≤0.22 dB/km}	^{≤0.23 dB/km}
^Bandwidth	^@850nm			^{≥500 Mhz.km}	^{≥200 Mhz.km}
^{Class A 850nm}	^@1300nm			^{≥1000 Mhz.km}	^{≥600 Mhz.km}
^{Numerical aperture}				^{0.200±0.015NA}	^{0.275±0.015NA}
^{Cable Cutoff Wavelength}		^≤1260nm	^≤1480nm

Technical Parameters:

Cable Type	Fiber Count	Tube	Fillers	Cable Diameter mm	Cable Diameter mm	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm



GYTS-2-6	2-6	1	4	11.4	116	600/1500	300/1000	10D/20D
GYTS-8-12	8-12	2	3	11.4	116	600/1500	300/1000	10D/20D
GYTS-14-18	14-18	3	2	11.4	116	600/1500	300/1000	10D/20D
GYTS-20-24	20-24	4	1	11.4	116	600/1500	300/1000	10D/20D
GYTS-26-30	26-30	5	0	11.4	116	600/1500	300/1000	10D/20D
GYTS-32-36	32-36	6	0	10.6	129	1000/3000	300/1000	10D/20D
GYTS-38-48	38-48	4	1	11.2	141	1000/3000	300/1000	10D/20D
GYTS-50-60	50-60	5	0	11.2	141	1000/3000	300/1000	10D/20D
GYTS-62-72	62-72	6	0	12	159	1000/3000	300/1000	10D/20D
GYFTA-50~60	50-60	5	0	13.6	209	1000/3000	300/1000	10D/20D
GYFTA-62~72	62-72	6	0	13.6	209	1000/3000	300/1000	10D/20D
GYTS-74-84	74-84	7	1	15.4	232	1000/3000	300/1000	10D/20D
GYTS-86-96	86-96	8	0	15.4	232	1000/3000	300/1000	10D/20D
GYTS-98-108	98-108	9	5	17.2	280	1000/3000	300/1000	10D/20D
GYTS-110-120	110-120	4	4	17.2	280	1000/3000	300/1000	10D/20D

Application:

FTTH Outdoor Fiber Optic Cable Single Mode Multimode Stranded Loose Tube 0

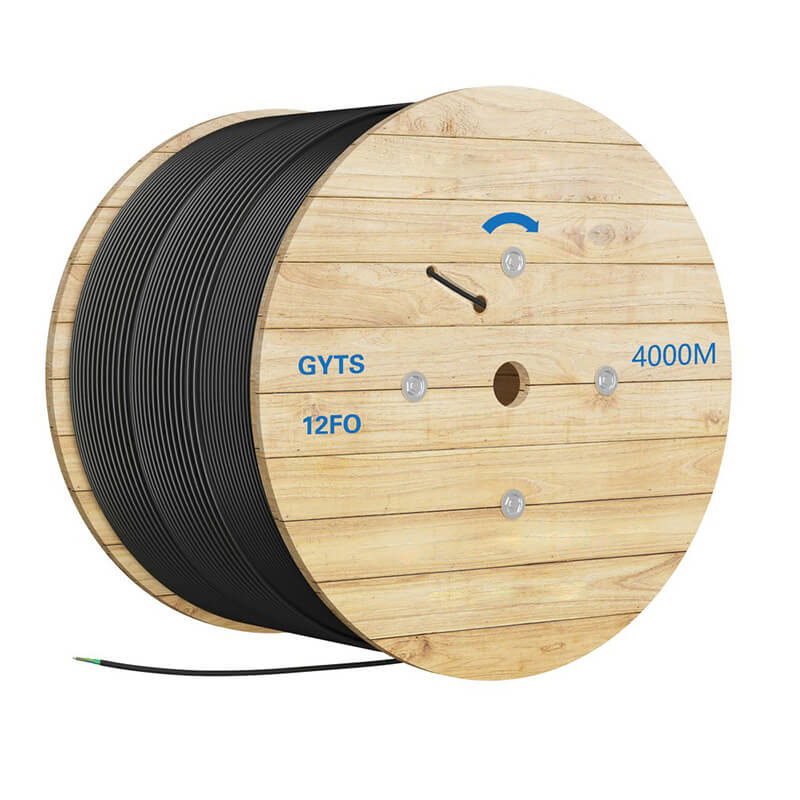

Package:

Production Flow:

Tag:

Place of Origin:	Zhejiang, China
Brand Name:	DOWELL
Model Number:	DW-GYTS

Minimum Order Quantity:	4KM
Delivery Time:	7- 15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100 Roll Per 7 Days
