Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode

Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode
Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode
Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode

Large Image :  Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GYXTW
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Delivery Time: 7- 15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode

Description
Fiber Type: G652D/G657A Fiber Count: 2-48F
Application: FTTH Length: 2km Or As Your Required
Highlight:

Polyethylene Fiber Optic Cable

,

Polyethylene 8 core fiber optic cable

,

PE Fiber Optic Cable

Polyethylene PE Light-armored 48 Core Fiber Cable GYXTW Singlemode and Multimode

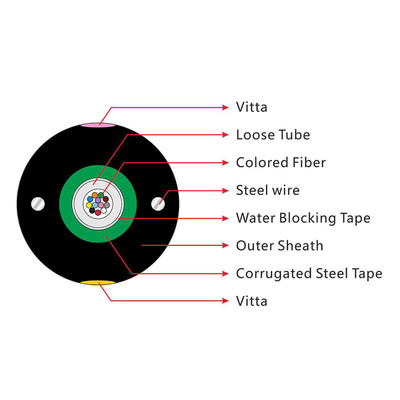

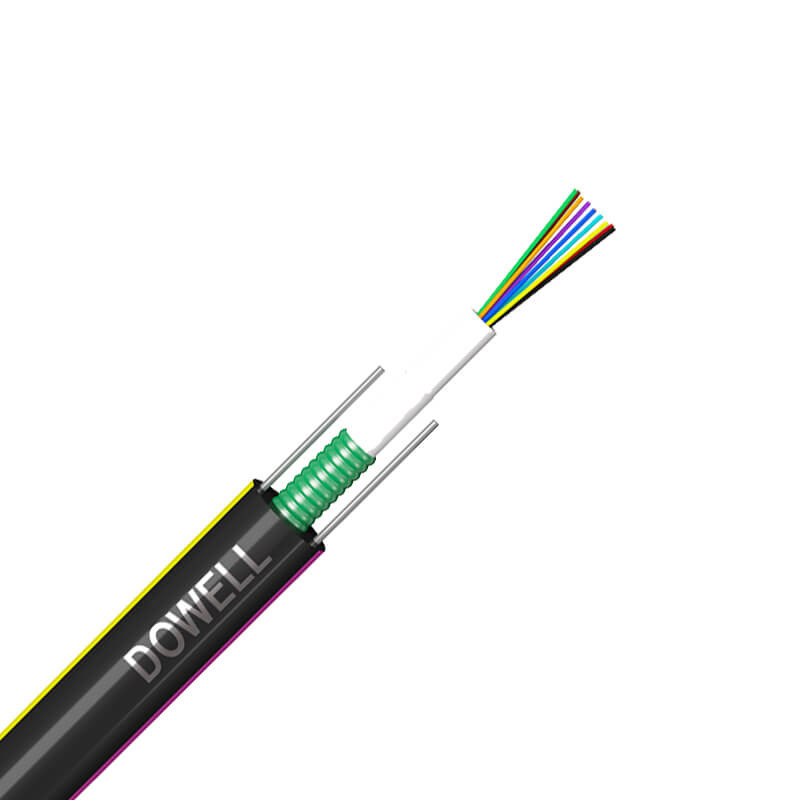

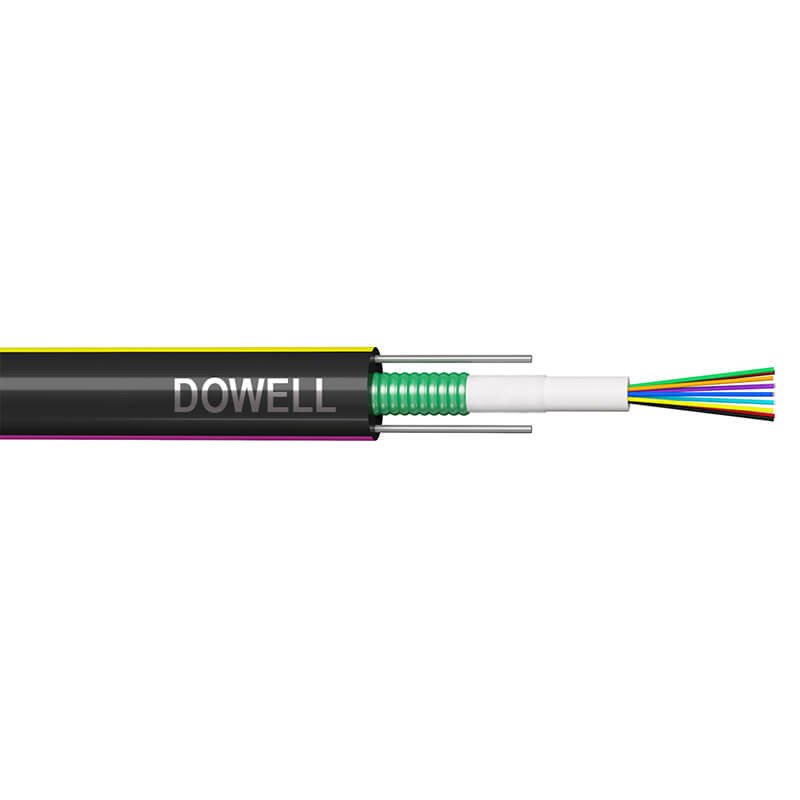

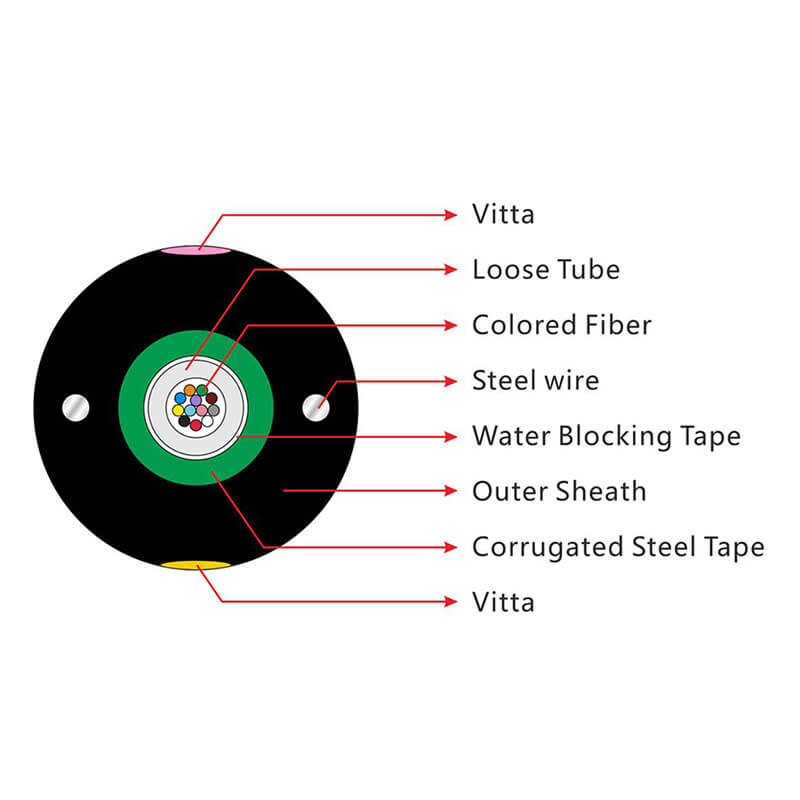

Light armored cable,singlemold/multimode fiber are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath over it .

Optical Characteristics:

    G.652 G.657 50/125um 62.5/125um
Attenuation
(+20 )		 @850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.36 dB/km
@1550nm ≤0.22 dB/km ≤0.23 dB/km
Bandwidth @850nm     ≥500 Mhz.km ≥200 Mhz.km
Class A 850nm @1300nm     ≥1000 Mhz.km ≥600 Mhz.km
Numerical aperture     0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm

Technical Parameters:

Cable Type Fiber Count Cable
Diameter
mm		 Cable
Weight
Kg/km		 Tensile
Strength
Long/Short
Term N		 Crush
Resistance
Long/Short
Term N/100m		 Bending Radius
Static/Dynamic
mm
GYXS/GYXTW-2~12 2-12 10 105 600/1500 300/1000 10D/20D
GYXS/GYXTW-2~12 2-12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-14~24 14-24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-26~36 26-36 14 190 1000/3000 1000/3000 10D/20D
GYXS/GYXTW-38~48 38-48 15 216 1000/3000 1000/3000 10D/20D

Application:

Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode 0

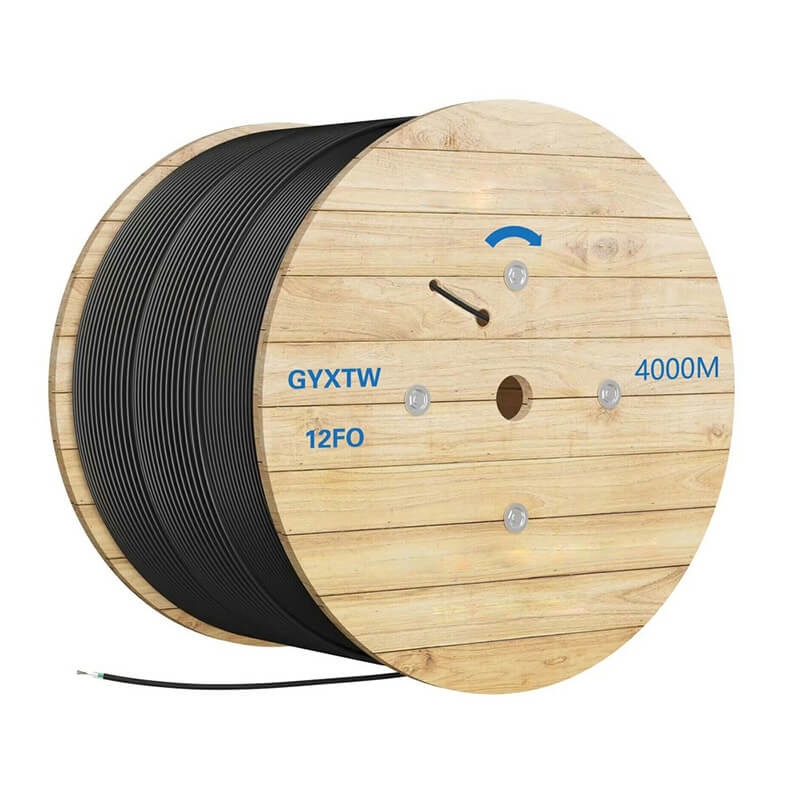

Our Package:

Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode 1

Production Flow:

Polyethylene Fiber Optic Cable PE Light Armored 48 Core GYXTW Singlemode 2
