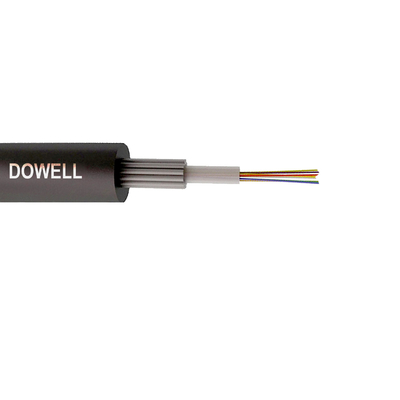

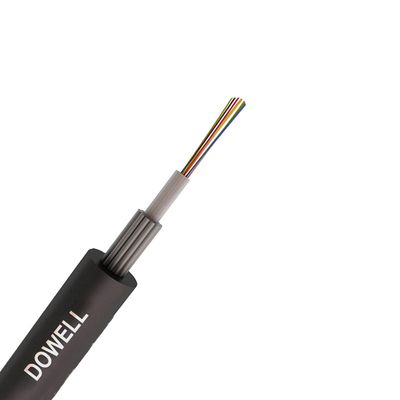

8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack

8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack
8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack
8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack 8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack 8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack

Large Image :  8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: GYXTY
Payment & Shipping Terms:
Minimum Order Quantity: 4KM
Delivery Time: 7- 15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 Roll Per 7 Days
Contact Now

8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack

Description
Fiber Type: G.652D / G657A1 Fiber Count: 8 Cores
Outer Jack: PE Color: Black
Highlight:

8 Core Fiber Optic Cable

,

8 Core outdoor fiber cable

,

Non Armored Fiber Optic Cable

8 Core Non-armored Underground Duct Optical Cable With Steel Wire Armored

GYXTY Steel Wire Armored Uni Tube Single Jacket cable is designed with the flexibility and versatility required for today's most demanding installations, including aerial, Conduit and Duct. Overall steel wire armoring provide good tensile and crush resistant.

Fiber Parameters:
  Unit Specification
No. Items G.652D / G657A1
1 Mode Field Diamete 1310nm μm 9.2 m ±0.4
1550nm μm 10.4 m ±0.5
2 Cladding Diameter μm 125 m ±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation(max.) 1310nm dB/km ≤0.35
1550nm ≤0.25

Cable Parameters:

Items Specifications
Fiber Count
Loose Tube Dimension 8
Material 2.4±0.2mm
Color PBT
Fiber White
Filling 1:Blue Orange Green Brown,Gray,White,Red,Black,
Purple,Pink,Aqua
2:(Blue Orange Green Brown,Gray,White,Red,Black,
Purple,Pink,Aqua)with one ring
Strengthening component Material 316 steel wire
Dimension 0.65mm
Root No. 14
Outer Jacket Dimension Φ7.9mm±0.2
Material PE
Root No. Black

Application:

8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack 0

Package:

8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack 1

Production Flow:

8 Core Fiber Optic Cable Non Armored Underground Duct With PE Outer Jack 2
