Detail Information

Parameter:	1×4,1×8,1×16,1×32	Connector:	SC, FC, LC
Fiber:	SM G657A Or Customized	Wavelength:	1260 ～ 1650nm
Insertion Loss:	≤7.4dB(1×8), ≤10.8dB(1×16), ≤14.0dB(1×32)	Return Loss:	≥55 DB
Operating Temperature:	-40℃ ~ +85℃	Storage Temperature:	-45℃ ~ +85℃
Highlight:	1×4 1×8 1×16 1×32 PLC Splitter , SC UPC Connector PLC Splitter , Metal Card Shell PLC Splitter

Product Description

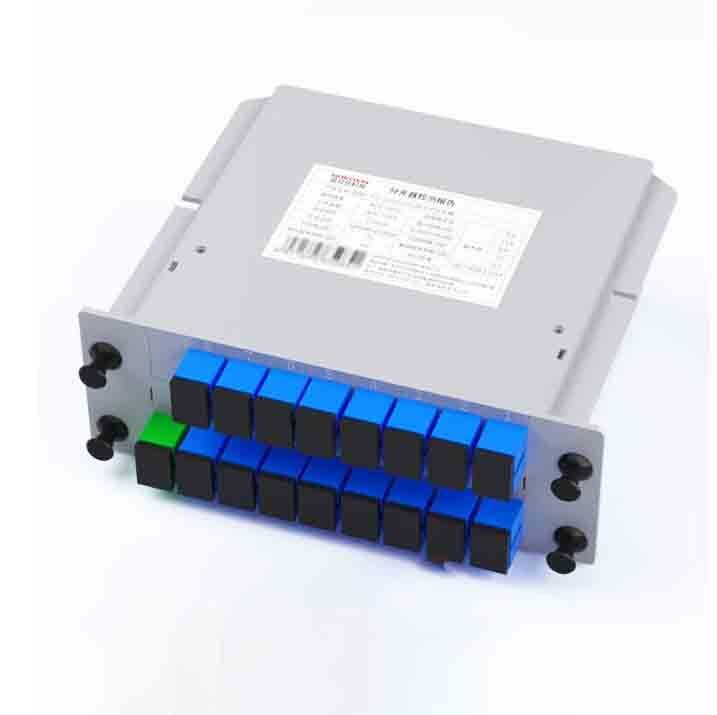

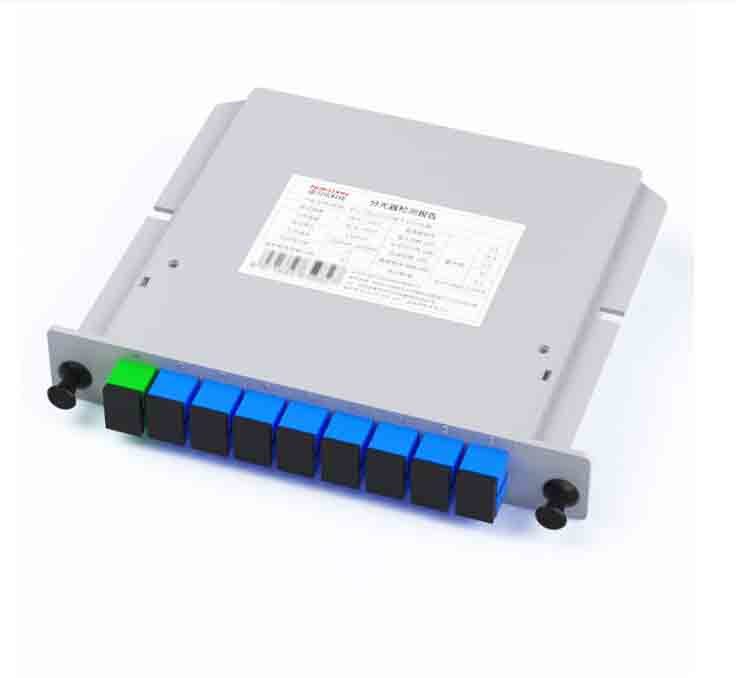

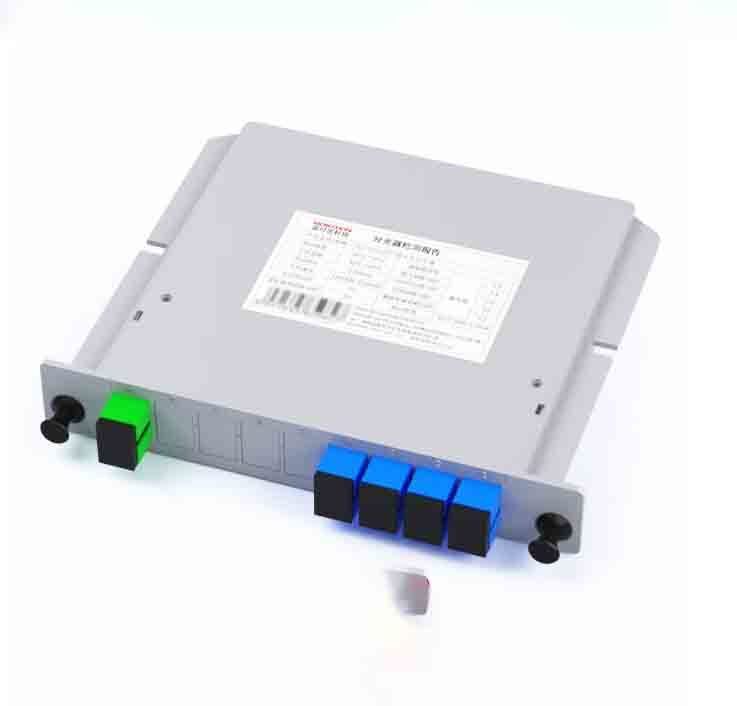

Single Mode 1X2 1X4 1X8 1X16 SC UPC Insert Optical Fiber Card PLC Splitter

PLC optical splitter is a passive optical component, designed to be inserted directly into optical distribution frame and fiber cabinet. It evenly splits one optical signal into multiple output ports, features low insertion loss, high return loss and stable optical performance. Widely used in FTTH GPON / EPON PON network for telecom, ISP and FTTX infrastructure projects. OEM & customized label and connector options are supported.

Specification

Parameter	14,18,116,132
Fiber Mode	Single-mode fiber G652D / G657A
Housing Material	Metal card shell
Connector	SC-UPC / SC-APC

Features

Low insertion loss and high return loss, stable optical transmission
Passive device, no power required, long service life
Compact card module design, easy insertion and replacement
Wide working wavelength range: 1260–1650nm, compatible with GPON, EPON
Metal casing, anti-pressure and good heat dissipation
Multiple split ratios available, SC UPC / SC APC connectors optional

Structure

Applications

FTTH / FTTX GPON & EPON broadband access network
Telecom operator, ISP, CATV optical communication system
Optical distribution cabinet, ODF box, fiber terminal cabinet
Campus network, community fiber access, smart city optical infrastructure
Data center passive optical network, LAN optical signal distribution

Frequently Asked Questions

Are you trading company or manufacturer?

70% of our products we manufactured and 30% do trading for customer service

How can you ensure the quality?

Good question! We are a one-stop manufacturer. We have complete facilities and over-15-years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.

Can you provide samples? Is it free or extra?

Yes, After price confirmation, we could offer the free sample, but the shipping cost need pay for by your side.

How long is your delivery time?

In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.

Can you do OEM?

Yes, we can

What is your payment term?

Payment <=4000USD, 100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.

How we can pay?

TT, Western Union, Paypal, Credit Card and LC

Transportation?

Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train

Tag:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW-C1X8

Minimum Order Quantity:	100 pieces
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	500pcs per 10 days
