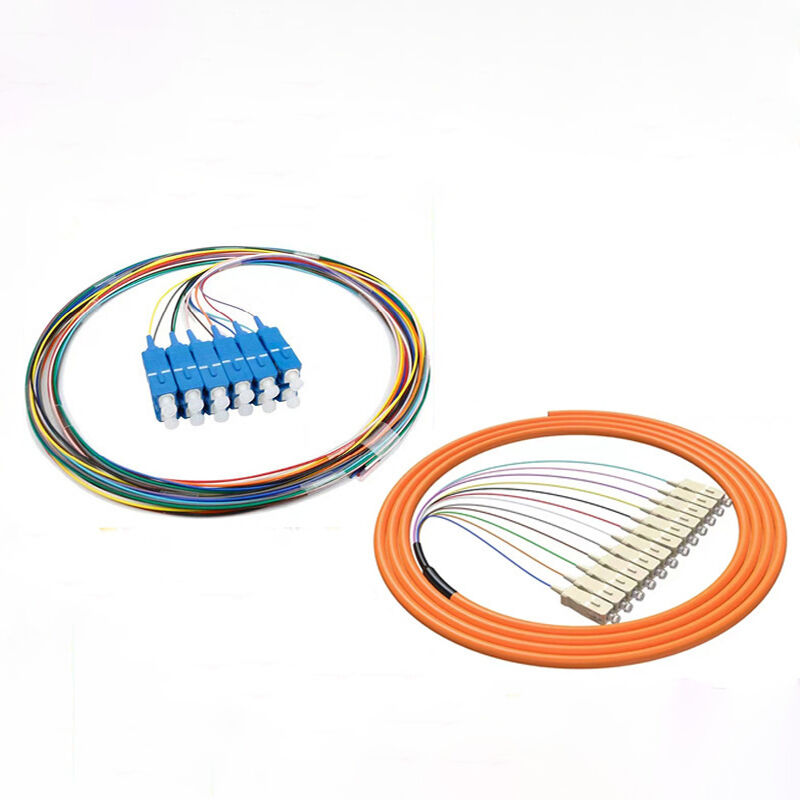

FTTH SC/LC/ST/FC Singlemode/Multi-mode 12-core Bundled Fiber Pigtail
A 12-core bundled fiber pigtail is a common component in fiber-optic cabling systems. It consists of 12 individual optical fibers bundled together in a single assembly, with one end terminated with SC/LC/ST/FC connectorsand the other end left as bare fiber for splicing.
Specification:
| Jacket Material |
LSZH or PVC |
Jacket Color |
Yellow (SM), Orange (MM), Aqua (OM3/OM4) |
| Length |
1m / 1.5m / 2m (custom lengths available) |
Connector Type |
SC/LC/ST/FC APC or UPC |
Features:
1.1 12-core design. It contains 12 separate optical fibers, each capable of transmitting independent data signals. This makes it ideal for high-density environments where multiple signals need to be routed in a compact space.
1.2 Bundled structure. The fibers are grouped together in a single jacket, which simplifies installation and management. The individual fibers “fan out” from the bundle at the connector end, giving it the alternative name 12-fiber fanout pigtail.

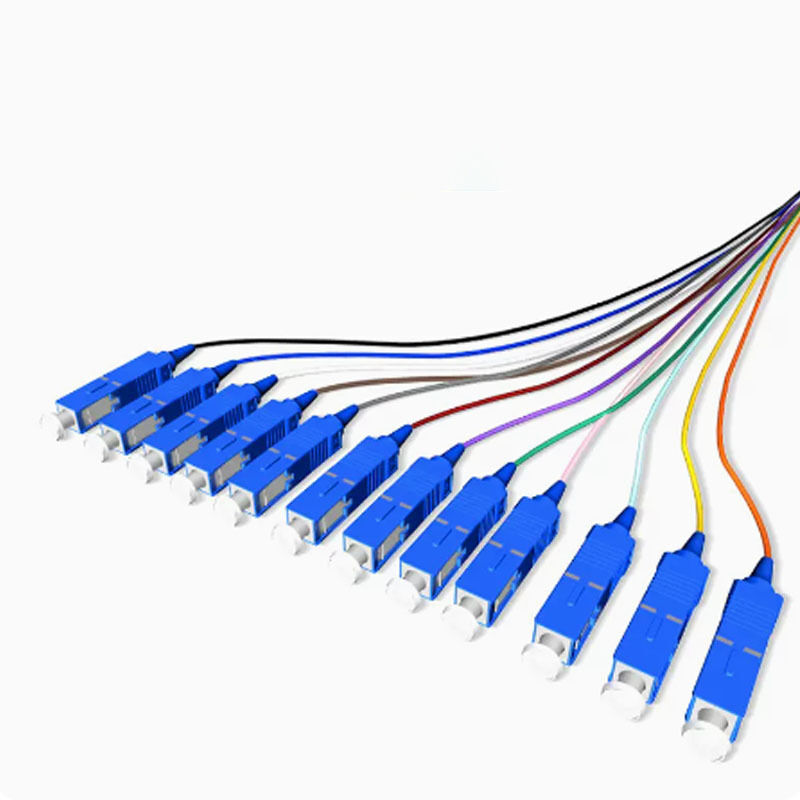

1.3 Common connector types. The terminated end can have various connector types, such as SC, LC, FC, or ST. The SC connectors in your photo are widely used in telecom and data networks for their simple, push-pull design.
1.4 Color-coded fibers. Each of the 12 fibers is color-coded (black, blue, orange, green, brown, gray, white, red, purple, pink, yellow, and aqua, following the TIA/EIA-598 color code). This helps technicians identify and manage each core during installation and maintenance.
Application:
2.1 Telecom central offices and data centers
2.2 Fiber-to-the-home (FTTH) networks
2.3 High-density cabling racks and distribution frames
2.4 Any scenario where 12 separate fiber connections are needed in a single, organized bundle
FAQ:
1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples ? Is it free or extra?
A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term ?
A: Payment <=4000USD,100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union , Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
