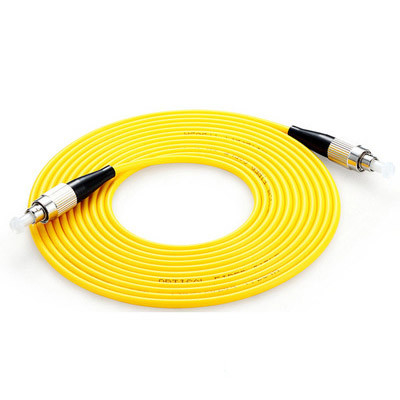

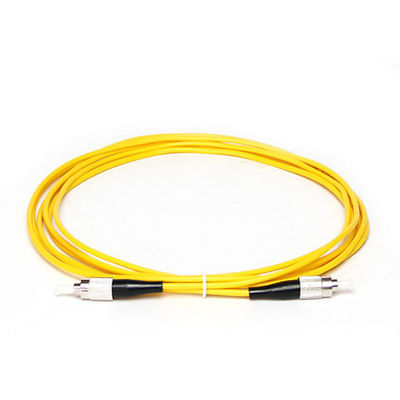

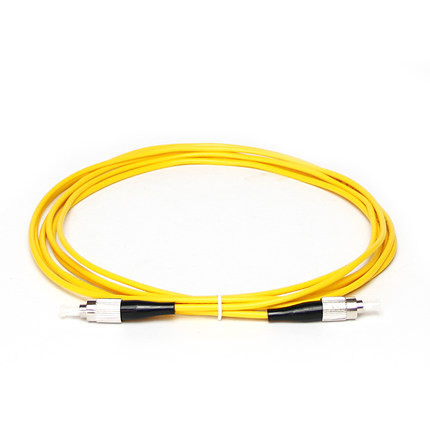

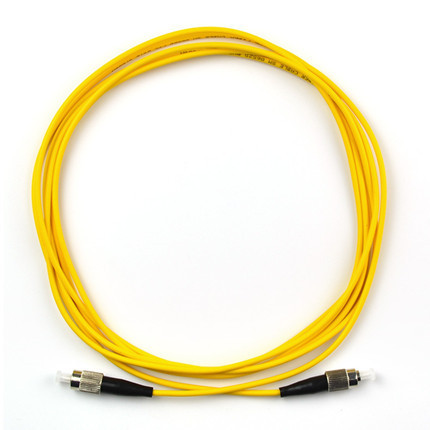

LSZH FC To FC Single Moder Fiber Optic Patch Cord 1m 2m 5m

LSZH FC To FC Single Moder Fiber Optic Patch Cord 1m 2m 5m

Fiber optic patch cord (also called a fiber jumper or optical patch cable) is a short, flexible cable with connectors on both ends, used to connect optical networking equipment, such as switches, routers, and transceivers.

Specification:

Features:

1.1 Core Types:
      Single-mode (SMF): Uses a thin core (~9µm) for long-distance, high-bandwidth applications (e.g., telecom, data centers).
      Multimode (MMF): Uses a thicker core (~50µm or 62.5µm) for shorter distances (e.g., LANs, security systems).
1.2 Connector Types:
      LC (small, high-density)
      SC (snap-in, common in telecom)
      FC (screw-on, secure but less common now)
      ST (bayonet-style, used in older networks)
      MTP/MPO (multi-fiber, for high-speed data centers)
1.3 Cable Jacket Types:
      Simplex: Single fiber, one connector per end.
      Duplex: Two fibers (for Tx/Rx), often in zip-cord style.
      Armored: Reinforced for harsh environments.
1.4 Polish Types (for connectors):
      UPC (Ultra Physical Contact): Blue connectors, low reflection.
      APC (Angled Physical Contact): Green connectors, even lower reflection (used in GPON, CATV).

Application:

2.1 CATV System

2.2 Telecommunications
2.3 Optical Nteworks
2.4 FTTH (Fiber to the Home)
2.5 High speed transmission Systems
2.6 Testing / Measurement In struments

Package:
