ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

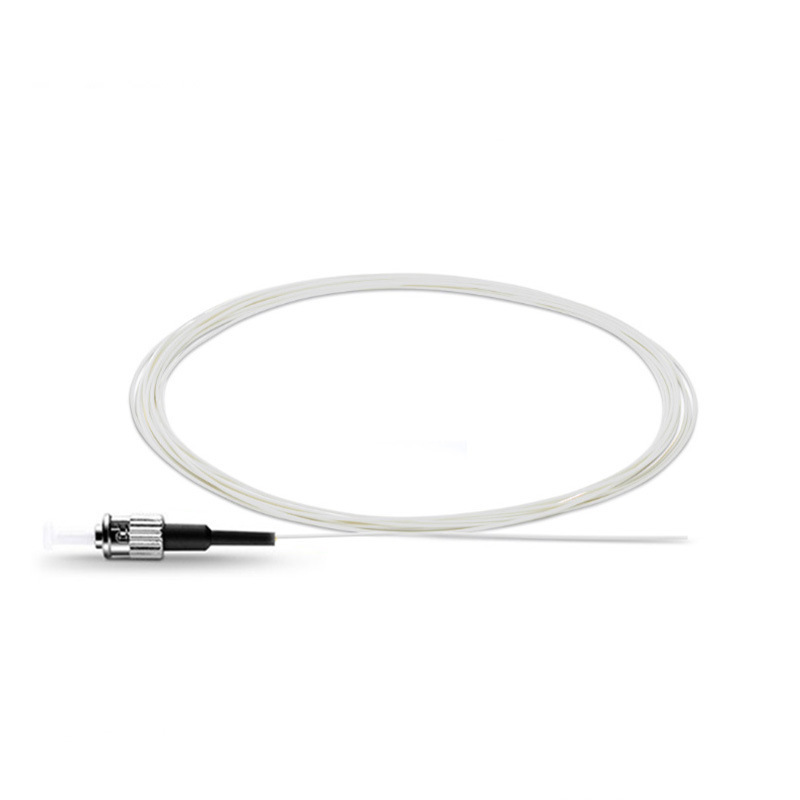

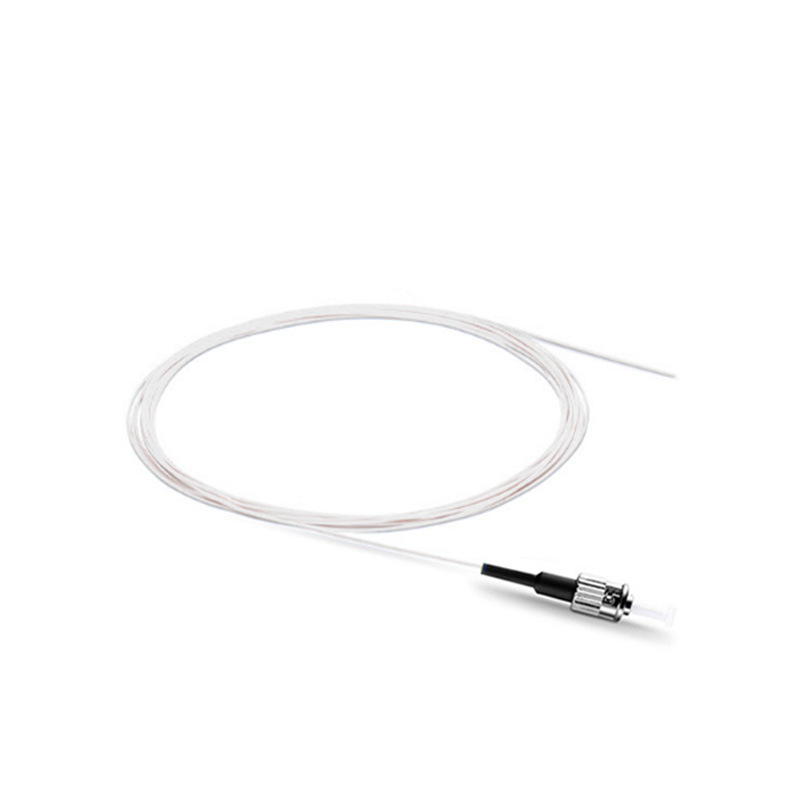

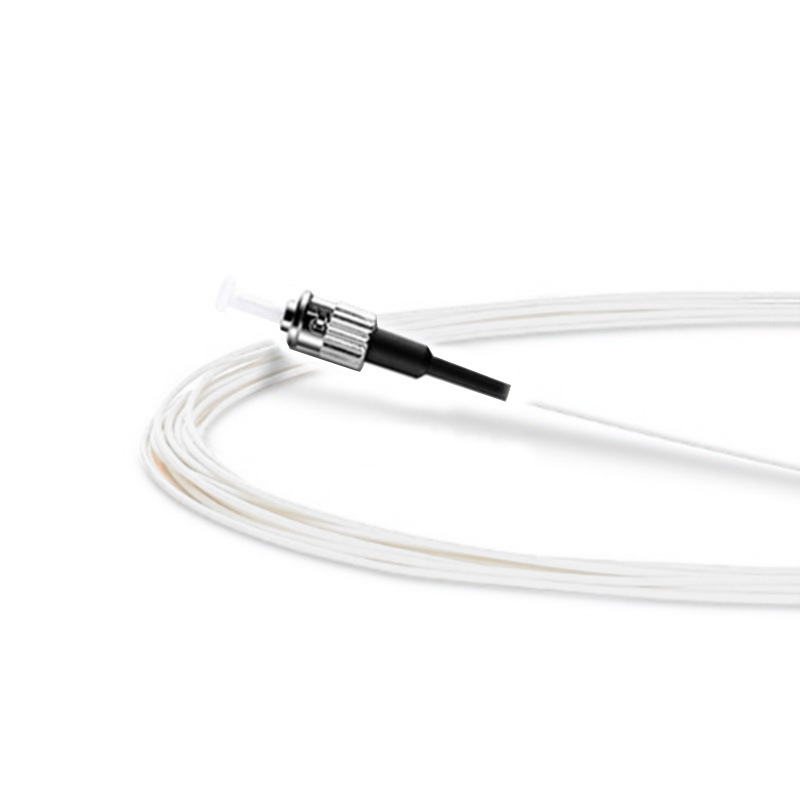

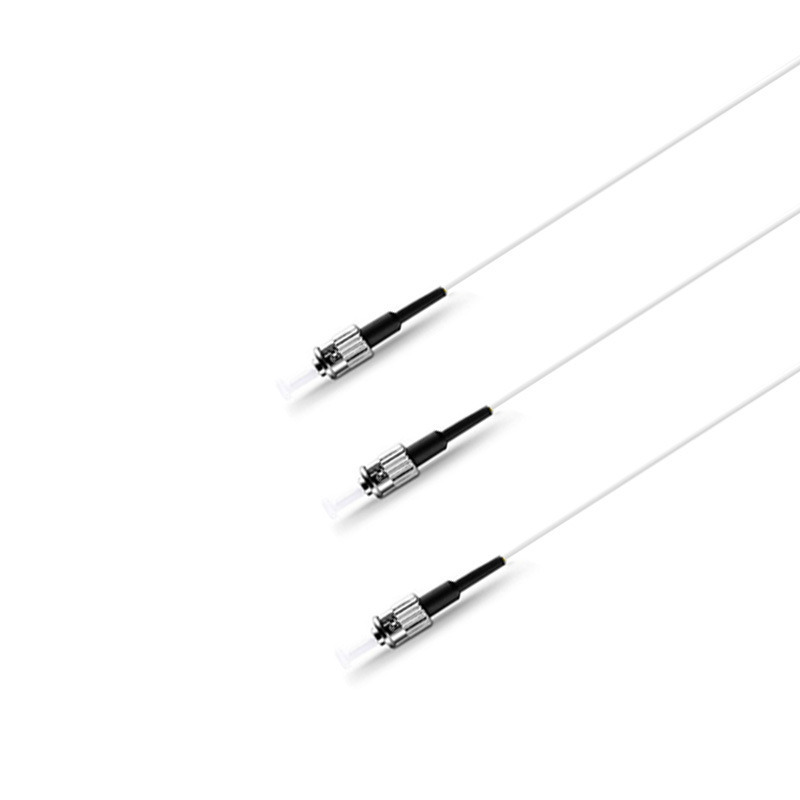

Large Image : ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

Product Details:

Place of Origin:	China
Brand Name:	DOWELL

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	5000pcs per 7 days

Contact Now

ST/UPC Simplex Fiber Optic Pigtail with LSZH Jacket and Low Insertion Loss for Reliable Termination

Description

Insertion Loss (dB):

0.25

Return Loss (dB):

55/65

Connectors Types:

CONNECTOR

Fibre Types:

Multimode/Singlemode

Highlight:

ST/UPC Fiber Optic Pigtail

LSZH Jacket Fiber Optic Patch Cord

Low Insertion Loss Fiber Optic Jumper

1M, 1.5m ST/UPC Simplex Fiber Optic Pigtail LSZH Jacket, 0.9mm

A fiber optic pigtail is a short, single-fiber cable with a factory-installed connector on one end and a bare, exposed fiber on the other. The name "pigtail" comes from this configuration—it looks like a short tail. The primary purpose of a pigtail is to terminate a fiber optic cable, either by splicing or connecting, in a controlled environment to provide a reliable, low-loss connection point.

Specification

CONNECTOR PERFORMANCE
LC, SC, ST and FC connectors	Multimode	Singlemode
	at 850 and 1300 nm	UPC at 1310 and 1550 nm
	APC at 1310 and 1550 nm	Typical
Insertion Loss (dB)	0.25	0.25
Return Loss (dB)	-	55

Structure

Connectorized End: This end has a standard connector (like SC, LC, FC, ST, or MTP/MPO for multi-fiber) that is polished and precision-made in a factory. This ensures optimal performance.
Bare Fiber End: This is the "working" end. The fiber's buffer coating is stripped away, leaving the bare glass cladding and core exposed. This end is designed for splicing.
Cable Jacket: A short, ruggedized jacket (often 900µm or 2mm/3mm) protects the fiber. It is usually color-coded (orange for multimode, yellow for single-mode).

Application

Fiber Distribution Frames / Patch Panels
Optical Network Terminals (ONTs) in FTTx installations
Splice Closures for aerial, underground, or building entry points
Data Center Main Distribution Areas (MDAs)
Telecom Central Offices
