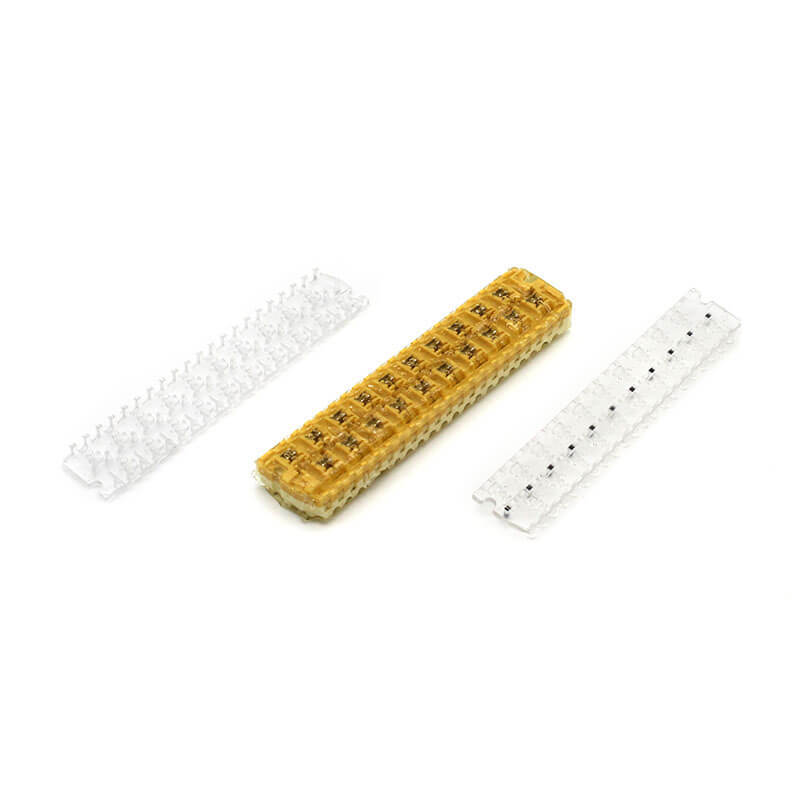

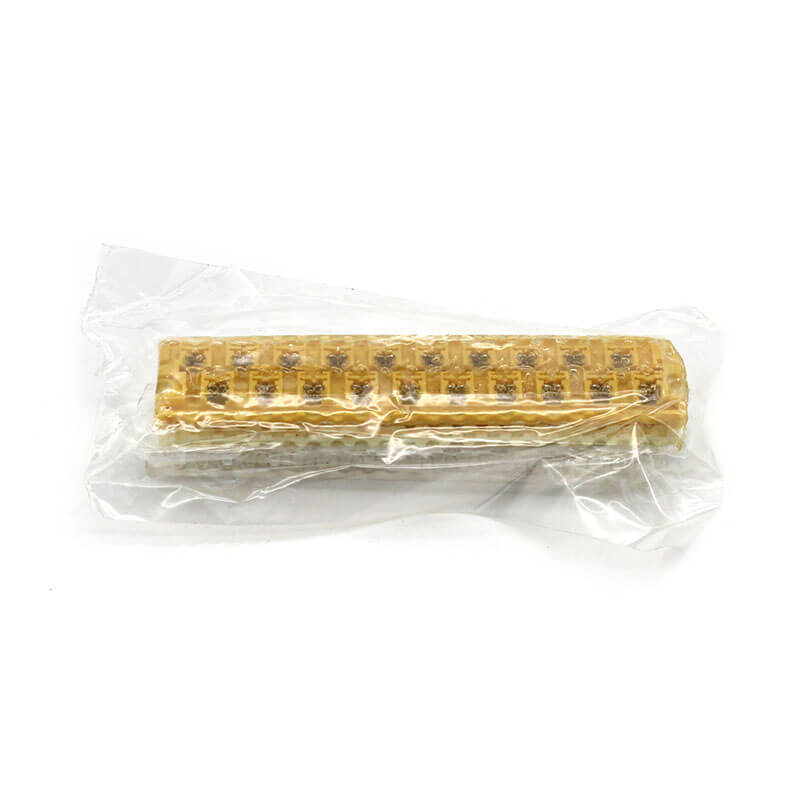

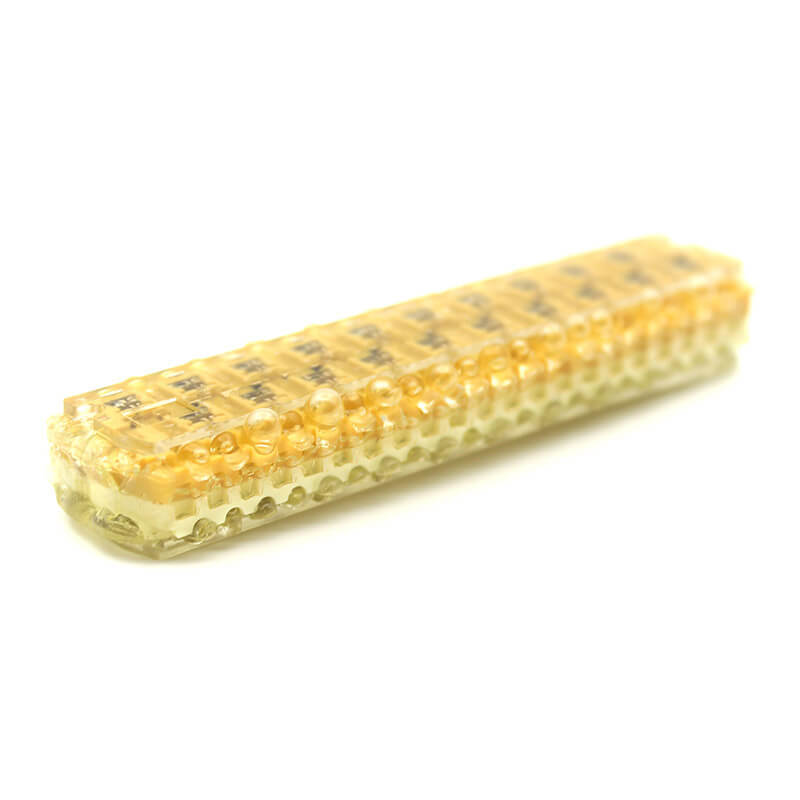

10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables

10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables
10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables
10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables 10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables 10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables 10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables

Large Image :  10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables

Product Details:
Place of Origin: China
Brand Name: DOWELL
Model Number: DW-4005G
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7- 15 Days
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000PCS Per 7 Days
Contact Now

10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables

Description
Housing Material: PC (UL 94v-0) With Gel Sealed Contacts Material: Tinned Phosphor Bronze
Wire Insertion Force: 45N Typical Wire Pull-Out Force: 40N Typical
Max Insulation Diameter: 1.65 Mm Cable Style And Wire Dia: 0.32-0.65 Mm (28-22 AWG)
Highlight:

10-pair mini splicing module

,

KRONE LSA gel module

,

mini splicing module with gel

10-Pair Mini Splicing Module with Gel
The 10-pair Communication Cable Connecting Module is designed for connecting all plastic communication cables (diameter 0.32 - 0.65mm) through direct, bridge, and multiple connections. Widely used in communication circuits, this module features a tuning fork type and sheet joint contact design for reliable connections. The clear cover enables easy pair identification and troubleshooting.
Key Features:
  • Gel-sealed housing for environmental protection
  • Tuning fork and sheet joint contact design
  • Clear cover for easy pair identification
  • Suitable for 0.32-0.65mm (28-22 AWG) cables
  • Wide operating temperature range
Specifications:
Housing Material PC (UL 94v-0) with gel sealed
Contacts Material Tinned Phosphor Bronze
Wire Insertion Force 45N Typical
Wire Pull-Out Force 40N Typical
Max Insulation Diameter 1.65 mm
Cable Style and Wire Diameter 0.32-0.65 mm (28-22 AWG)
Storage Temperature -40℃～120℃
Operating Temperature -30℃～80℃
Relative Humidity <90% (@20℃)
Atmospheric Pressure 70 Kpa～106 KPa
Insulation Resistance R≥10000M Ohm
Contact Resistance Vary 1m Ohm
Constant Current 5KA 8/20u Sec
Surge Current 10KA 8/20u Sec
Applications:
Ideal for connecting plastic communication cables in various configurations including direct, bridge, and multiple connections. Commonly used in communication circuits where reliable connections and easy maintenance are required.
10-Pair Mini Splicing Module with Gel for 0.32-0.65mm Cables 0

Tag:

krone connection module,

10 pair disconnection module,

terminal block module
