Name: 25-Pair Gel Splicing Module with 45N Insertion Force
Brand: DOWELL INDUSTRY GROUP LIMITED
SKU: DW-4000G
Price: 4,999.45 USD
Availability: InStock

Detail Information

Housing Material:	PC (UL 94v-0) With Gel Sealed	Contacts Material:	Tinned Phosphor Bronze
Wire Insertion Force:	45N Typical	Wire Pull-Out Force:	40N Typical
Max Insulation Diameter:	1.65 Mm	Cable Style And Wire Diameter:	0.32-0.65 Mm (28-22 AWG)
Highlight:	25-pair fiber optic splicing module , gel splicing module with 45N force , fiber optic patch cord splicing module

Product Description

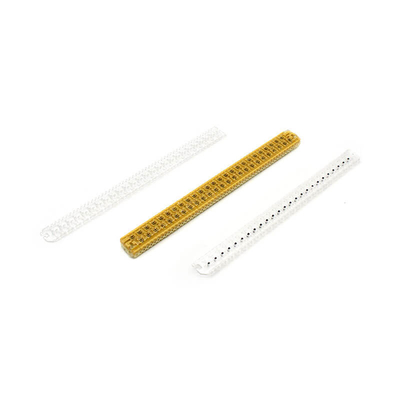

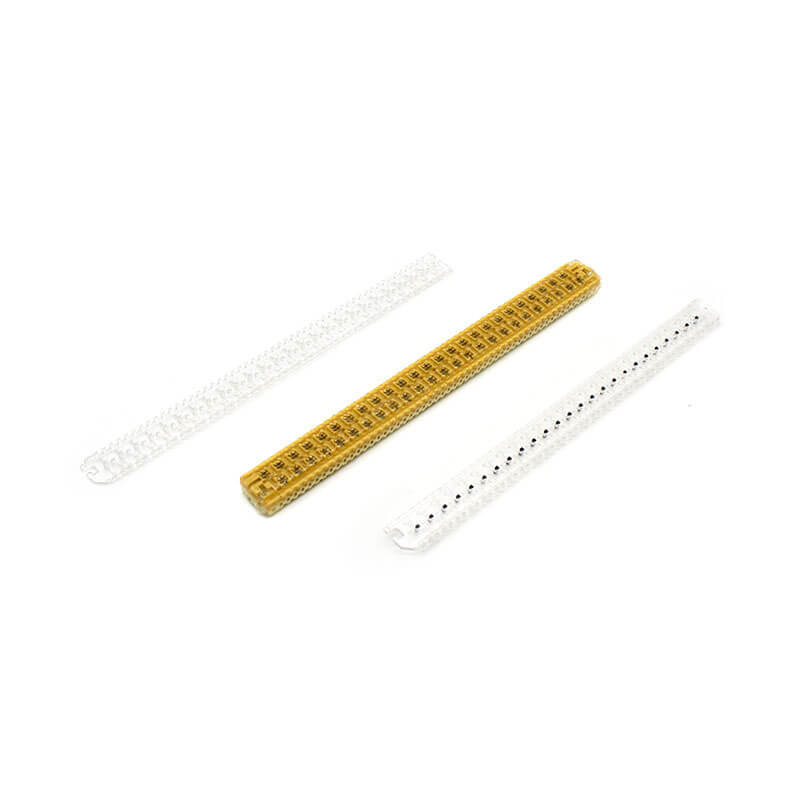

25-Pair Splicing Module with Gel

This 25-Pair Splicing Module with Gel delivers reliable performance in extreme conditions, including high humidity and water immersion, while maintaining insulation resistance and circuit integrity.

Specifications

Housing Material	PC (UL 94v-0) with gel sealed	Contacts Material	Tinned Phosphor Bronze
Wire Insertion Force	45N Typical	Wire Pull-Out Force	40N Typical
Max Insulation Diameter	1.65 mm	Cable Style and Wire Diameter	0.32-0.65 mm (28-22 AWG)
Storage Temperature	-40℃～120℃	Operating Temperature	-30℃～80℃
Relative Humidity	<90% (@20℃)	Atmospheric Pressure	70 Kpa～106 KPa
Insulation Resistance	R≥10000M Ohm	Contact Resistance Vary	1m Ohm
Constant Current	5KA 8/20u Sec	Surge Current	10KA 8/20u Sec

Applications

The 25-pair Communication Cable Connecting Module is designed for connecting all plastic communication cables (diameter 0.32 - 0.65mm) through direct connection, bridge connection and multiple connection. It is widely used in communication circuits. The tuning fork type contact design ensures reliable connections, while the clear cover module allows for easy pair identification and troubleshooting.

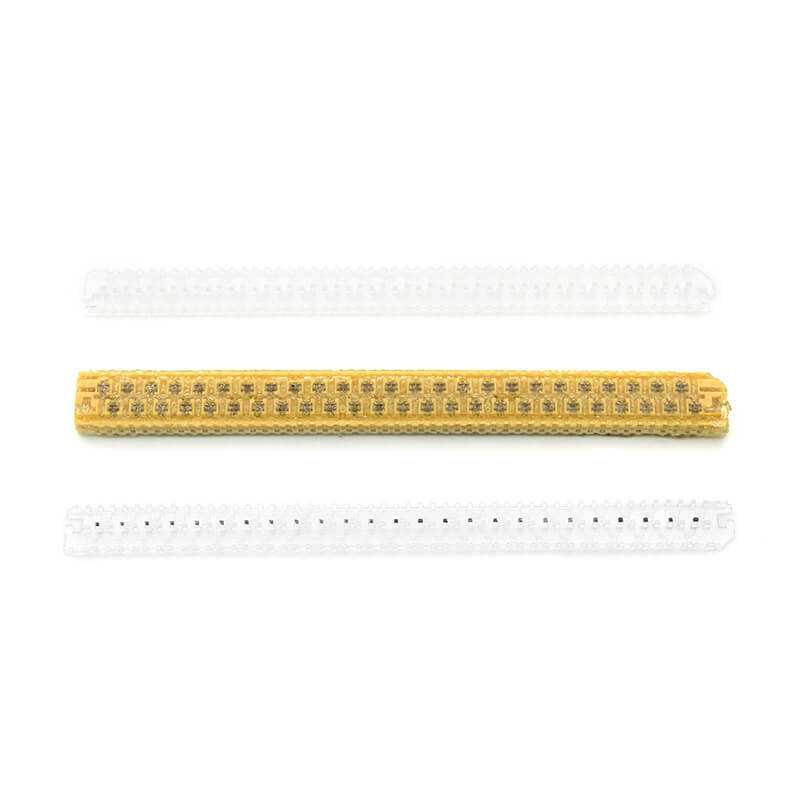

Key Elements

Contact Element
Element of isolation
Sealing element (gel) for filler connectors

Tag:

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW-4000G

Minimum Order Quantity:	1000pcs
Delivery Time:	7-15 days
Payment Terms:	T/T
Supply Ability:	5000pcs per week
