Detail Information

Insertion Loss:	≤0.30dB(SM)/≤0.5dB(MM)	Return Loss:	≥50dB (PC)/ ≥60dB (APC)
Working Temperature:	-20℃ To +70℃	Storage Temperature:	-40℃ To +85℃
Pull-out Force:	≤19.6.N	Flame Resistance:	UL94-V0
Highlight:	Outdoor fiber patch cord , 2*5.0mm fiber patch cord , SC APC fiber patch cord

Product Description

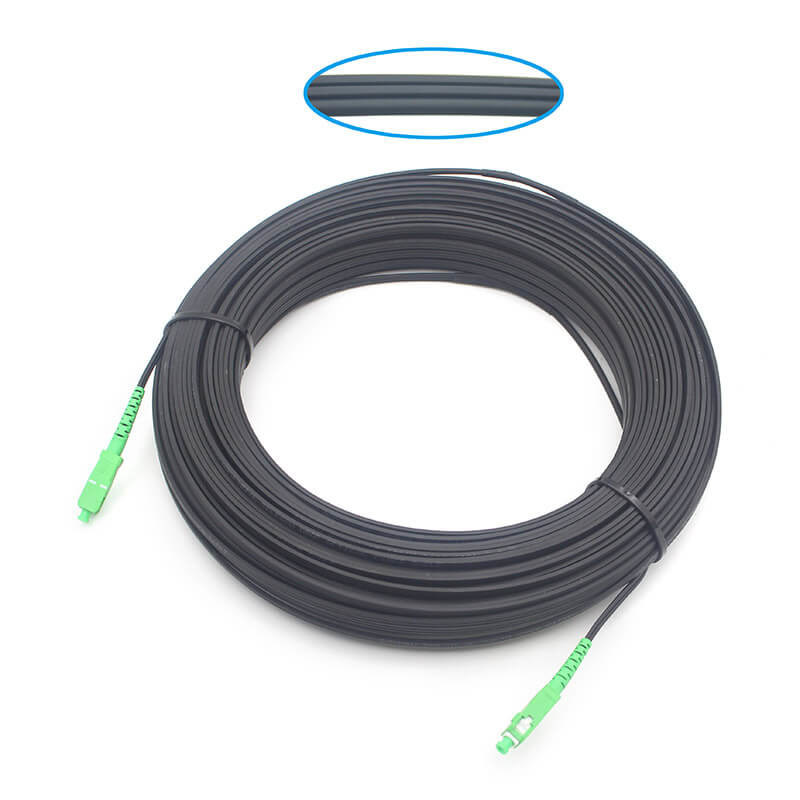

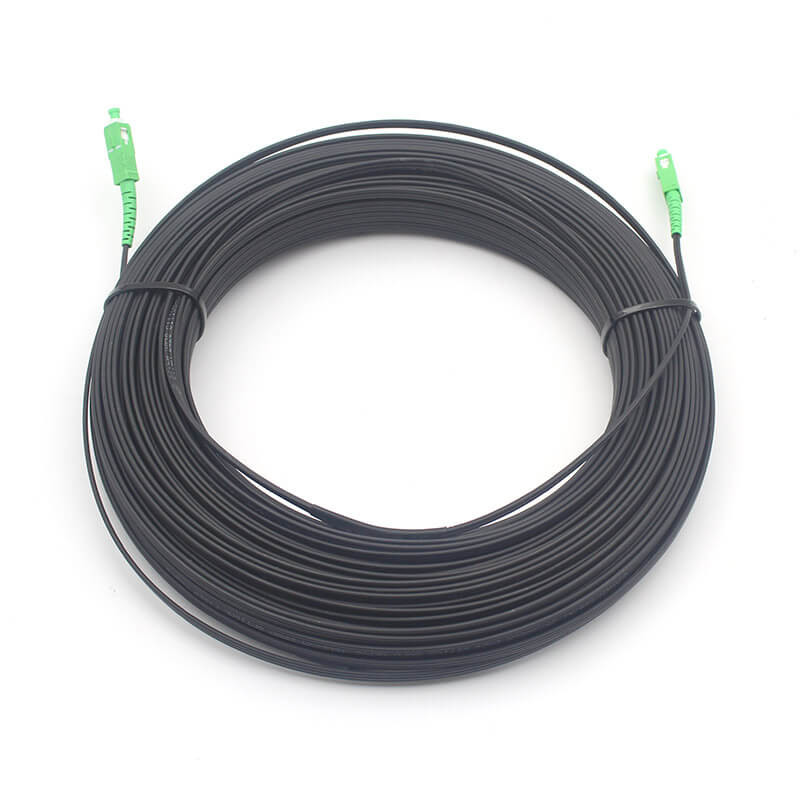

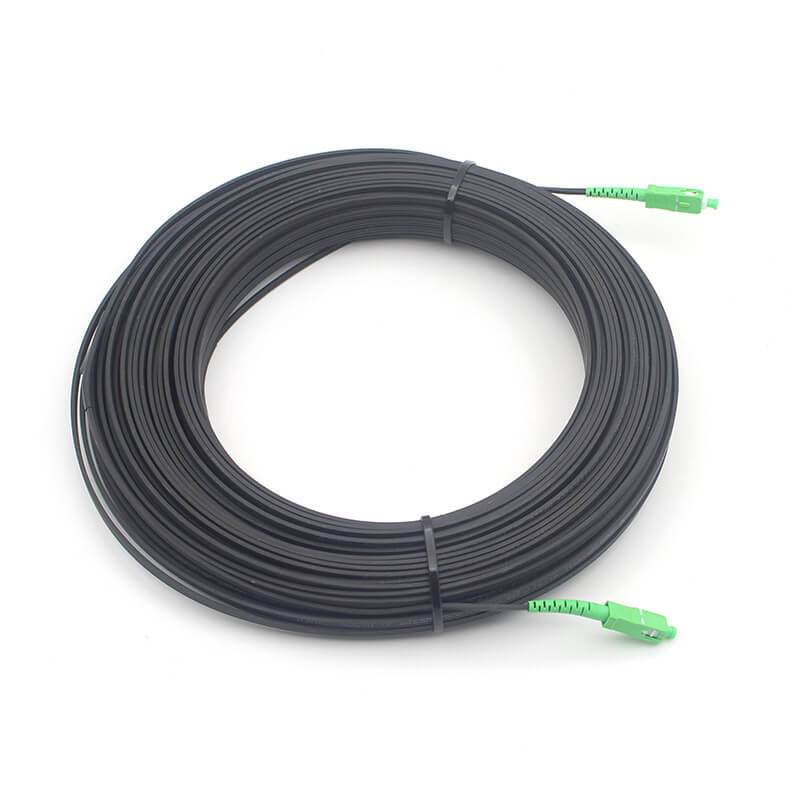

Outdoor 2*5.0mm FTTH SC APC Flat Drop Patch Cord With Balck Jacket

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.

Specification:

1.1 Patch cord versions:

Jumper tolerance requirement
Overall length (L) (M)	length of tolerance (CM)
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

2. Cable Parameters:

Cable	Out sheath	Weight	Minimum allowable		minimum allowable		Minimum Bending		Storage
Count	Diameter	(KG)	Tensile Strength		Crush Load		Radius		temperature
(F)	(MM)		(N)		(N/100mm)		(MM)		(℃)
			short term	long term	short term	long term	short term	long term
1	(2.0±0.2)×(5.0±0.3)	21.7	400	200	2200	1000	20D	10D	-20 ~ +60

3. Optical Characteristics:

Item	Parameter				Reference
	Single mode		Multi mode
	Standard	Elite	Standard	Elite	/
Test the wavelength	1310-1550nm		850-1300nm		/
Insertion loss(Typical)	≤0.30dB	≤0.20dB	≤0.5dB	≤0.20dB	IEC 61300-3-34
Insertion loss(Max)	≤0.75dB	≤0.35dB	≤0.75dB	≤0.35dB
Return loss	≥50dB (PC)/	≥55dB (PC)/	≥30dB(PC)	≥30dB(PC)	IEC 61300-3-6
Return loss	≥60dB (APC)	≥65dB (APC)	≥30dB(PC)	≥30dB(PC)	IEC 61300-3-6
Working temperature	-20℃to +70℃				/
Storage temperature	-40℃to +85℃				/

Features:

1.1 Good durability

1.2 Good exchangeability

1.3 High temperature stability

1.4 Low insertion loss and back reflection loss

1.5 Superior Quality Standard PC/UPC/APC Polishing

1.6 Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Application:

2.1 Telecommunication subscriber loop
2.2 Fiber to the home (FTTH)
2.3 LAN/WAN
2.4 CATV

Place of Origin:	China
Brand Name:	DOWELL
Model Number:	DW-SA5-SA5

Minimum Order Quantity:	500 pieces
Delivery Time:	7-15 Days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000 PCS Per 7 Days

Outdoor 2*5.0mm FTTH SC APC Flat Drop Patch Cord Singlemode With Balck Jacket

Outdoor fiber patch cord

2*5.0mm fiber patch cord

SC APC fiber patch cord
