MSAT 5 Mid-Span Wire Stripper To Buffer Tubes 1.9mm - 3.0mm

MSAT 5 Mid-Span Wire Stripper To Buffer Tubes 1.9mm - 3.0mm

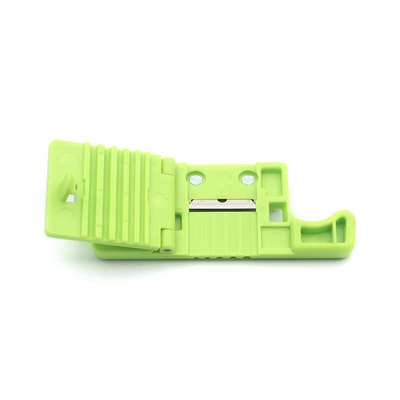

The MSAT 5 Mid-Span Access Tool is designed to allow easy access to the fibers in multiple buffertube sizes, all with no adjustments or die changes. The tool is applicable to buffer tubes 1.9mm - 3.0mm in diameter.

Specification:

Features:

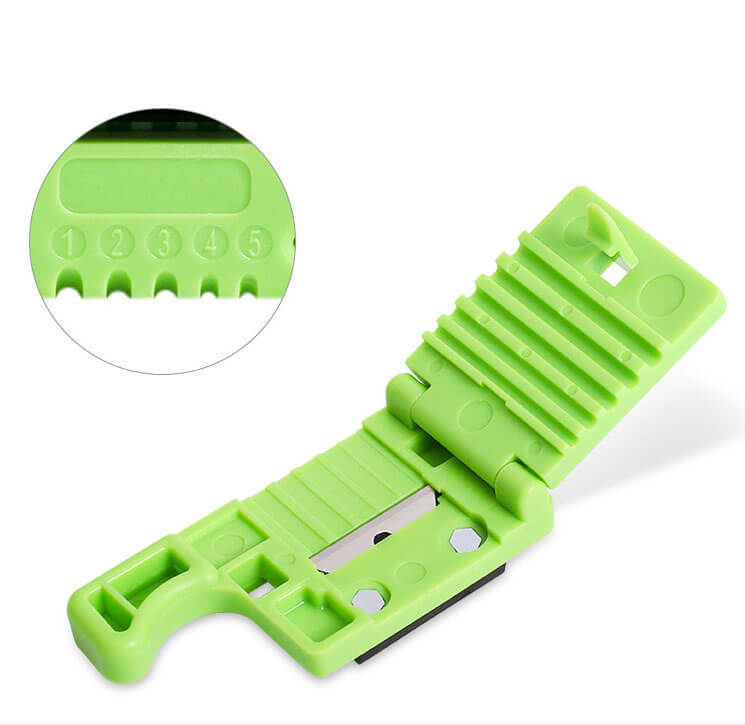

1.1 5 convenient built-in sizing channels quickly determine the proper diameter channel for buffer tubes ranging from 1.6 mm to 3 mm

1.2 Lightweight & durable polymer material

1.3 Safe, compact & ergonomic design fits comfortably in hand for easy operation

1.4 Locking mechanism ensures the tool will remain closed during operation

Application:

Blade Replacement:
2.1 Note: Use caution when handling blades and dispose of used blades properly.

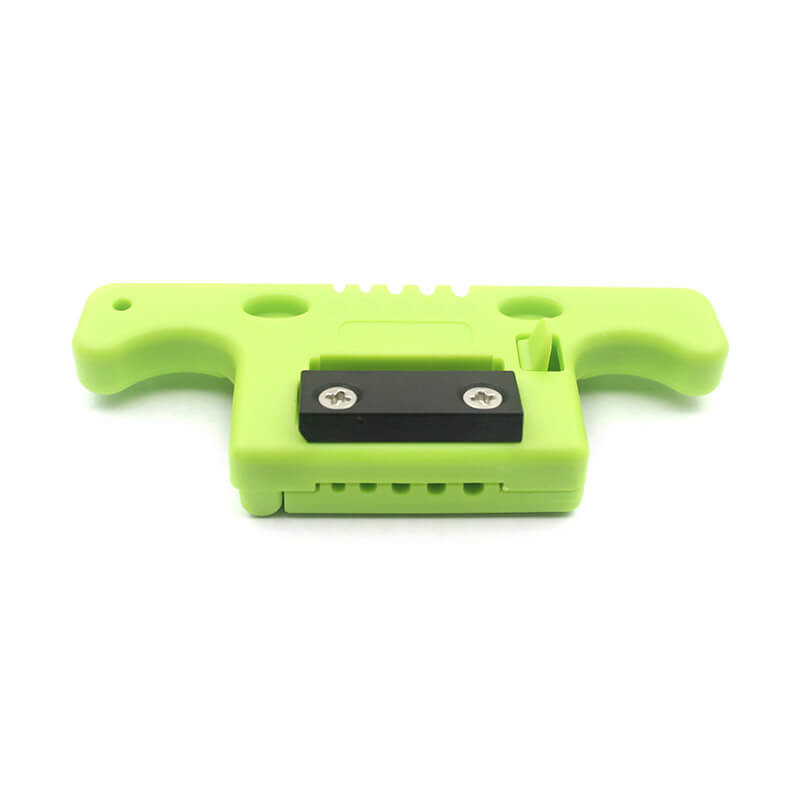

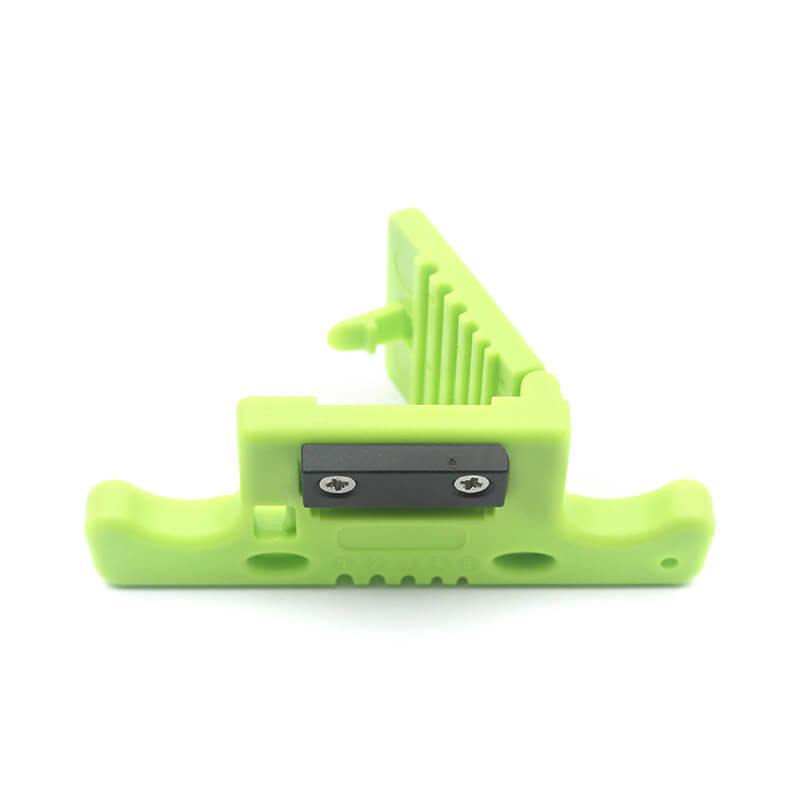

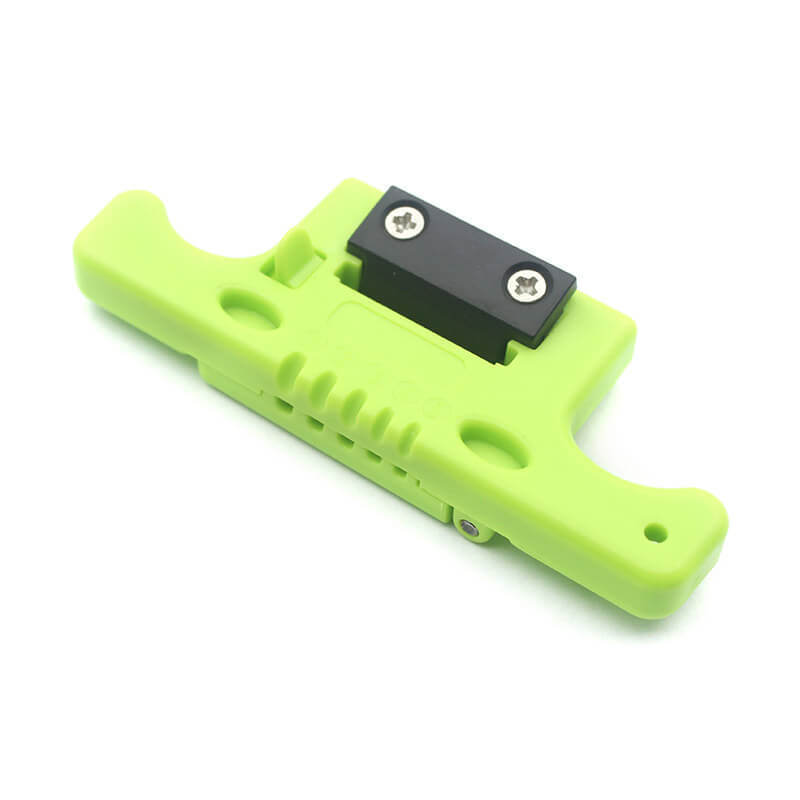

2.2 Carefully observe blade placement as shown. The front blade corners rest against the molded step in the tool body.
2.3 Phillips screwdriver to remove the two screws in the blade cover.
2.4 Remove old blade.
2.5 Install new blade and locate it as shown. Reinstall blade cover and screws.
