3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter

3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter
3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter 3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter 3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter 3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter

Large Image :  3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Model Number: DW-2000
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500 PCS Per 7 Days
Contact Now

3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter

Description
Use: FTTH Cable Type: Flat Drop Jacket
Capacity: 0.250" Cut Type: Slit
Weight: 0.207 Lbs Warranty Time: 1 Year
Highlight:

ftth adsl vdsl tester

,

ftth network cable crimping tools

3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter

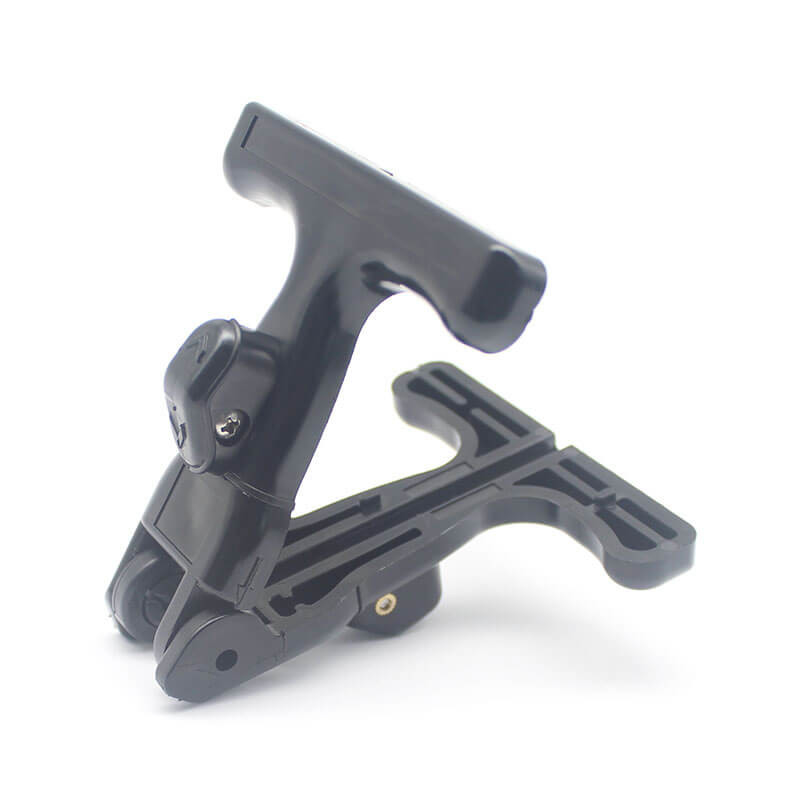

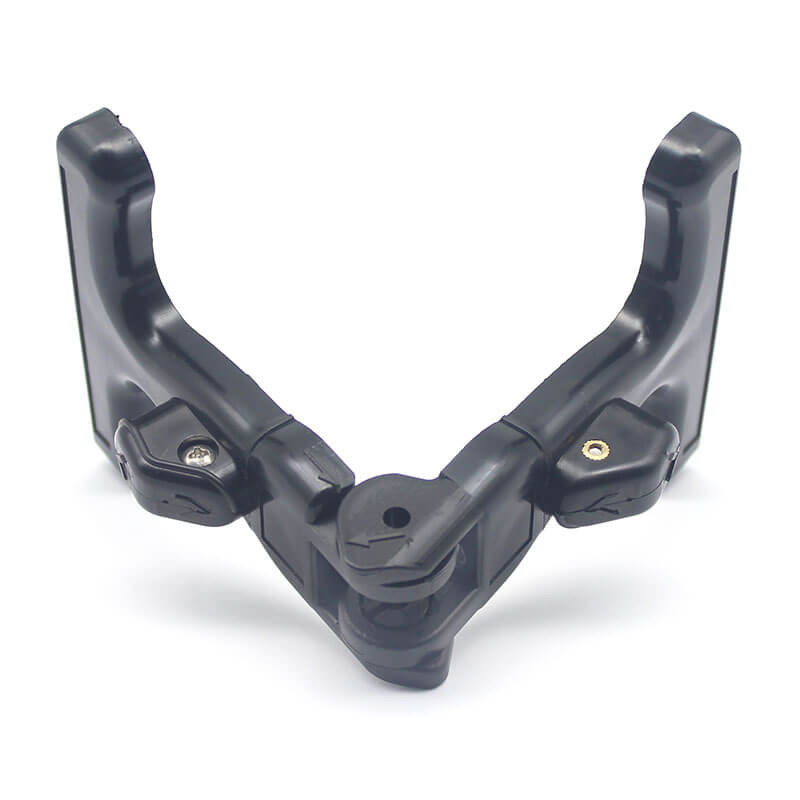

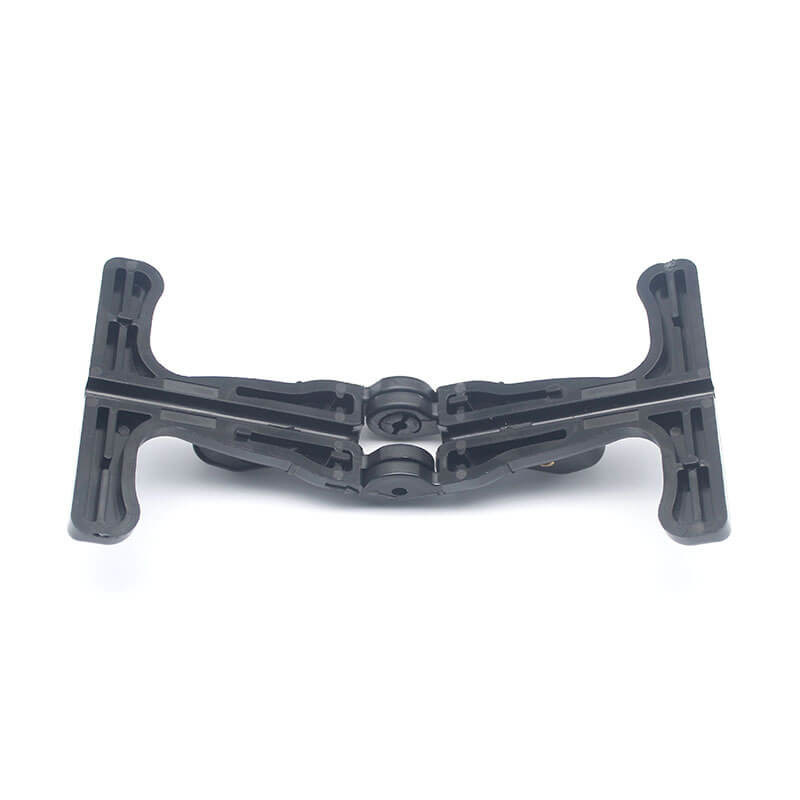

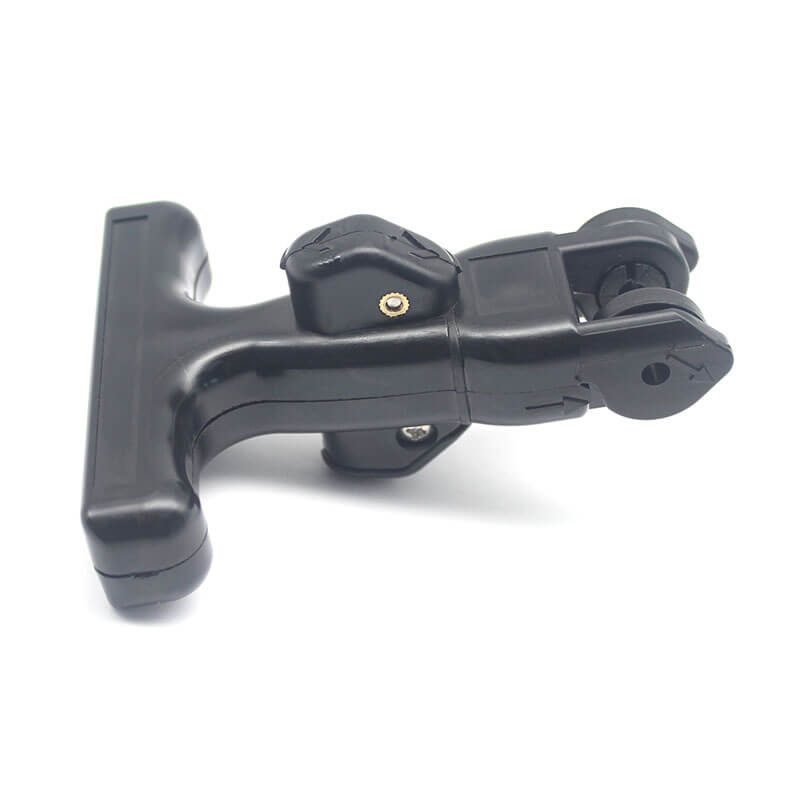

This Fiber Optic Drop Cable Slitter is a tool that simplifies the slitting of drop cable jackets at the end of the cable or mid-span and was developed
specifically for FTTH technicians working with flat fiber drop cables. For flat cables, where the width.305”-.350” and the height is .155”-.185”. These are the dimensions of a typical Corning SST-Drop flat cable with a jacket thickness of 0.03-0.04 inches. The tool will work on other cables with similar dimensions.

Specification:
Cut Type Slit
Cable Type Flat Drop Jacket
Cable Diameter 3.2-9.6 mm
Hole Diameter 0.143”
Capacity .250”

Features:

1.1 Puts a slit on both sides of the jacket allowing easy access to the fiber or strength member. The ease of use makes this tool truly unique! To use just position the tool around the cable, pull and slit. A simple twist of the cable allows the jacket and strength members to separate from the buffer tube leaving the fiber undamaged.

1.2 Designed for .250” flat drop cables. it comes completely assembled with two blades, which can be reversed once the blades are worn. Replacement blades are also available under part number FOD-RB25 for a package of 25 blades.

Application:

3.2-9.6 mm Cable Fiber Optic Flat Drop Cable Slitter 0

Tag:

lc duplex connector,

multimode fiber connector ,

fiber optic cable connectors
