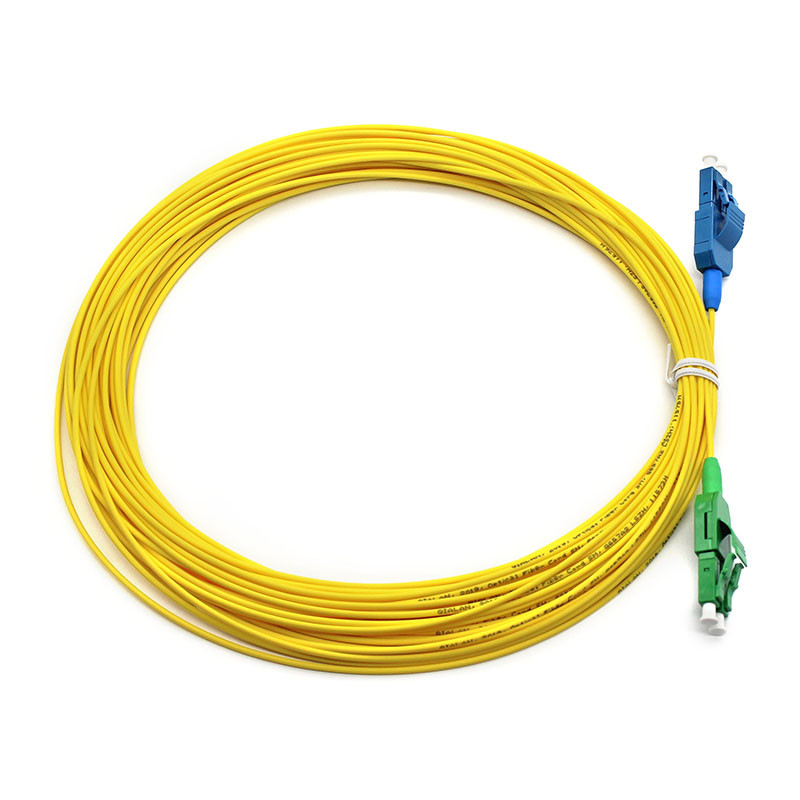

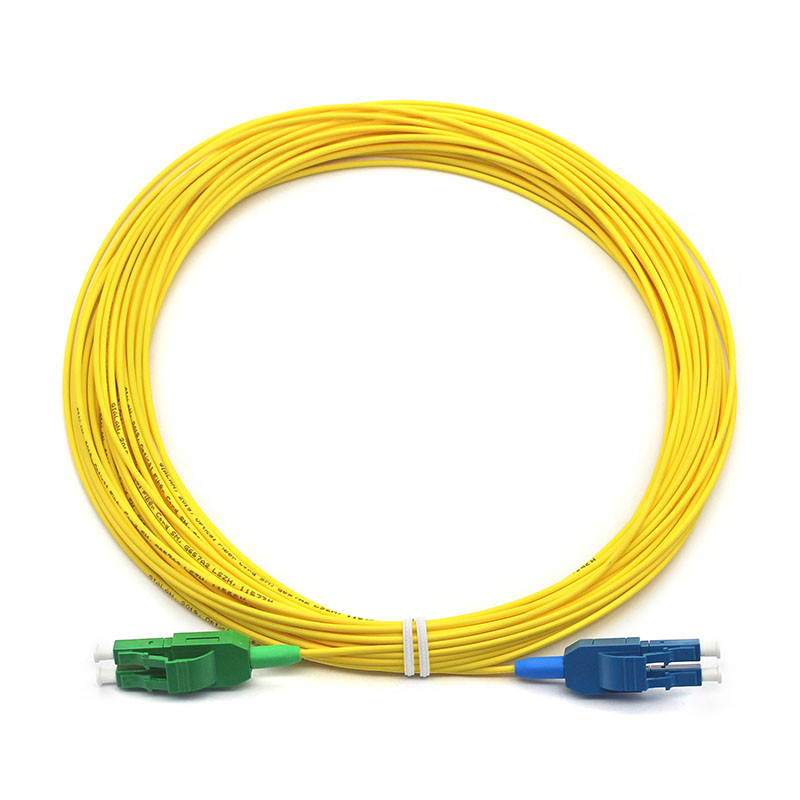

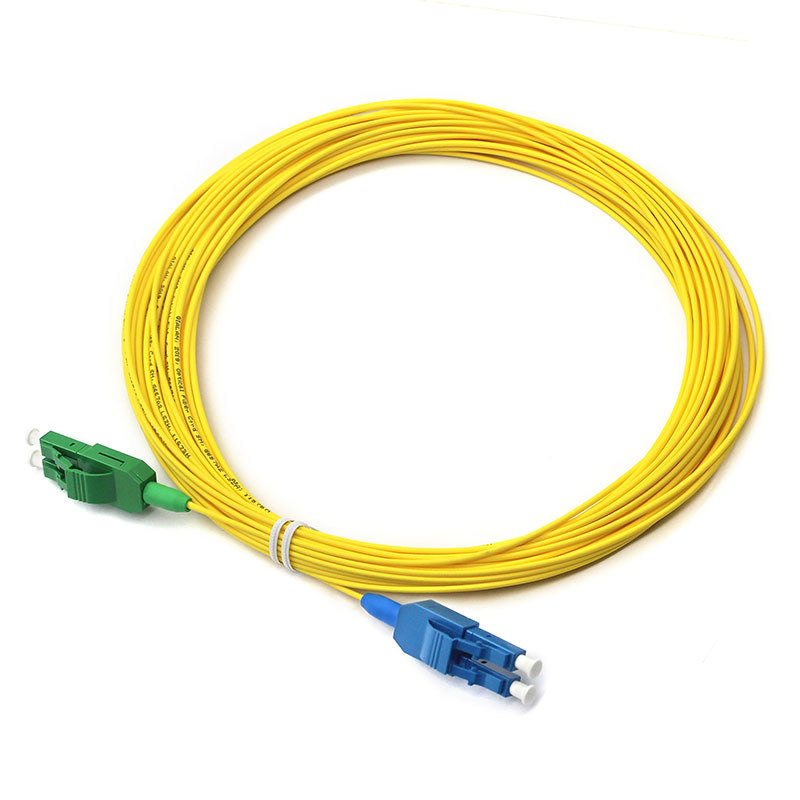

Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission

Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission
Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission
Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission

Large Image :  Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission

Product Details:
Place of Origin: China
Brand Name: DOWELL
Certification: CE
Model Number: DW-LAD-LUD-U
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission

Description
Mode Type: SM, MM Fiber Type: G652D/G657A
Jacket: PVC, LSZH Connector: SC, LC, FC, ST, E2000N, MTRJN, MPO
Length: Any Length Is Customizable Color: Yellow Or Cusomized
Highlight:

Telecommunications Lc Fiber Patch Cable

,

Duplex Single Mode Fiber Jumpers

,

Telecommunications Single Mode Fiber Jumpers

Duplex LC APC to LC UPC SM Uniboot Fiber Optic Patch Cord G652D

Fiber optic patch cords are essential components in modern communication networks, enabling high-speed, reliable, and efficient data

transmission.Their versatility and performance make them indispensable in data centers, telecom networks, and enterprise environments.

Specification:

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C
Termination Accessories
1.1 Optical Fiber: 900um buffer Singlemode (9/125um G.652D – Standard, G.655 or G.657A), or Multimode (50/125um or 62.5/125um) fibers. Refer to Fiber Properties & Specification Data Sheet for more details.
1.2 Aramid Yarn: Aramid yarn is laid over the cable core to serve as peripheral strength member.
1.3 Jacket : LSZH jacket is extruded over the aramid yarn.
1.4 Additional Outer Jacket: LSZH outer jacket is extruded over the duplex patch cable.

1.5 Outer Jacket Colour: Yellow for Ruggedized Duplex Singlemode (9/125um G.652D – Standard, G.655 or G.657A), Grey for Ruggedized Duplex Multimode (50/125um and 62.5/125um).

1.6 Inner Jacket Colour: Yellow and blue for Ruggedized Duplex Singlemode (9/125um G.652D – Standard, G.655 or G.657A), Red and blue for Ruggedized Duplex Multimode (50/125um and 62.5/125um).

Application:

2.1 Data Centers: Connecting servers, switches, and storage devices.

2.2 Telecommunications: Linking network equipment in telecom networks.

2.3 Local Area Networks (LANs): Interconnecting devices within a building or campus.

2.4 Fiber to the Home (FTTH): Connecting residential broadband networks.

2.5 Broadcasting: Transmitting high-definition video signals.

2.6 Industrial Networks: Enabling communication in industrial control systems.

Package:

1. Plastic bag

Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission 0

2. Inner Box

Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission 1

Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission 2

3. Outer Box

Versatile Fiber Optic Patch Cord LC APC to LC UPC SM Uniboot G652D for High-Speed Data Transmission 3

Tag:

fibre patch leads,

fiber jumper cables,

multimode patch cable
