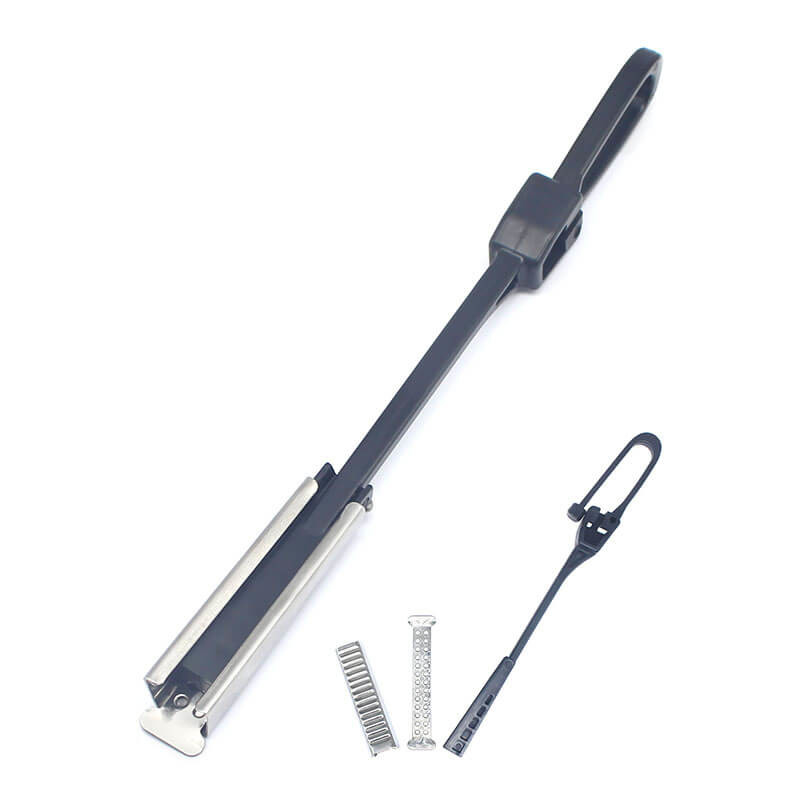

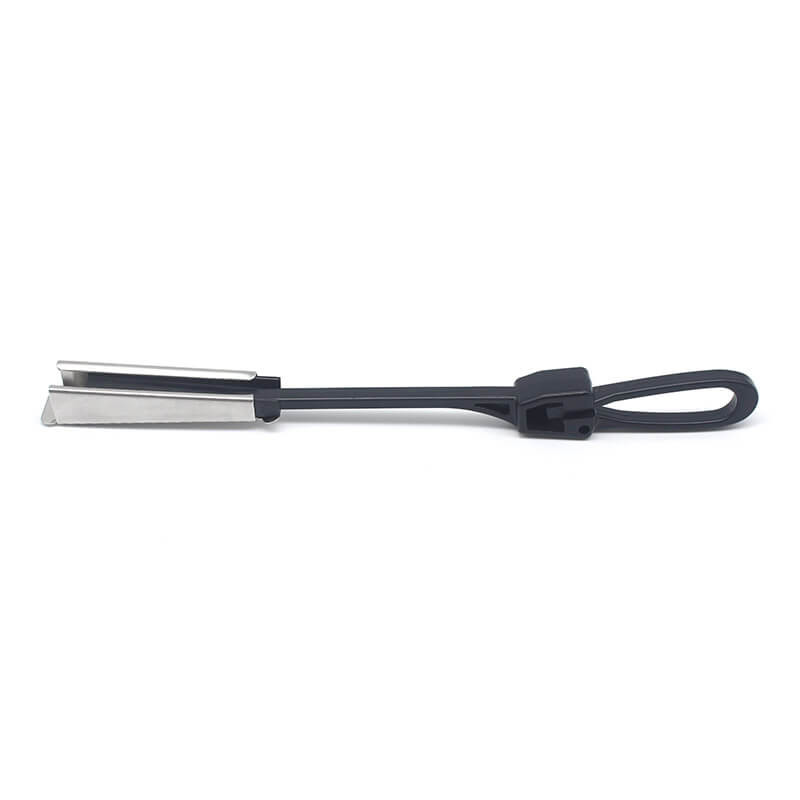

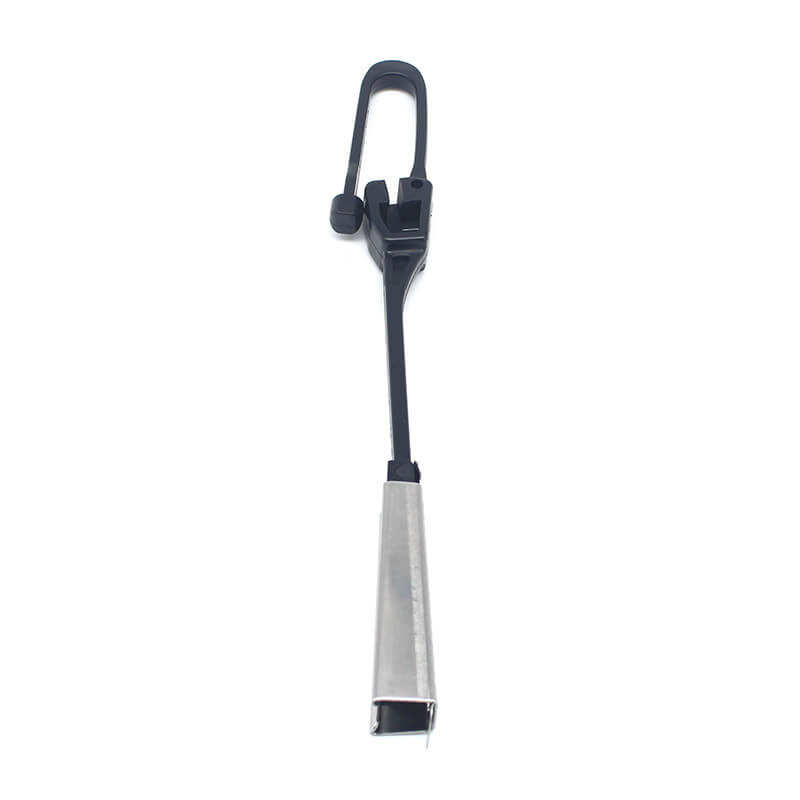

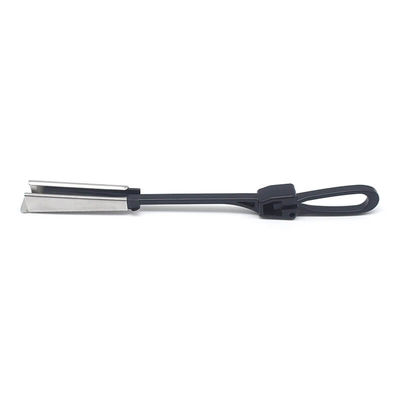

Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised

Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised
Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised
Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised

Large Image :  Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised

Product Details:
Place of Origin: China,Zhejiang
Brand Name: DOWELL
Model Number: DW-1073
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000PCS Per 7 Days
Contact Now

Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised

Description
MBL: 1.0 KN Range: <70m
Weight: 40g Cable Size: 4x8mm Max.
Material: Stainless Steel/UV Resistant Cable Type: Flat Fiber Optic Cable
Highlight:

PP Fiber Drop Wire Clamp

,

PP fiber optic drop wire clamp

,

Wedge shaped Fiber Drop Wire Clamp

PP Fiber Optic Wedge Drop Wire Clamp For Flat Fiber Cable

This clamp is designed for suspension of flat fiber optic cable 4x8mm size. Fiber optic cable clamp applies outdoor, on fiber optic cable spans, which do not exceed 70 meters of house installation with aerial fiber optic cable, FTTH fiber optic cables. It is equipped with perforated shim, which increase the tension load on fiber optic drop. The body made of stainless steel, which increase the durability of usage of product. This clamp has plastic wire bail, which allows installation on closed hook brackets, other drop wire clamps and hardware.

Specification:

Material Stainless Steel & UV Resistant Thermoplastic Cable Type Flat fiber optic cable
Shape Wedge-shaped body with tail Shim Style Dimpled shim
Cable Size 4x8mm Max. MBL 1.0 kN
Range <70m Weight 40g
Installation:
1.1 Hang the corner of the clamp on the post or front bracket and lock the handle.
1.2 Place the flat optical cable in the throat of clamp body.
1.3 Position the spacer on the cable into the body, bossings to cable side.
1.4 Slide the body along the cable until the corner is inserted into the body and hooks on the cable.

Application:

2.1 Used for securing many kinds of cables, such as fiber optic cables.
2.2 Used to relieve strain on messenger wire.
2.3 Used to support telephone drop wire at span clamps, drive hooks and various drop attachments.
Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised 0
Our package:
Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised 1
Production Flow:
Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised 2
Related Products:
Fiber Drop Wire Suspension Clamp Flat Wedge shaped securing Galvanised 3
