Product Details:
|

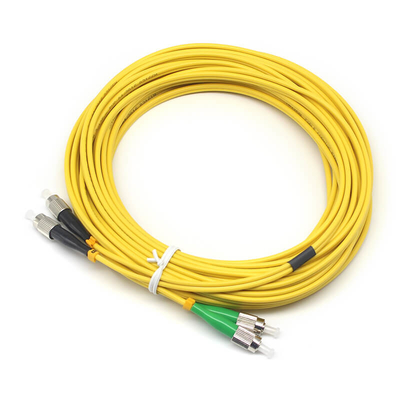

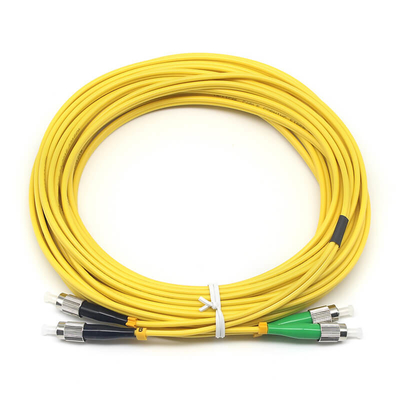

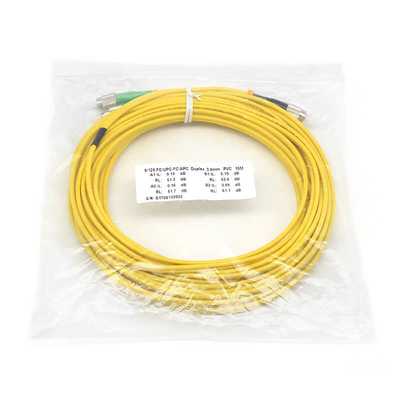

| Type: | Fiber Optic Patch Cord | Use: | FTTP,CATV |
|---|---|---|---|
| Repeatability: | Additional Loss< 0.1, Return Loss< 5 | Interchangeability: | Additional Loss< 0.1, Return Loss< 5 |
| Connection Times: | >1000 | Operating Temperature: | -40 ~ +75 |
| Storage Temperature: | -40 ~ +85 | Warranty: | 1 Year |
| No. Of Fiber: | 2. | Port: | Ningbo |
|
Parameter
|
Unit
|
Mode
Type |
PC
|
UPC
|
APC
|
|||
|
Insertion Loss
|
dB
|
SM
|
<0.3
|
<0.3
|
<0.3
|
|||
|
|
|
MM
|
<0.3
|
<0.3
|
|
|||
|
Return Loss
|
dB
|
SM
|
>50
|
>50
|
>60
|
|||
|
|
|
MM
|
>35
|
>35
|
|
|||
|
Repeatability
|
dB
|
Additional loss< 0.1, return loss< 5
|
|
|
|
|||
|
Interchangeability
|
dB
|
Additional loss< 0.1, return loss< 5
|
|
|
|
|||
|
Connection Times
|
times
|
>1000
|
|
|
|
|||
|
Operating Temperature
|
°C
|
-40 ~ +75
|
|
|
|
|||
|
Storage Temperature
|
°C
|
-40 ~ +85
|
|
|
|
|||
|
Test Item
|
Test Condition and Test Result
|
|
Wet-resistance
|
Condition: under temperature:85°C, relative humidity 85% for 14days.
Result: insertion losss0.1dB |
|
Temperature Change
|
Condition: under temperature -40°C~+75°C, relative humidity 10 % -80 % , 42 times repetition for 14days.
Result: insertion losss0.1dB |
|
Put in Water
|
Condition: under temperature 43C, PH5.5 for 7days
Result: insertion losss0.1dB |
|
Vibrancy
|
Condition: Swing1.52mm, frequency 10Hz~55Hz, X, Y, Z three directions:2 hours
Result: insertion losss0.1dB |
|
Load Bend
|
Condition: 0.454kg load, 100 circles
Result: insertion losss0.1dB |
|
Load Torsion
|
Condition: 0.454kgload, 10 circles
Result: insertion loss s0.1dB |
|
Tensibility
|
Condition: 0.23kg pull (bare fiber), 1.0kg (with shell)
Result: insertions0.1dB |
|
Strike
|
Condition: High 1.8m, three directions ,8 in each direction
Result: insertion losss0.1dB |
|
Reference Standard
|
BELLCORE TA-NWT-001209, IEC, GR-326-CORE standard
|
