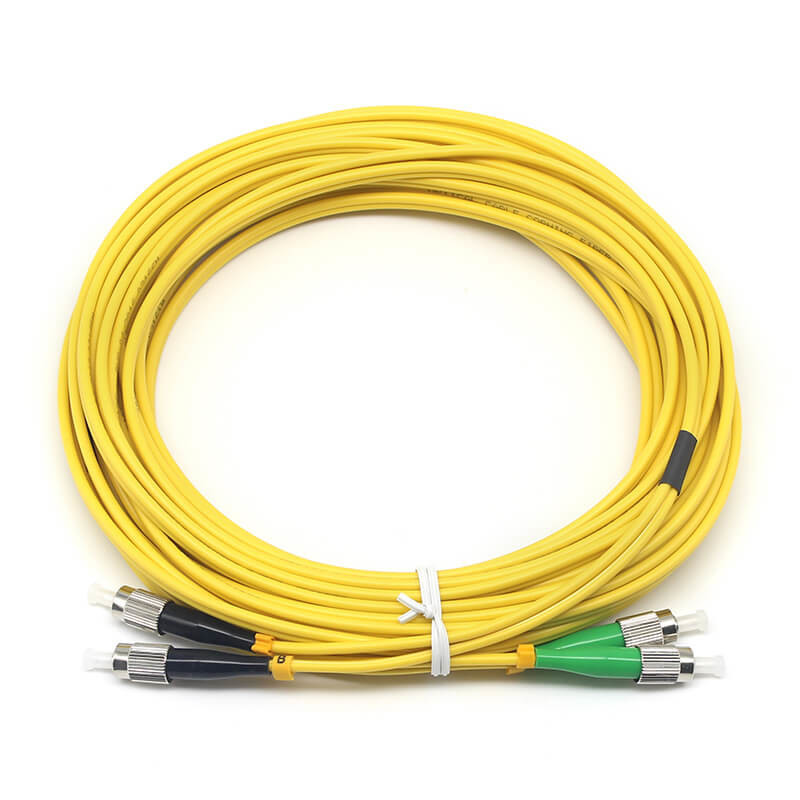

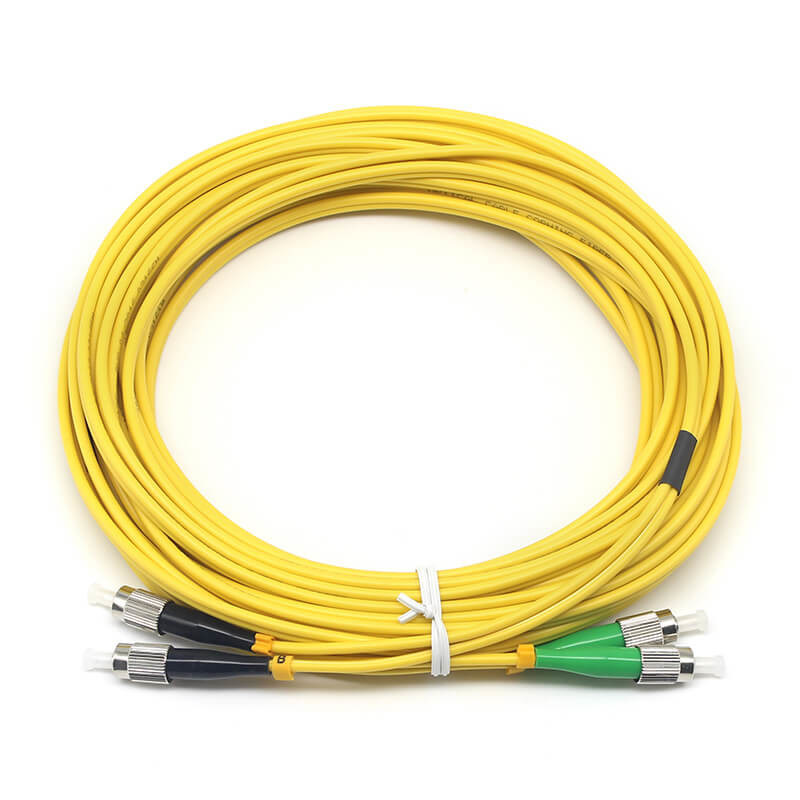

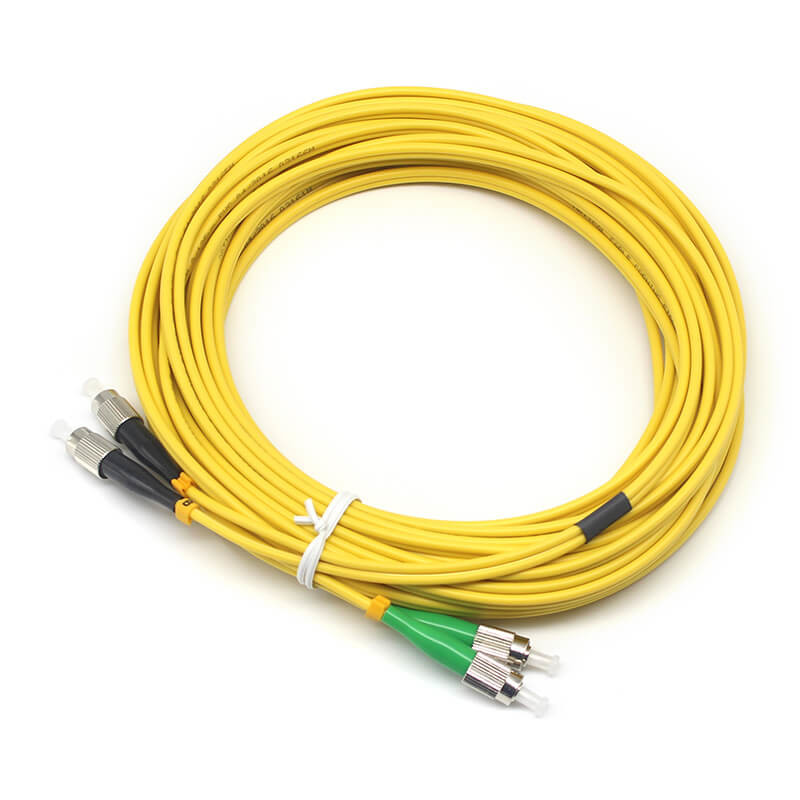

PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility

PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility
PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility
PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility

Large Image :  PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Model Number: DW-FAD-FUD
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Packaging Details: Normal Package
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility

Description
Mode Type: SM; MM Connector Type: FC SC LC ST E2000N MTRJN MPO
Highlight:

Wet Resistance Fiber Optic Patch Cord

,

Wet Resistance

,

PVC lc lc fibre patch leads

PVC Duplex FC APC to FC UPC SM Fiber Optic Patch Cord

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C
Test Item Test Condition and Test Result
Wet-resistance Condition: under temperature:85°C, relative humidity 85% for 14days.
Result: insertion losss0.1dB
Temperature Change Condition: under temperature -40C-+75C, relative humidity 10 % -80 % , 42 times repetition for 14days.
Result: insertion losss0.1dB
Put in Water Condition: under temperature 43C, PH5.5 for 7days
Result: insertion losss0.1dB
Vibrancy Condition: Swing1.52mm, frequency 10Hz~55Hz, X, Y, Z three directions:2 hours
Result: insertion losss0.1dB
Load Bend Condition: 0.454kg load, 100 circles
Result: insertion losss0.1dB
Load Torsion Condition: 0.454kgload, 10 circles
Result: insertion loss s0.1dB
Tensibility Condition: 0.23kg pull (bare fiber), 1.0kg (with shell)
Result: insertions0.1dB
Strike Condition: High 1.8m, three directions ,8 in each direction
Result: insertion losss0.1dB
Reference Standard BELLCORE TA-NWT-001209, IEC, GR-326-CORE standard

Package

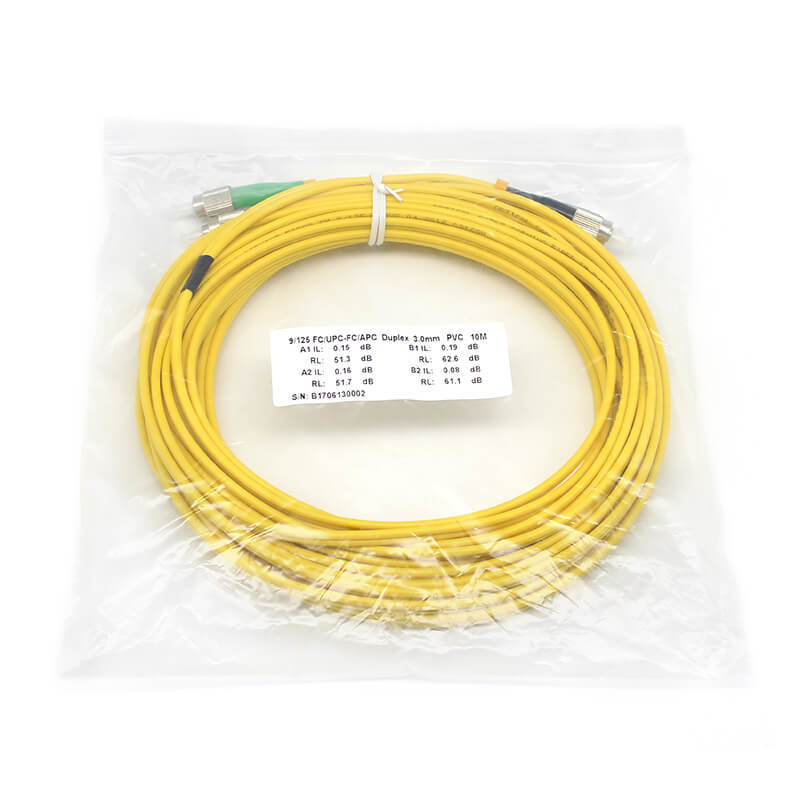

1. Plastic bag

PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility 0

2. Inner Box

PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility 1

PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility 2

3. Outer Box

PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility 3

Application

1. Telecommunication Network
2. Fiber Broad Band Network
3. CATV system
4. LAN and WAN system
5. FTTP

PVC Fiber Optic Patch Cord Wet Resistance FC APC To FC UPC Tensibility 4
