Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System

Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System
Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System
Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System

Large Image :  Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System

Product Details:
Place of Origin: Zhejiang, China
Brand Name: DOWELL
Certification: CE
Model Number: DW-LPD-JPD-M1
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Delivery Time: 7-15 Days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000 PCS Per 7 Days
Contact Now

Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System

Description
Mode Type: SM, MM Fiber Type: G652D/G657A
Connector Type: SC, LC, FC, ST, E2000N, MTRJN, MPO Jacket: PVC, LSZH
Highlight:

OM1 Mpo Patch Cable

,

OM1 Sc To Sc Patch Cord

,

MM Mpo Patch Cable

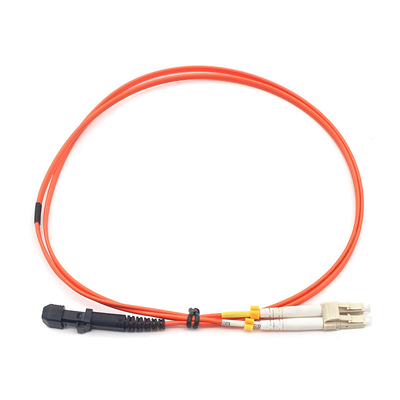

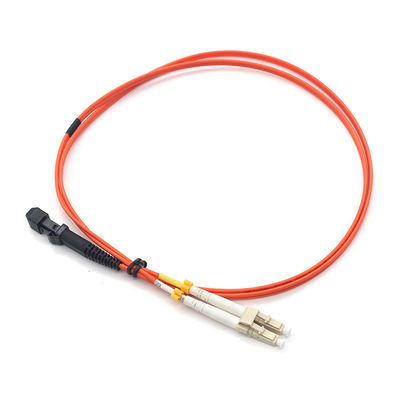

Duplex LC PC to MTRJ PC OM1 MM Fiber Optic Patch Cord

Fiber Optic Patchcords are components to link equipments and components in fiber optic network. There are many types according to different types of fiber optic connector including FC SV SC LC ST E2000N MTRJN MPO etc. with single mode(9/125um) and multimode (50/125 or 62.5/125). Cable jacket material can be PVC, LSZH; OFNR, OFNP etc. There are simplex, duplex, multi fibers, Ribbon fan out and bundle fiber.

Specification

Parameter Unit Mode PC UPC APC
Type
Insertion Loss dB SM <0.3 <0.3 <0.3
MM <0.3 <0.3
Return Loss dB SM >50 >50 >60
MM >35 >35
Repeatability dB Additional loss<0.1db, return loss< 5 dB
Interchangeability dB Additional loss<0.1db, return loss< 5 dB
Connection Times times >1000
Operating Temperature °C -40 C- +75 C
Storage Temperature °C -40 C- +85 C

Package

1. Plastic bag

Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System 0

2. Inner Box

Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System 1

3. Outer Box

Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System 2

Application

1. Telecommunication Network
2. Fiber Broad Band Network
3. CATV system
4. LAN and WAN system
5. FTTP

Duplex Mpo Patch Cable OM1 MM Sc To Sc Patch Cord For CATV System 3
