Product Details:
|
| Mode Type: | SM, MM | Jacket: | PVC, LSZH |
|---|---|---|---|
| Fiber Type: | G652D/G657A | Length: | Any Length Is Customizable, |
| Connector Type: | SC, LC, FC, ST, E2000N, MTRJN, MPO | Fiber Type: | Simplex And Duplex, G652D, G655, Anything, SM Or MM |
| Highlight: | MTRJ Sc Apc Patch Cord,MTRJ fiber patch cables,OM1 Sc Apc Patch Cord |
||

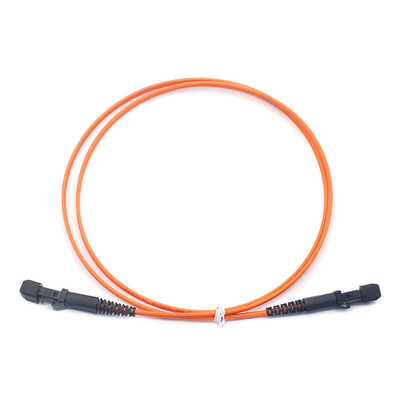

FTTH Duplex MTRJ PC to MTRJ PC OM1 MM Fiber Optic Patch Cord
Speicification:
| Parameter | Unit | Mode | PC | UPC | APC |
| Type | |||||
| Insertion Loss | dB | SM | <0.3 | <0.3 | <0.3 |
| MM | <0.3 | <0.3 | |||
| Return Loss | dB | SM | >50 | >50 | >60 |
| MM | >35 | >35 | |||
| Repeatability | dB | Additional loss<0.1db, return loss< 5 dB | |||
| Interchangeability | dB | Additional loss<0.1db, return loss< 5 dB | |||
| Connection Times | times | >1000 | |||
| Operating Temperature | °C | -40 C- +75 C | |||
| Storage Temperature | °C | -40 C- +85 C | |||
Application:
1.1 Local Area Networks (LANs): Connecting devices within a building or campus.
1.2 Data Centers: High-speed connections between servers, switches, and storage devices.
1.3 Enterprise Networks: Office networks and internal communication systems.
1.4 Video Surveillance: Transmitting high-quality video signals over short distances.
1.5 Industrial Networks: Short-distance control and monitoring systems.

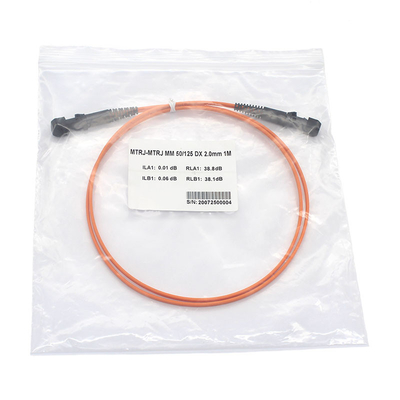

Package:
1. Plastic bag
![]()
2. Inner Box
![]()
![]()
3. Outer Box
![]()
